2100 Series Field Cultivator

2100 Series Field Cultivator

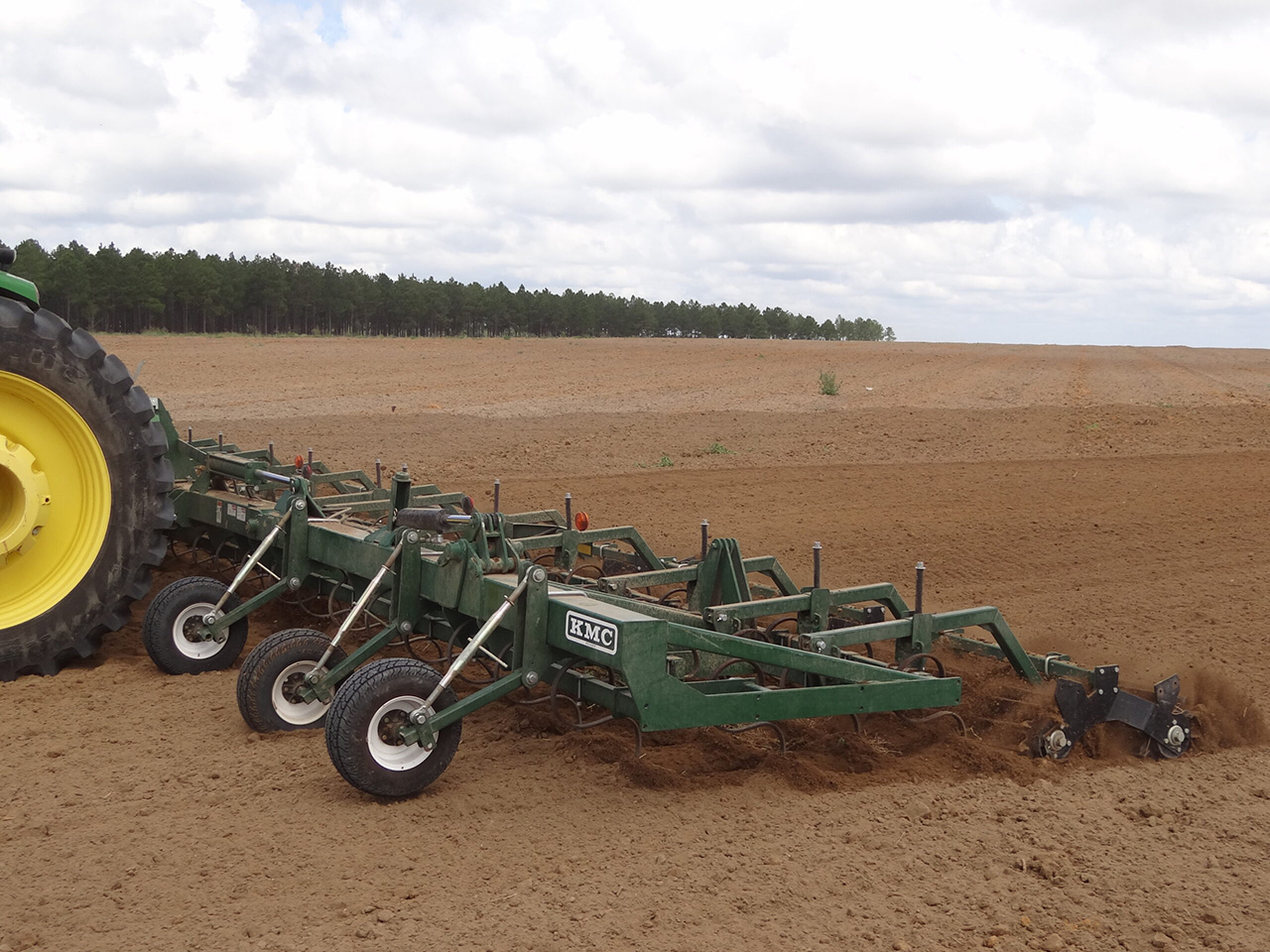

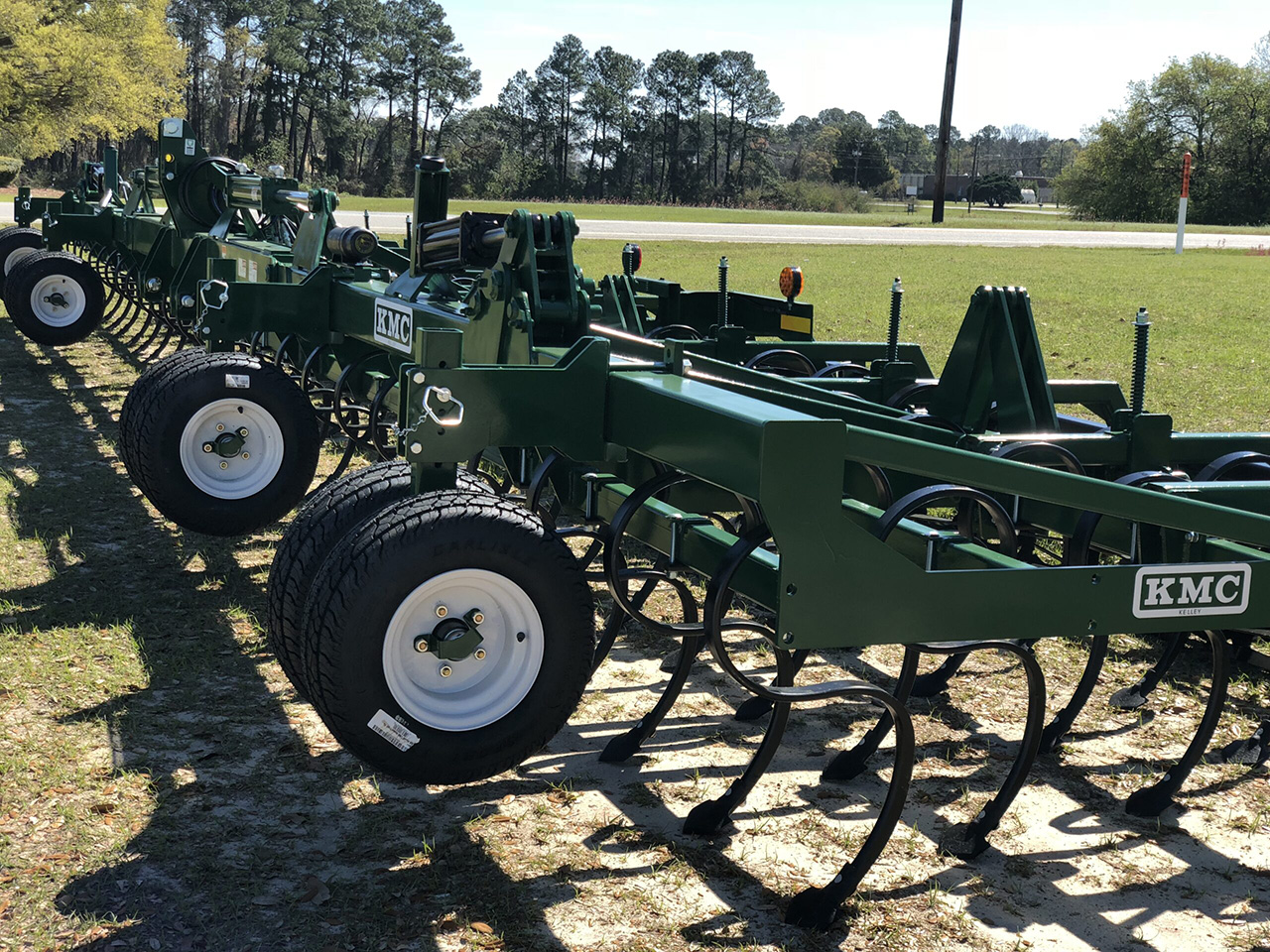

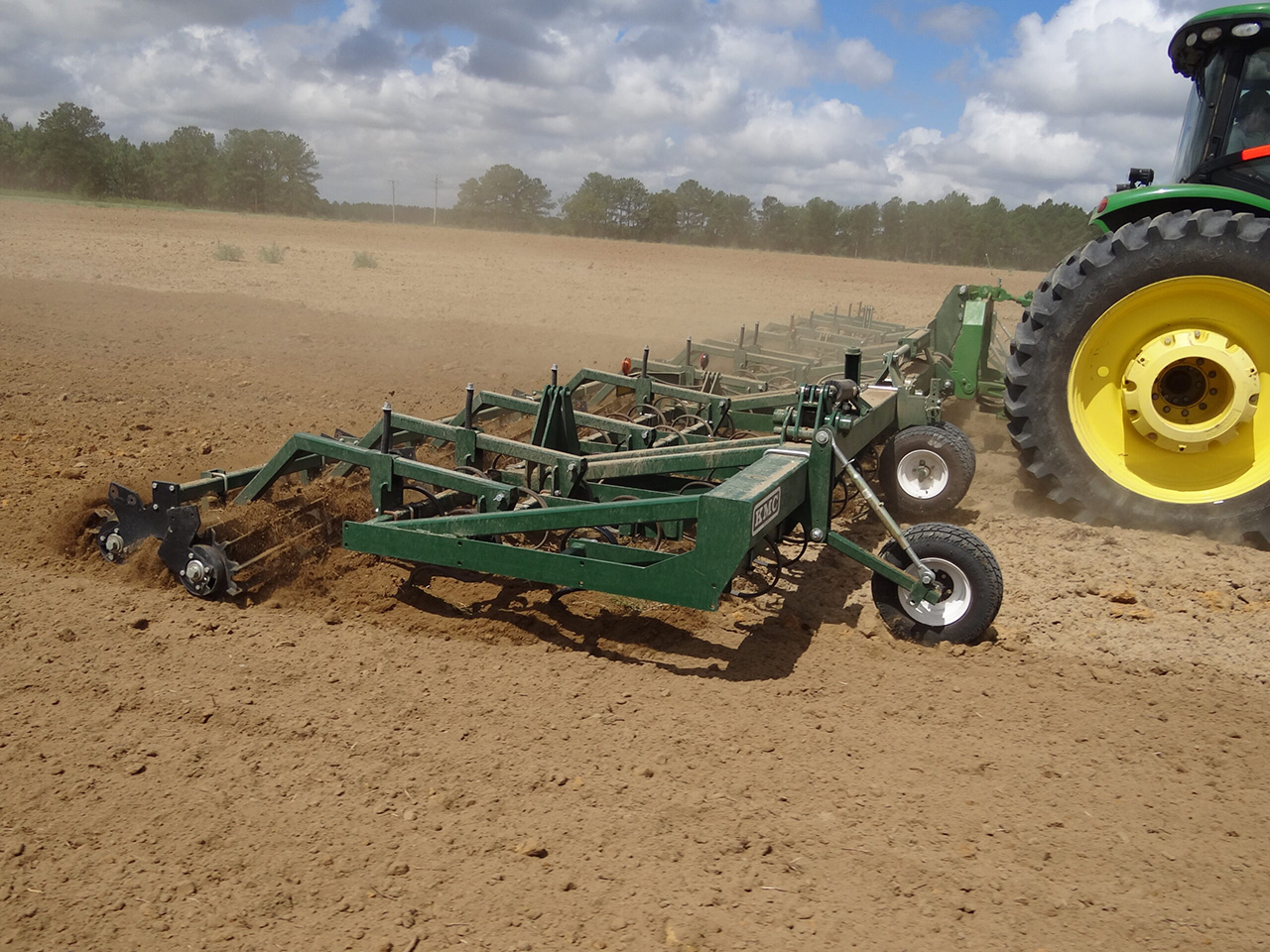

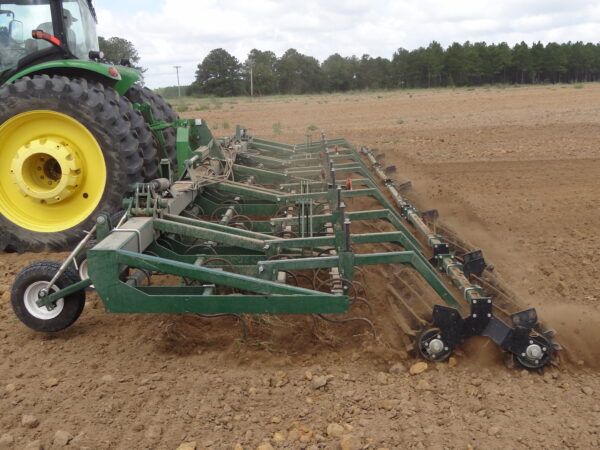

The 2100 Series KMC Field Cultivator is a secondary tillage tool with plenty of performance capacity to make seedbed conditioning and incorporation fast, efficient, and less expensive.  Our four bar model is heavy-duty in design and is equipped with a 3-point hitch for Category II, III, and quick hitch. The 5-bar basic frame consists of a 10’ center section with bolt-on extensions added to reach the designated width.  This piece of equipment is designed for high-speed operation with up to 25% less horsepower requirements than other incorporation methods.  It features more efficient S-tine placement for greater soil mixing activity and more uniform blending of chemicals in soil for improved herbicide performance.  The dual rolling crumblers create an ultra-smooth seedbed that levels and smooths the soil without leaving ridges.

Description

The 2100 Series KMC Field Cultivator is a secondary tillage tool with plenty of performance capacity to make seedbed conditioning and incorporation fast, efficient, and less expensive.  Our four bar model is heavy-duty in design and is equipped with a 3-point hitch for Category II, III, and quick hitch. The 5-bar basic frame consists of a 10’ center section with bolt-on extensions added to reach the designated width.  This piece of equipment is designed for high-speed operation with up to 25% less horsepower requirements than other incorporation methods.  It features more efficient S-tine placement for greater soil mixing activity and more uniform blending of chemicals in soil for improved herbicide performance.  The dual rolling crumblers create an ultra-smooth seedbed that levels and smooths the soil without leaving ridges.

Key Features
  • Rear walking tandem crumbler attachments (standard)
  • 2 3/4″ sweeps with attaching hardware

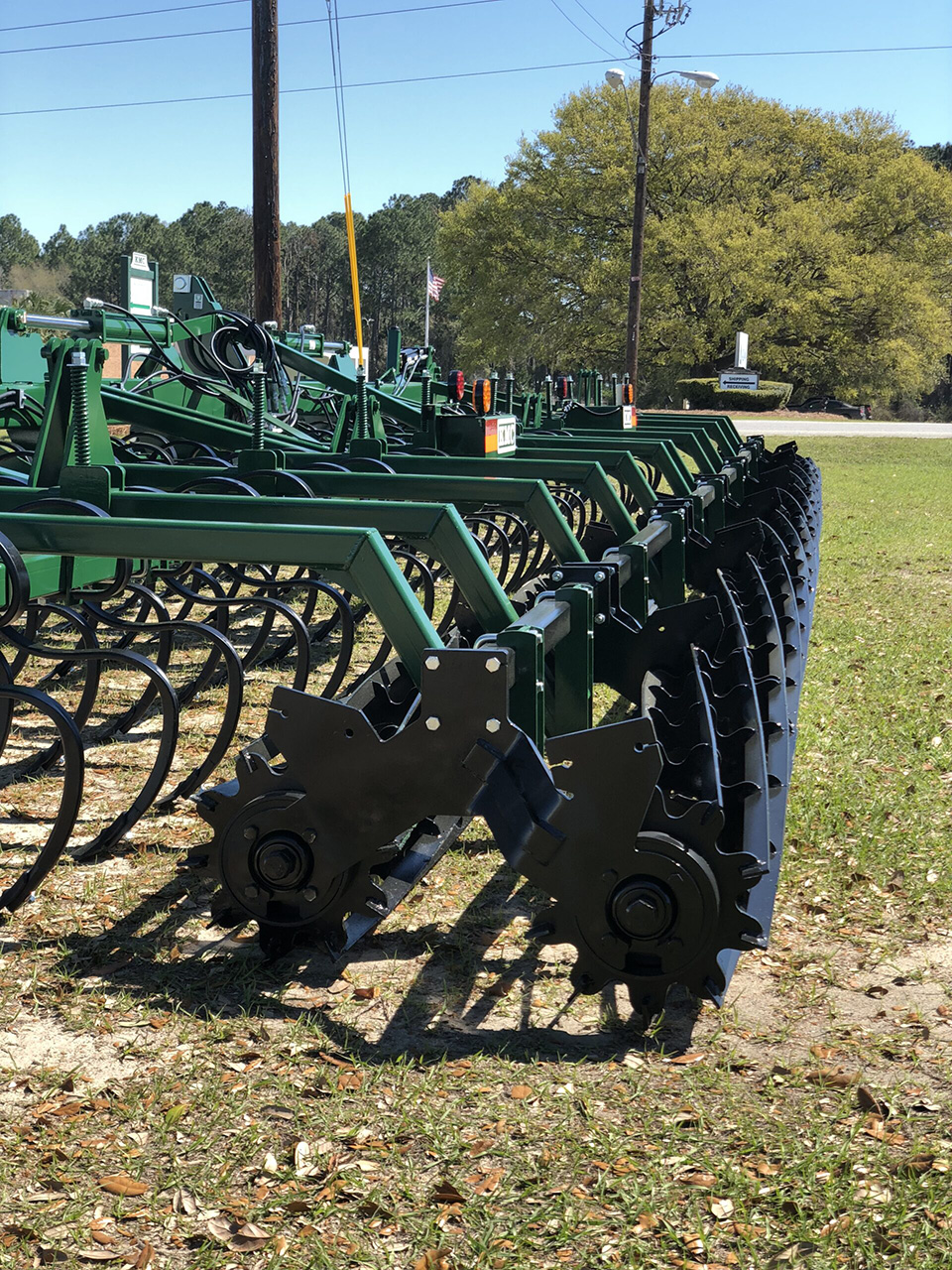

  • Heavy-duty crumbler attachments
  • Regreasable tri-ply sealed bearings
  • Special linkage design permits crumblers to have more floating action on unlevel soils
  • Excellent heavy-duty quality

Benefits

  • Saves time
  • High-speed

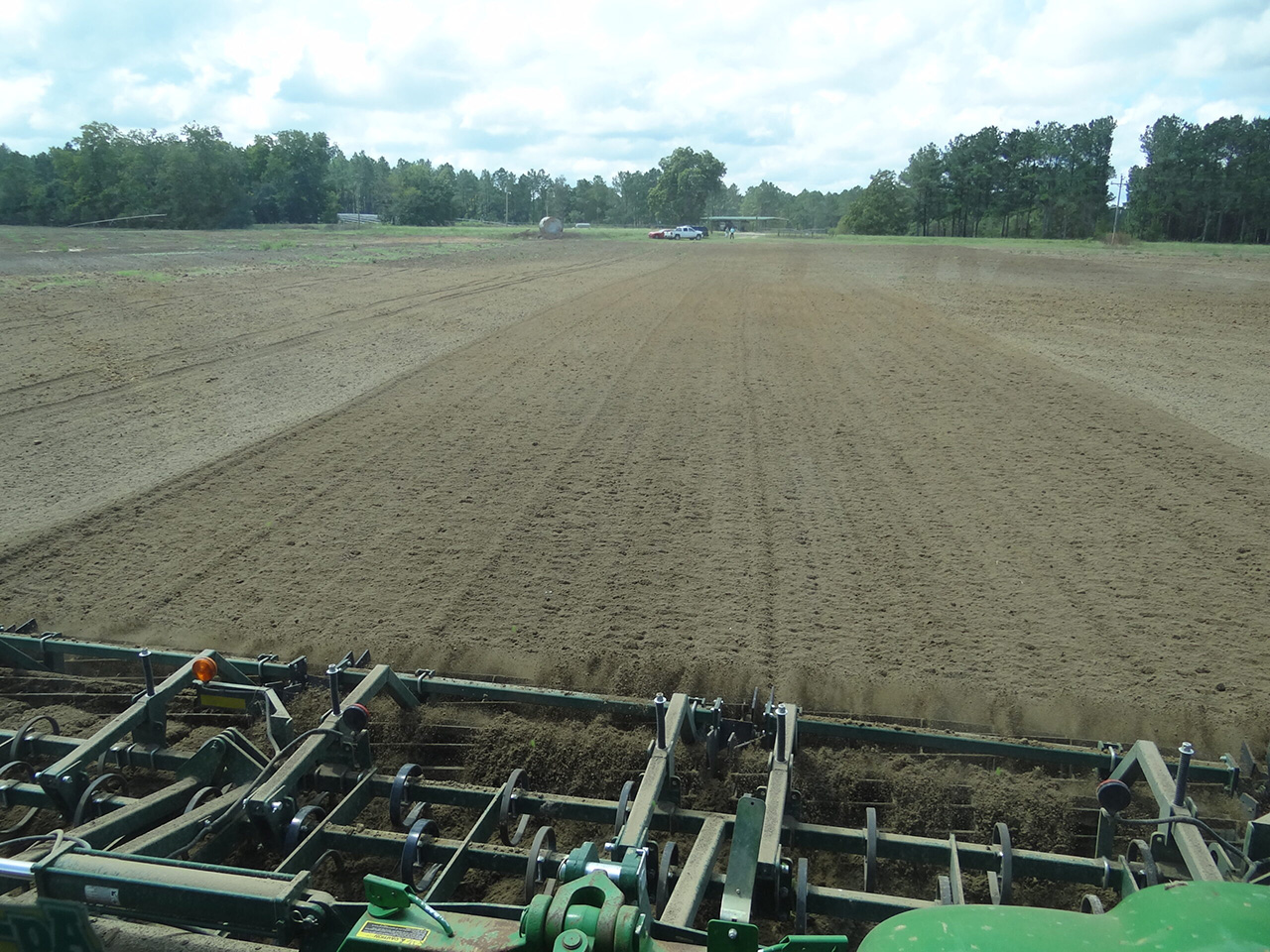

  • Level seedbed preparation to eliminate planter bounce

Available Models

Rigid Models (Lift Type)

Description

Weight (IBS)

21-060-FCR-LT1

5' (60") wide unit with 15 tines

976

21-076-FCR-LT1

6'4" (76") wide unit with 19 tines

1,027

21-108-FCR-LT2

9' (108") wide unit with 27 tines

1,607

21-148-FCR-LT2

12'4" (148") wide unit with 37 tines

1,955

21-148-FCR-LT3

12'4" (148") wide unit with 37 tines

2,095

21-172-FCR-LT2

14'4" (172") wide unit with 43 tines

2,145

21-172-FCR-LT3

14'4" (172") wide unit with 43 tines

2,256

21-188-FCR-LT3

15'8" (188") wide unit with 47 tines

2,435

21-212-FCR-LT3

17'8" (212") wide unit with 53 tines

2,685

21-236-FCR-LT3

12'8" (236") wide unit with59 tines

2,893

21-236-FCR-LT4

12'8" (236") wide unit with59 tines

2,999

Hydraulic Folding (Lift Type)

Description

Weight (IBS)

21-200-FFC-LT3

16'8" (200") Hydraulic Folding Lift Type with 51 tines

3,122

21-236-FFC-LT4

19'8" (236") Hydraulic Folding Lift Type with 59 tines

3,551

21-260-FFC-LT4

21'8" (260") Hydraulic Folding Lift Type with 65 tines

3,676

21-276-FFC-LT4

23' (276") Hydraulic Folding Lift Type with 69 tines

3,926

21-316-FFC-LT4

26'3" (316") Hydraulic Folding Lift Type with 79 tines

4,184

21-236-FFC-PT4

19'8" (236") Hydraulic Folding Lift Type with 59 tines

4,112

21-260-FFC-PT4

21'8" (260") Hydraulic Folding Lift Type with 65 tines

4,235

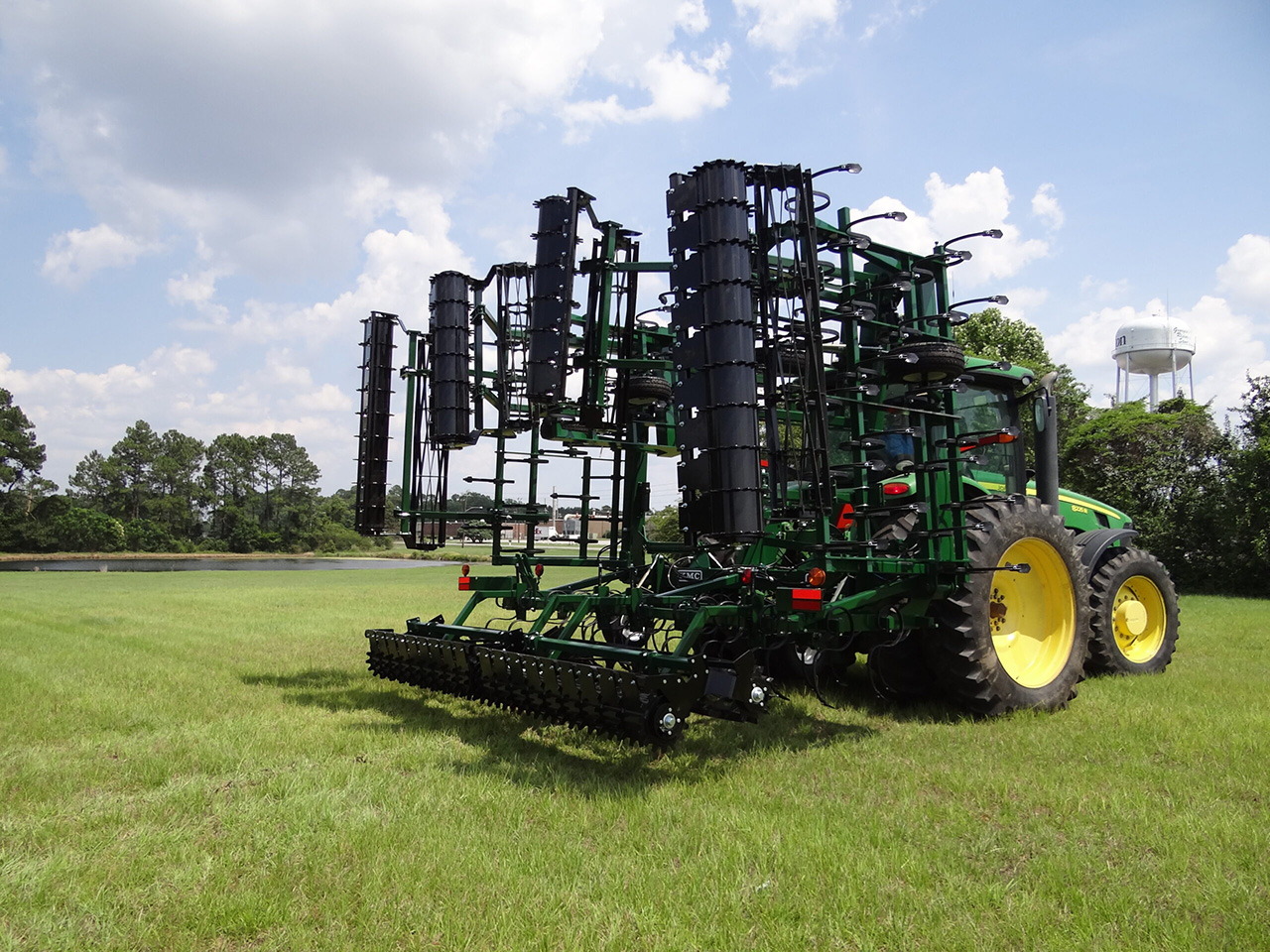

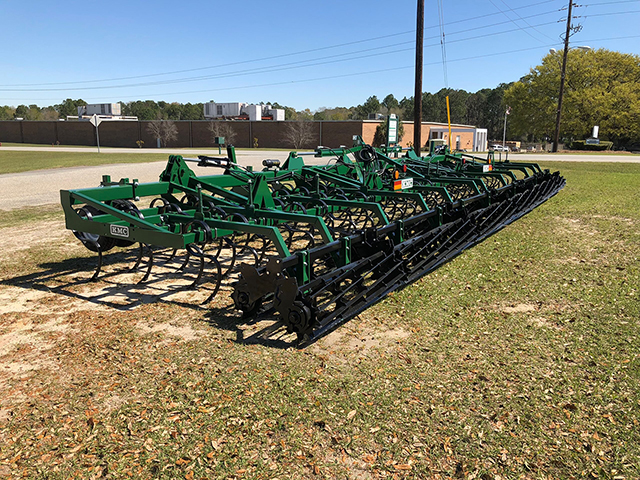

Double Folding (Lift Type)

Description

Weight (lBS)

21-324-FC-LT4

27’ (324”) hydraulic folding lift-type with 73 tines

21-445-DFFC-LT6

37’1” (445”) hydraulic folding lift-type with 99 tines

21-472-DFFC-LT6

39’4” (472”) hydraulic folding lift-type with 105 tines

21-490-DFFC-LT6

40’10” (490”) hydraulic folding lift-type with 109 tines
