Phillips Rotary Harrow

Phillips Rotary Harrow

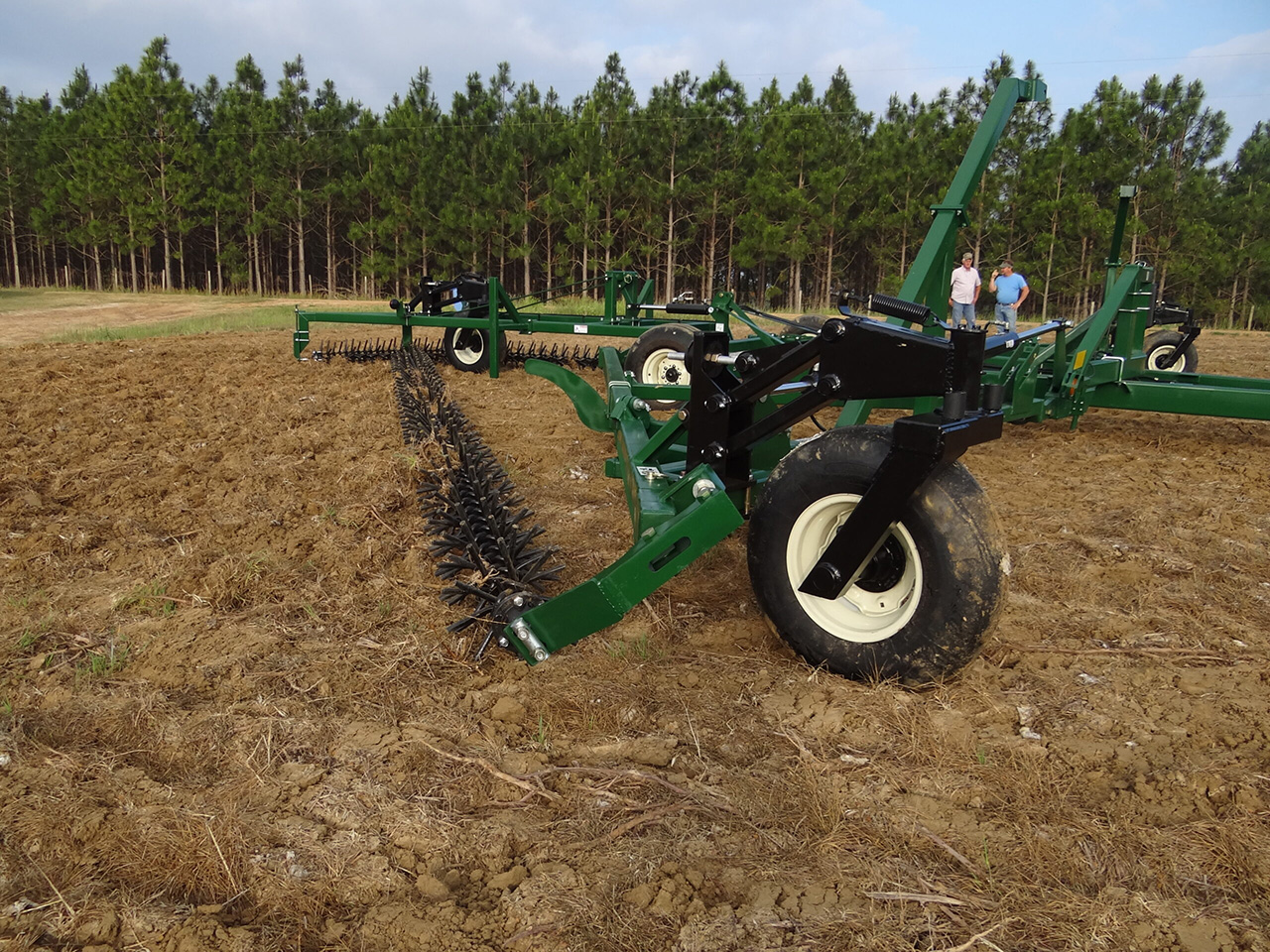

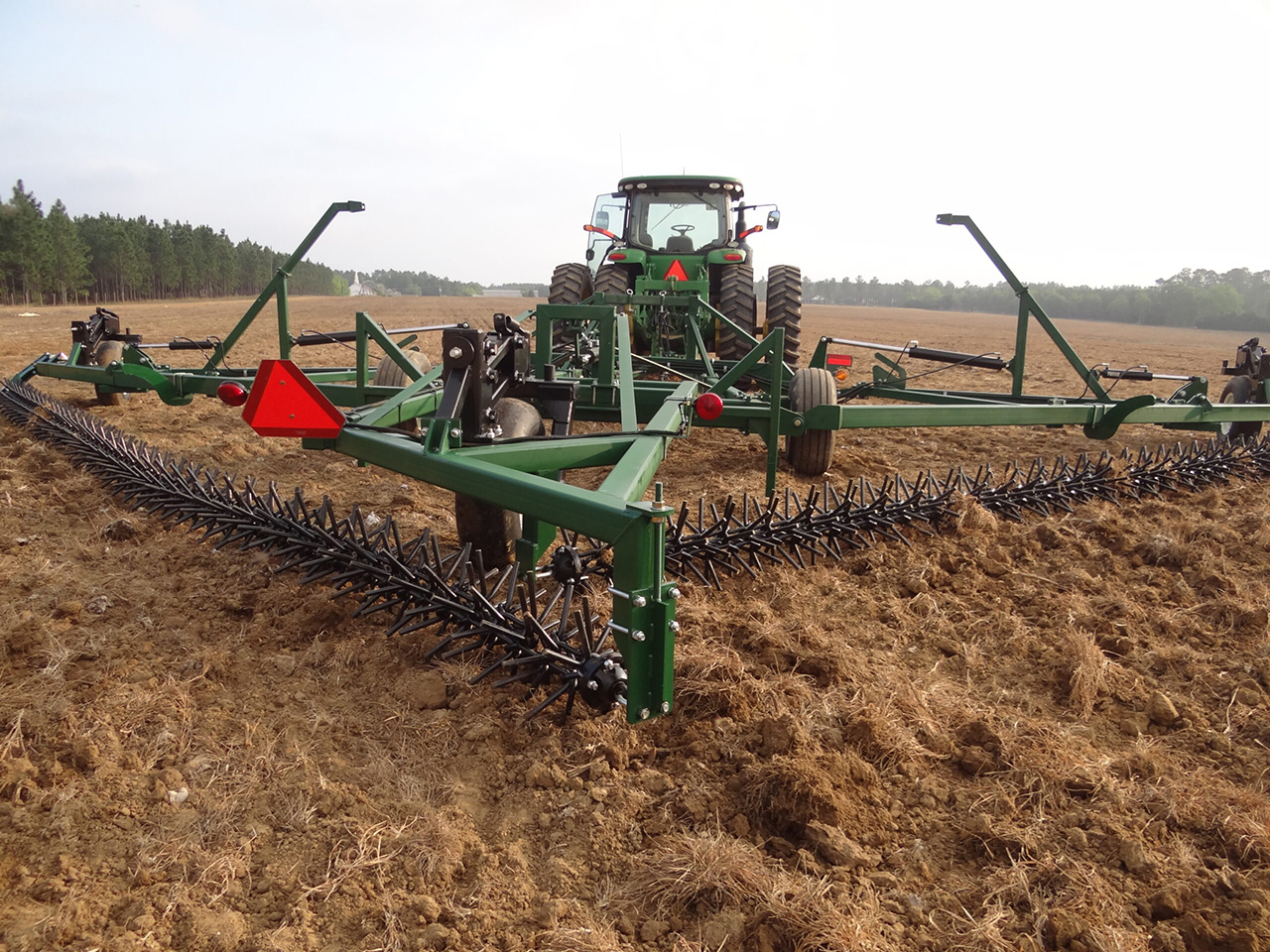

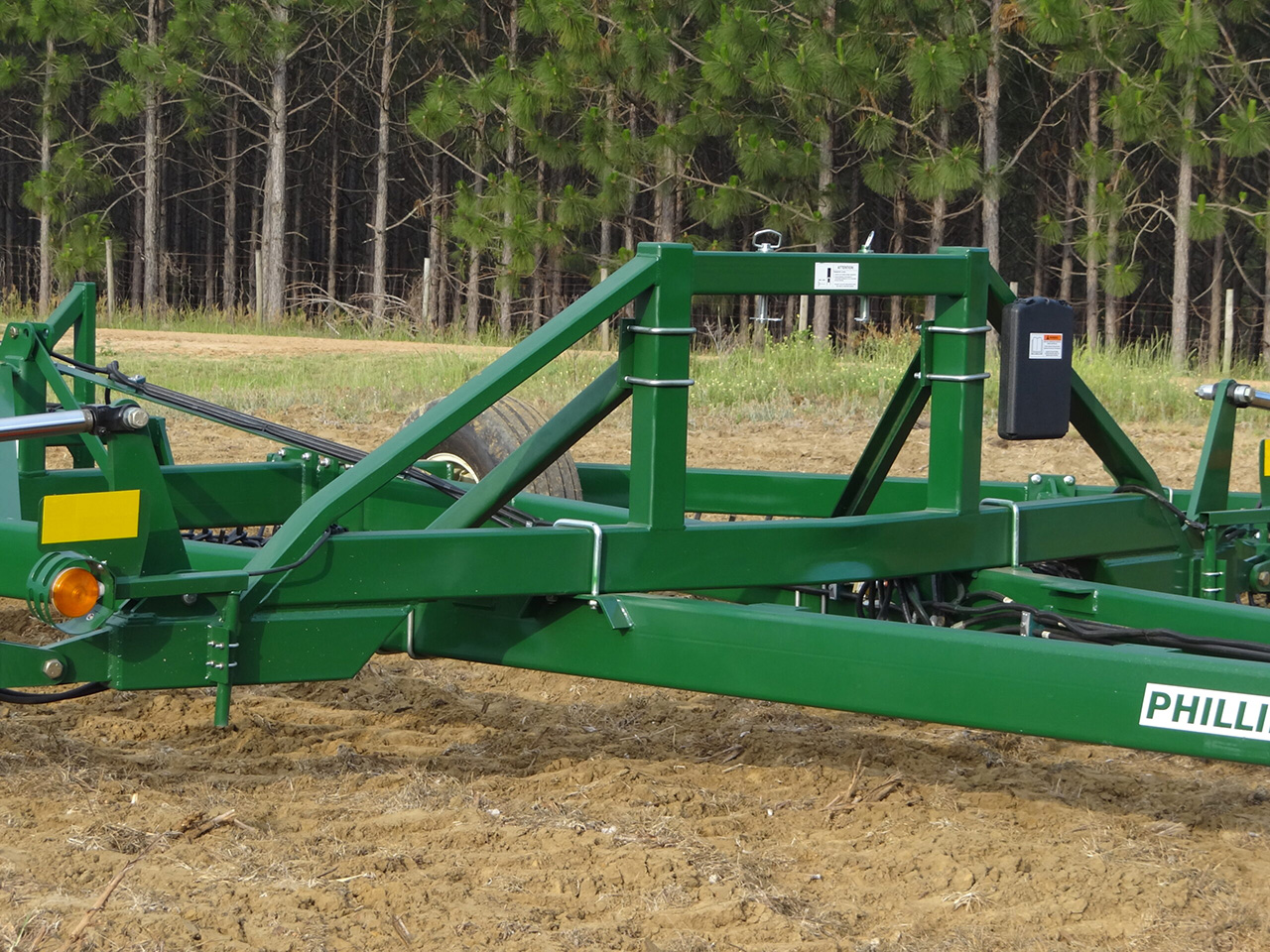

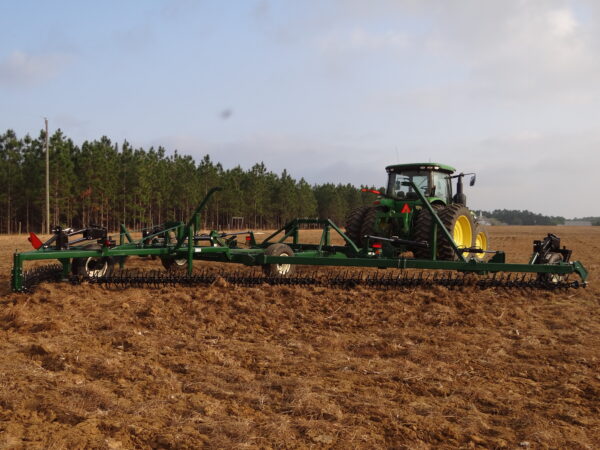

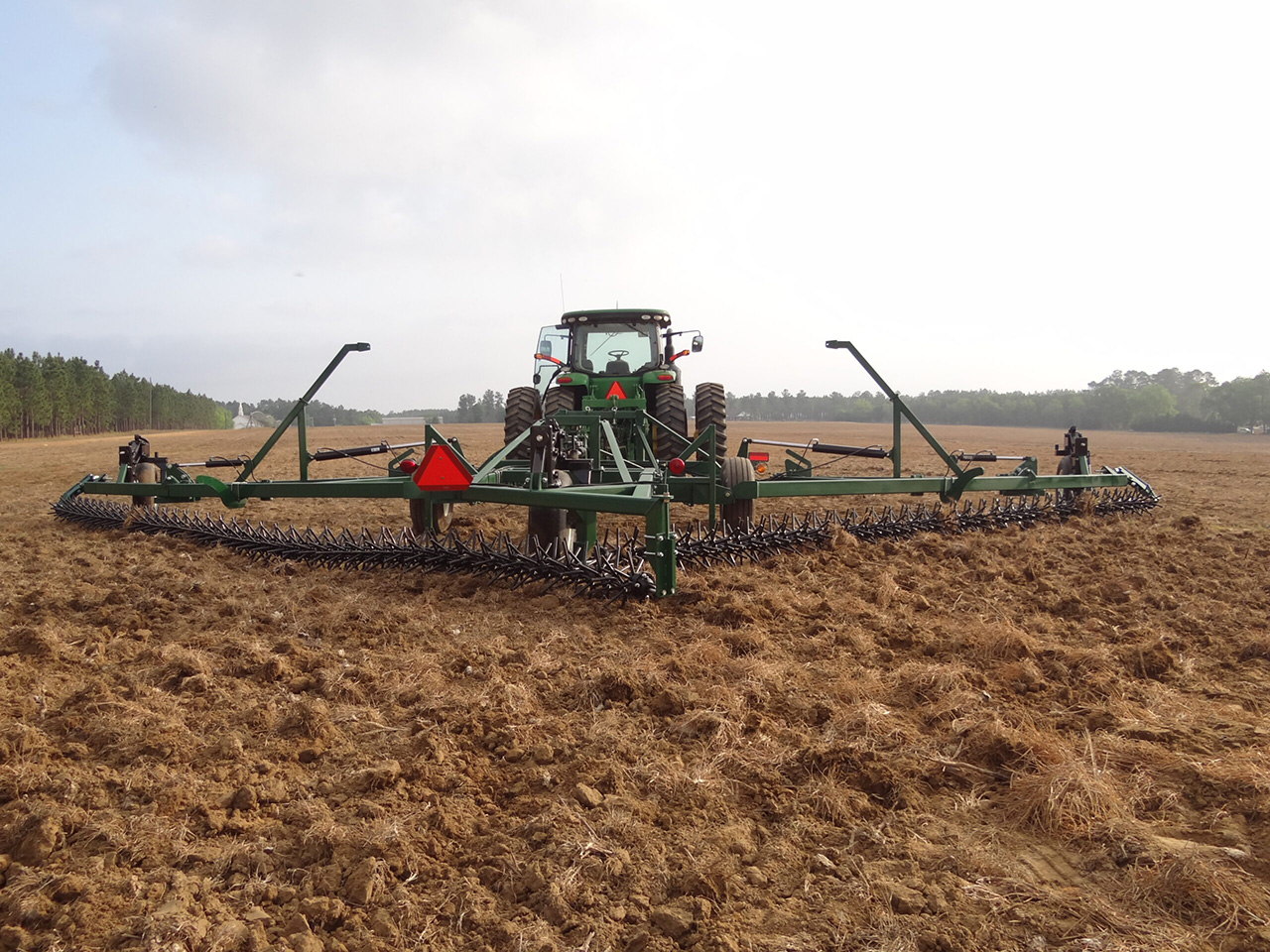

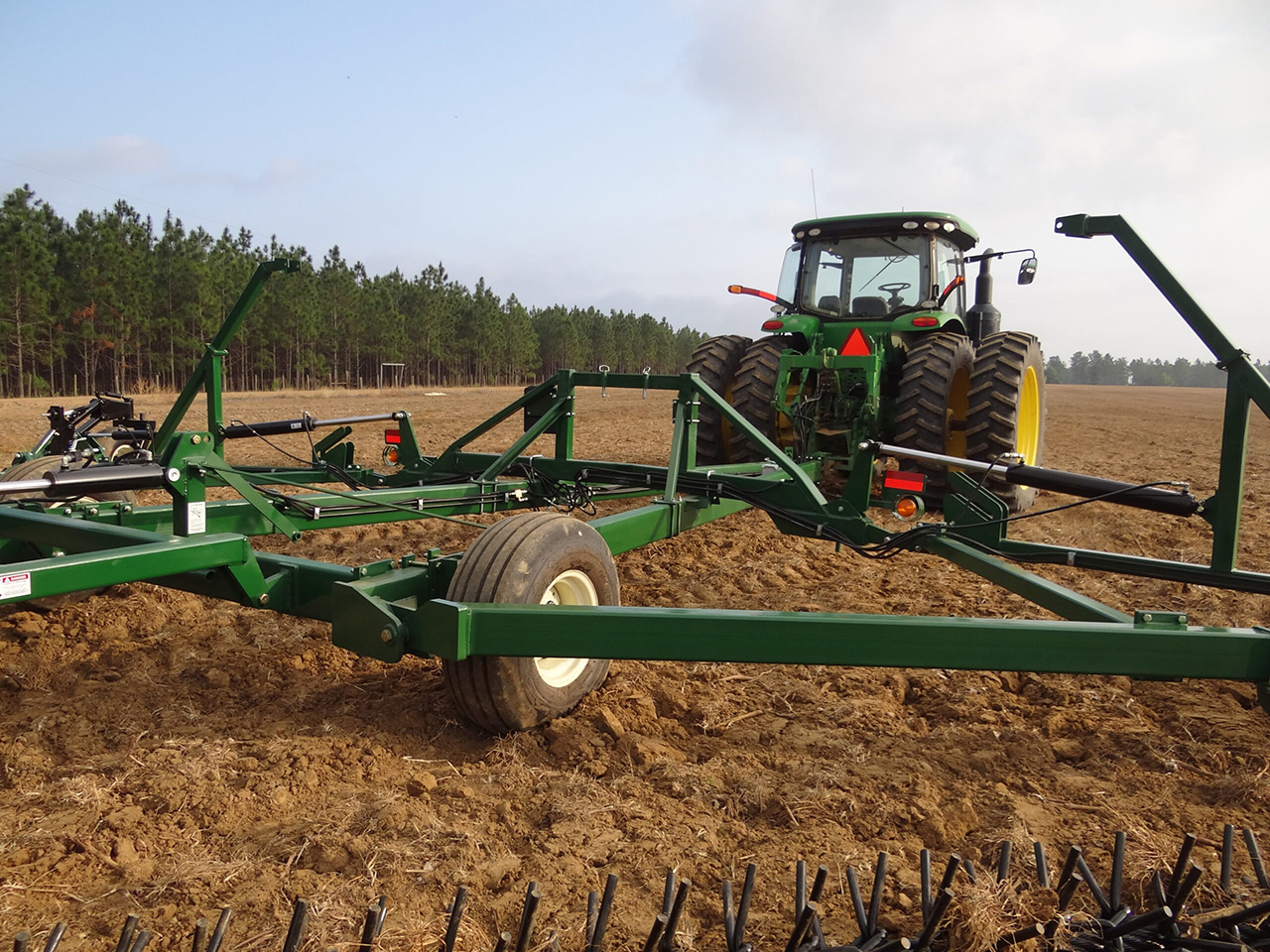

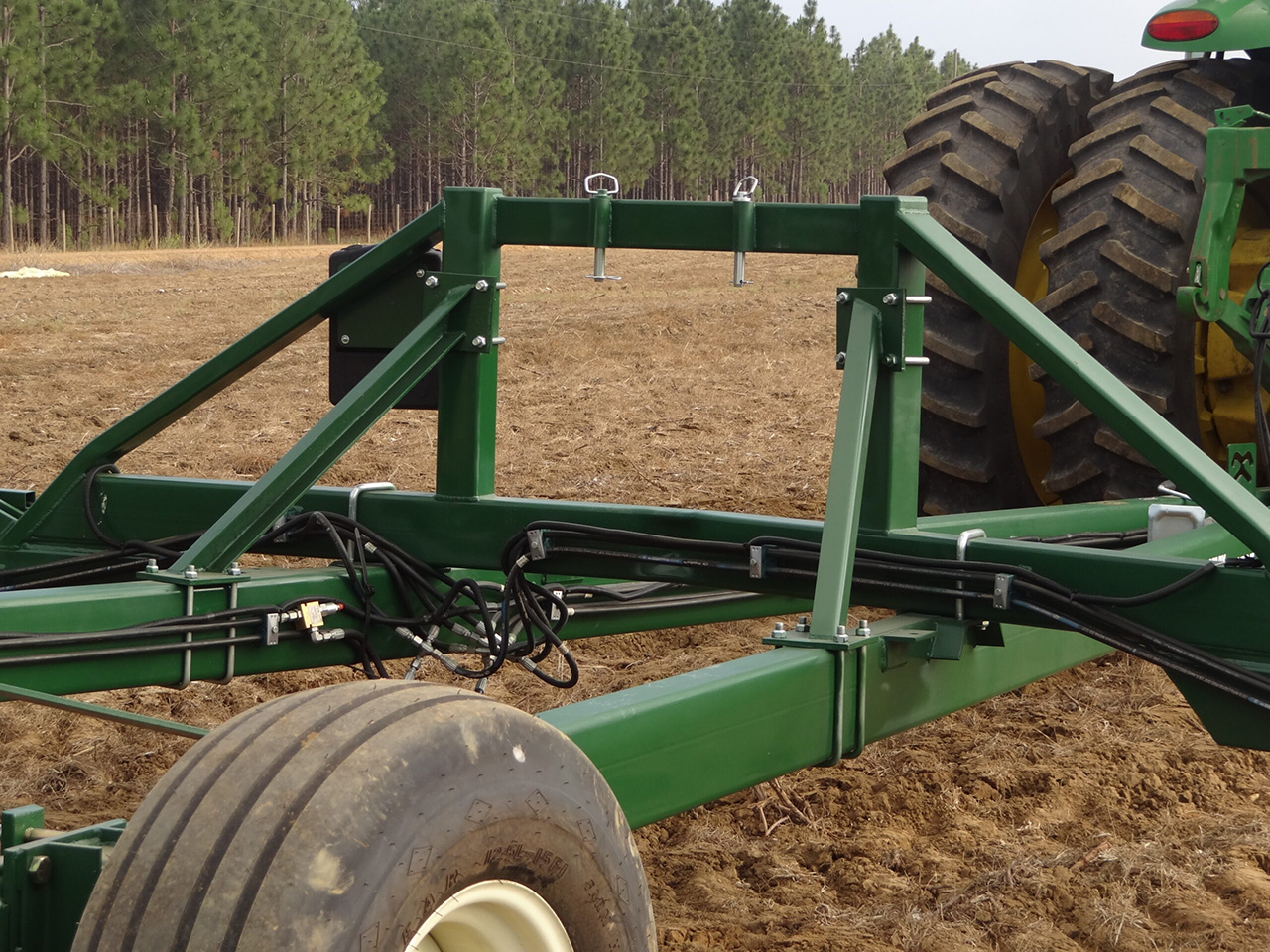

This unique, patented, tool has many uses for the progressive farmer. It allows for residue management, lump and ridge leveling, seedbed preparation, and more.  The superior staggered tooling design disturbs a higher percentage of soil, leaving an excellent seedbed while retaining valuable moisture.  The tooling is self-cleaning and will not plug up even in heavy, wet residue.  The patented wing-up frame design, allows you to go from working to transport position with seconds.  No need to leave the comfort of the tractor seat.

Description

This unique, patented, tool has many uses for the progressive farmer. It allows for residue management, lump and ridge leveling, seedbed preparation, and more.  The superior staggered tooling design disturbs a higher percentage of soil, leaving an excellent seedbed while retaining valuable moisture.  The tooling is self-cleaning and will not plug up even in heavy, wet residue.  The patented wing-up frame design, allows you to go from working to transport position with seconds.  No need to leave the comfort of the tractor seat.

Key Features

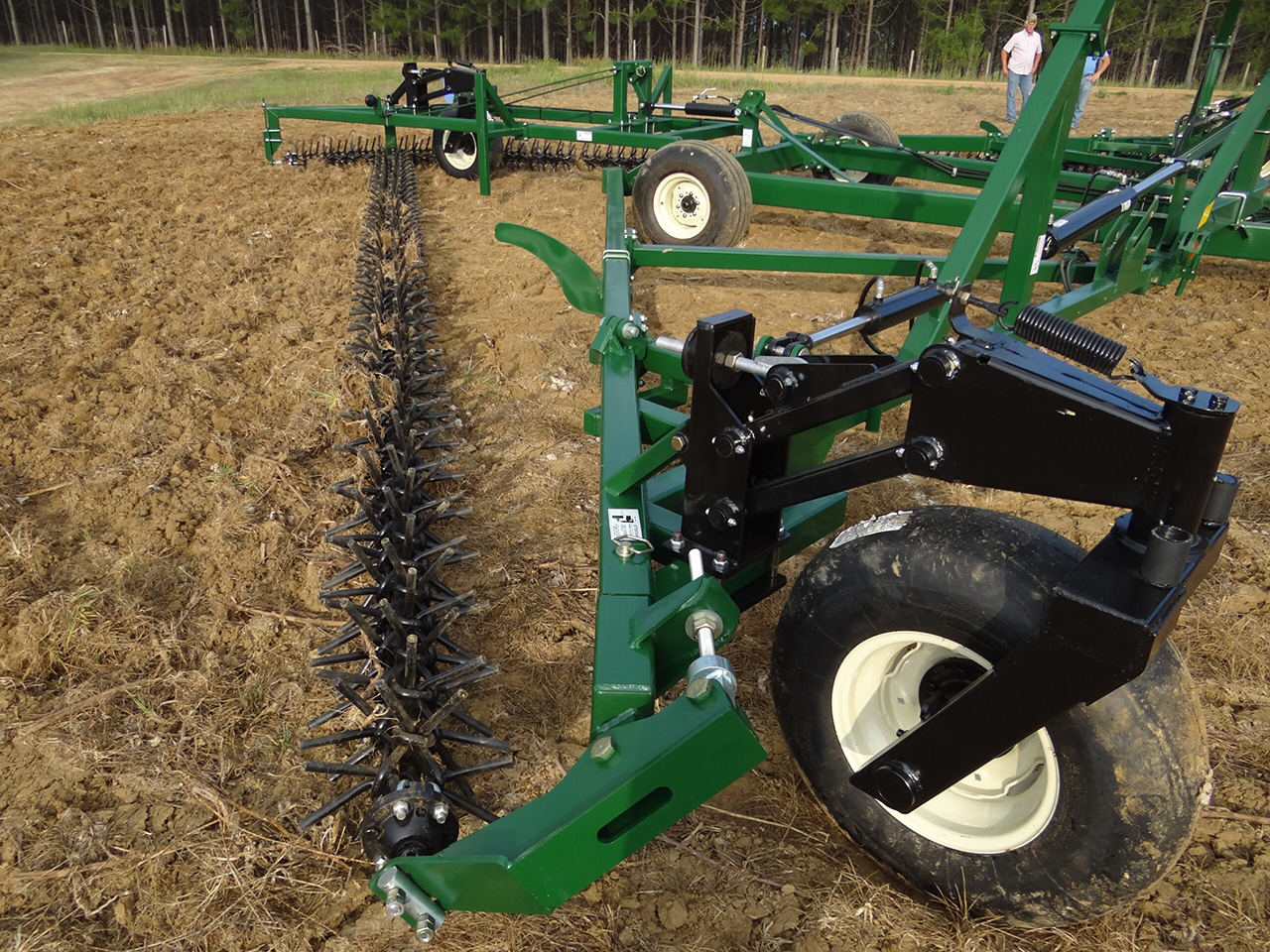

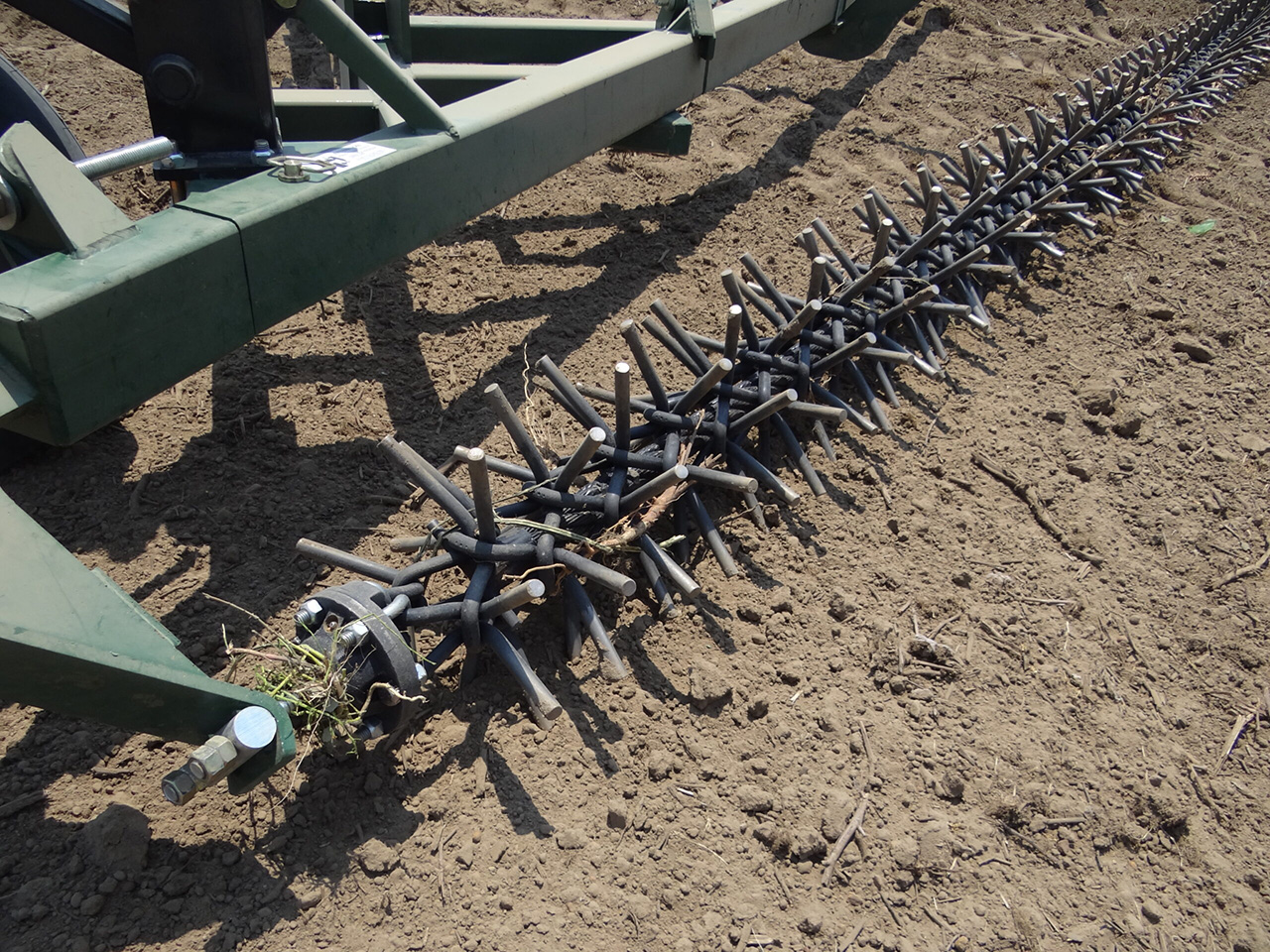

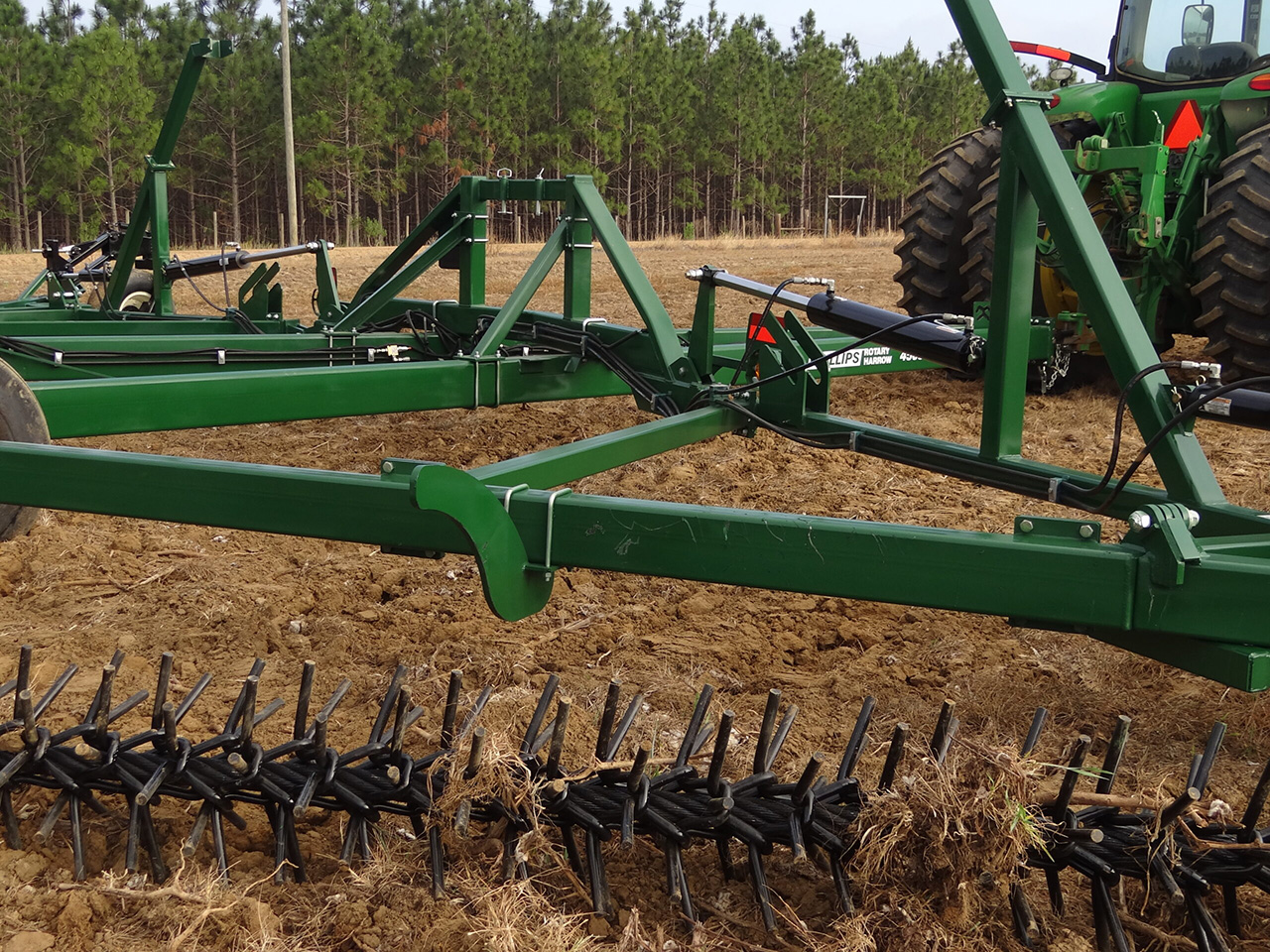

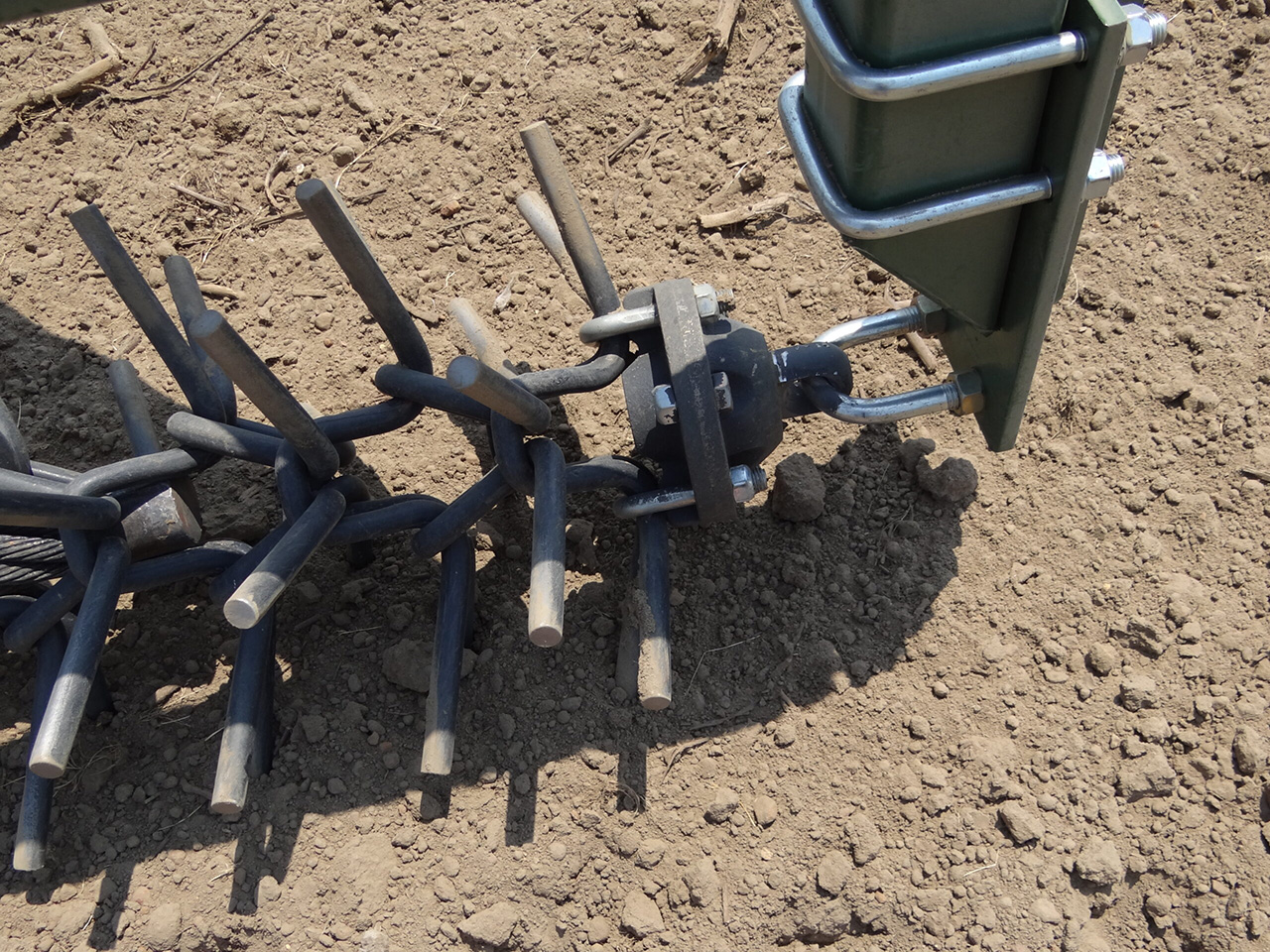

  • Tines are made from high carbon, hot forged, heat-treated steel. These unique tines provide for long life, even under the most difficult field conditions.

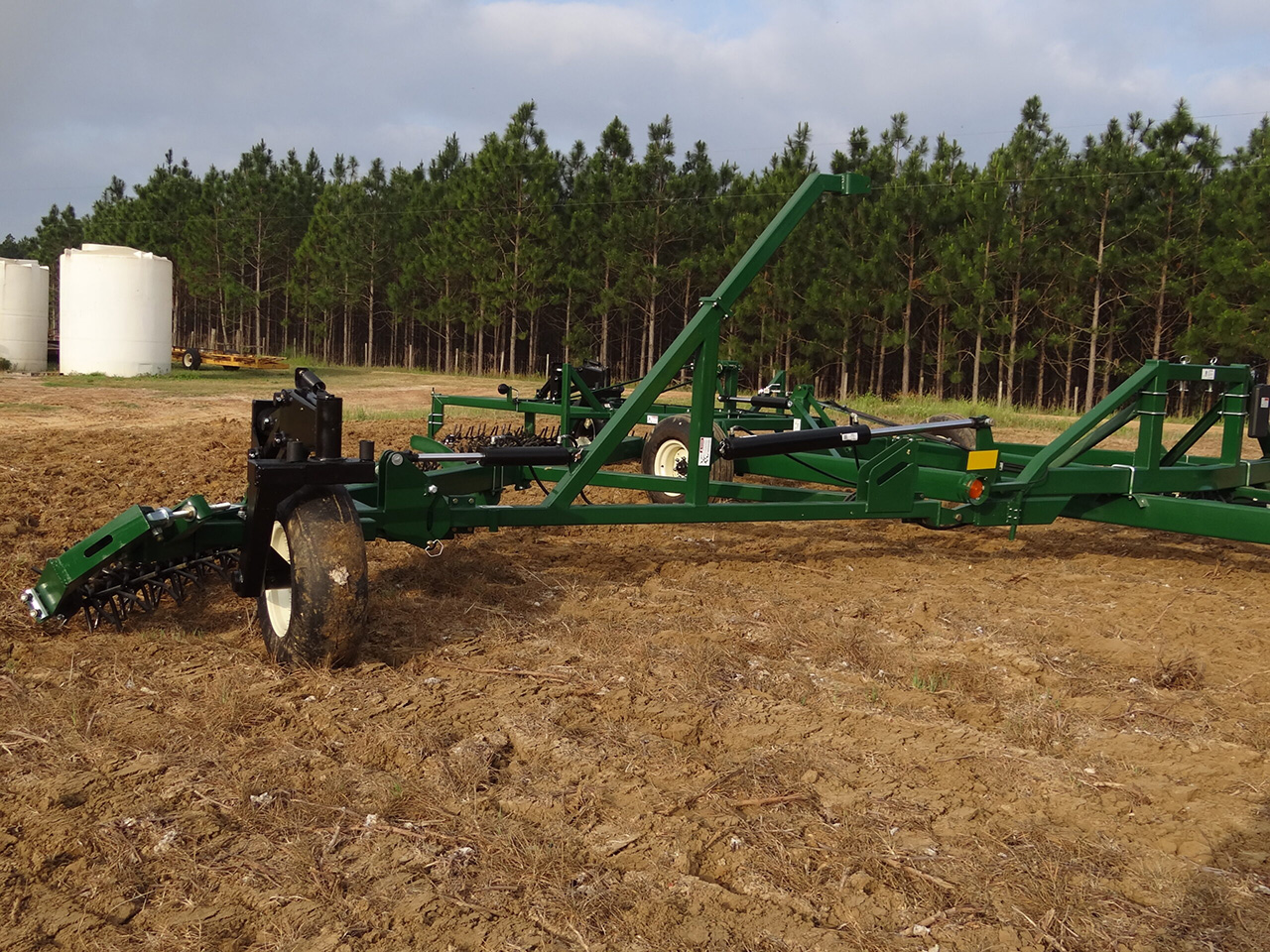

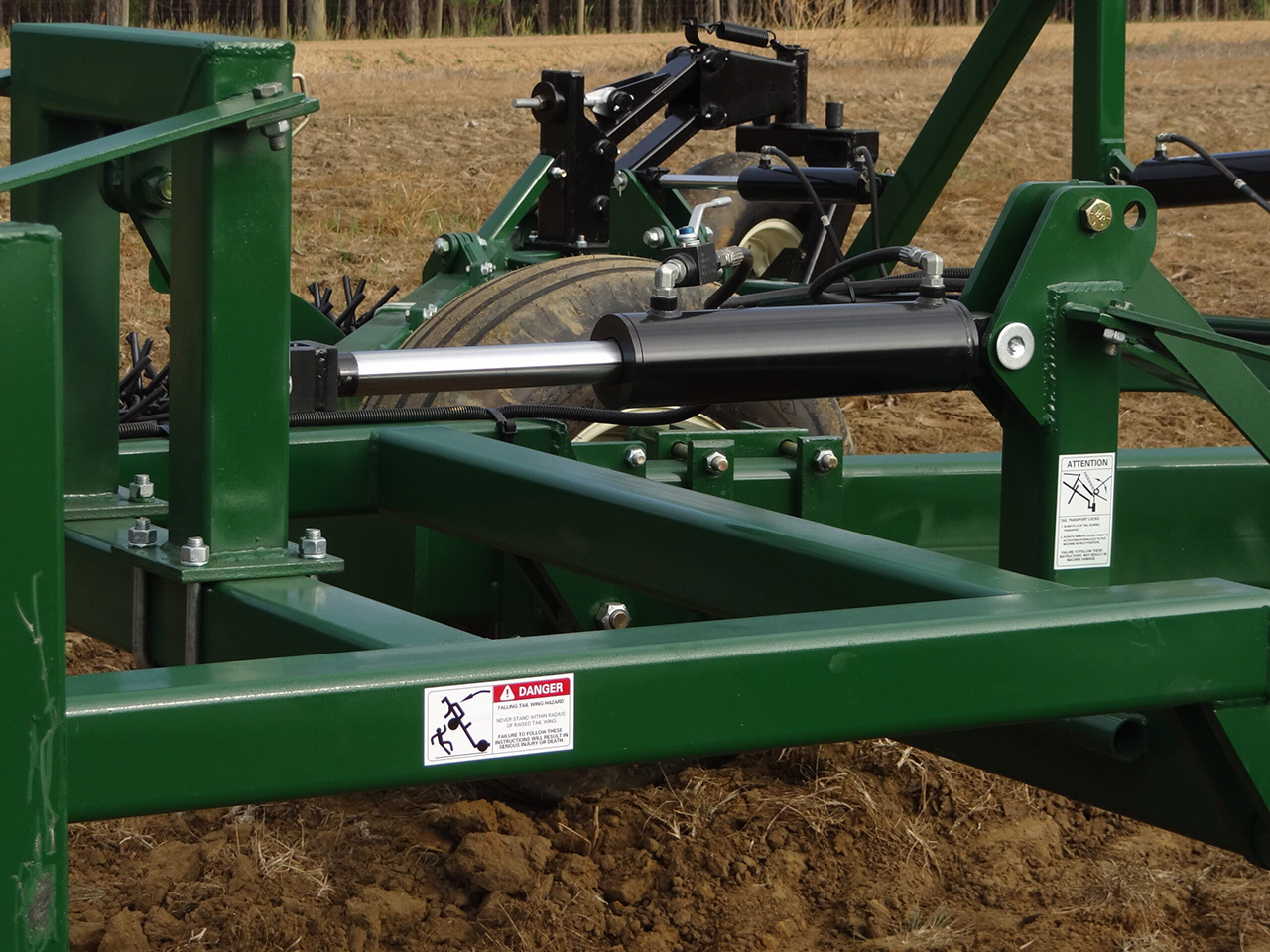

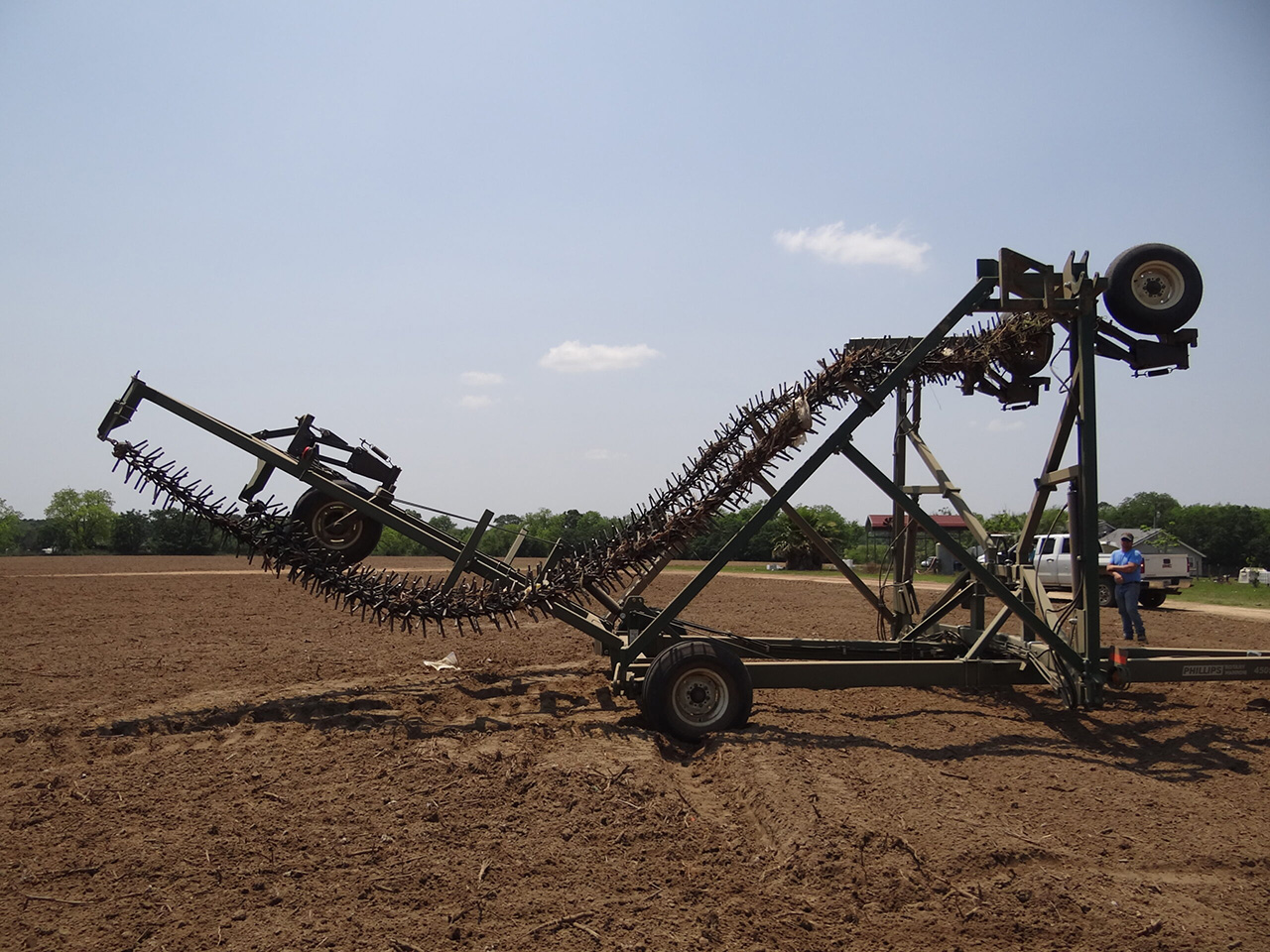

  • Wing design allows for easy and convenient transport.
  • Works well in heavy, damp residue without plugging or bunching.

Benefits

  • Fast through the field.  Can operate at speeds up to 12 mph.
  • Extreme versatility.

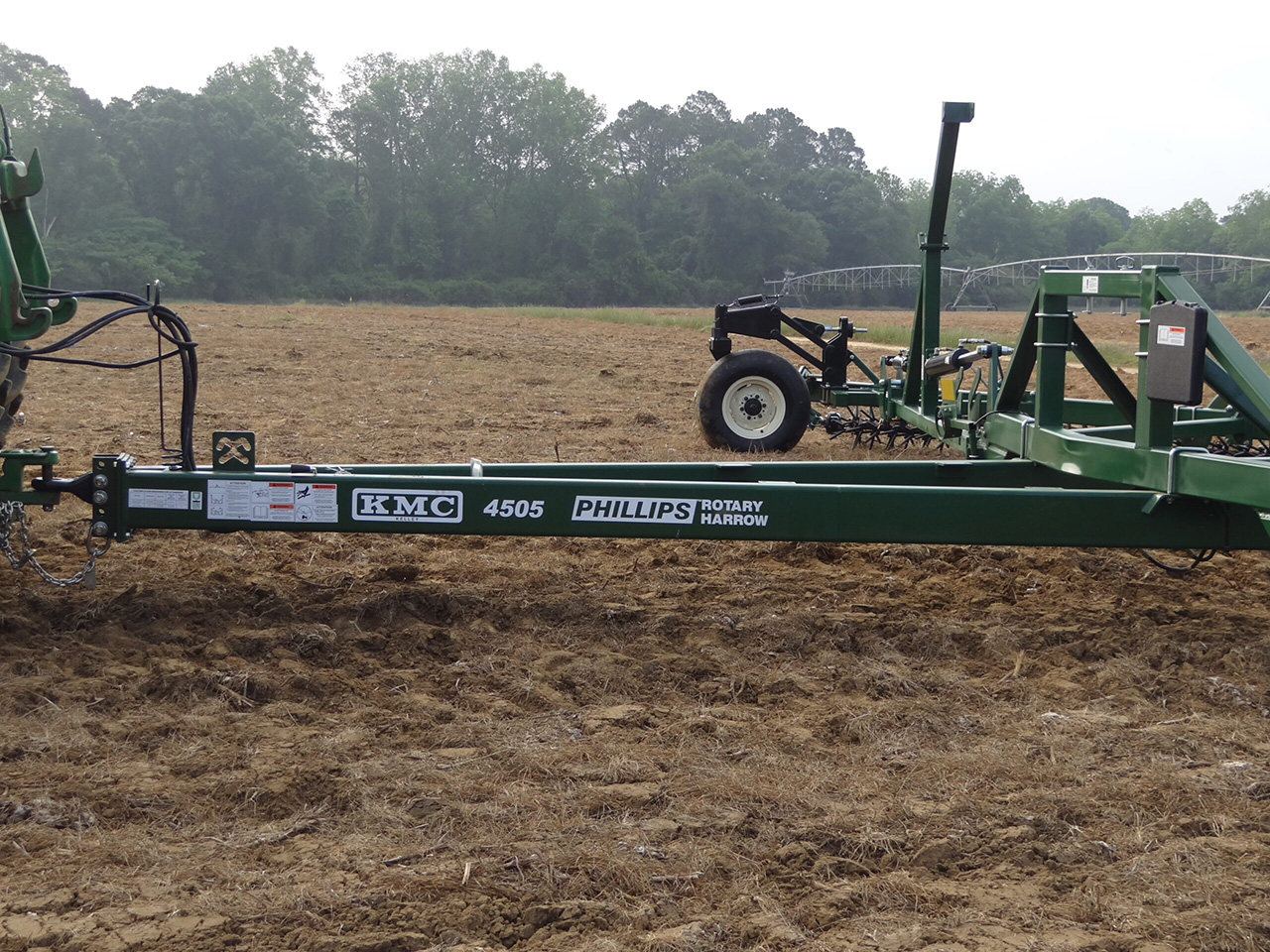

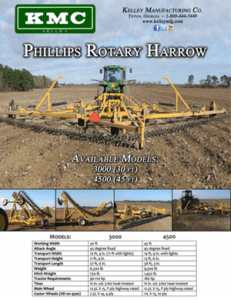

Available Models and Specifications

Model

Phillips 3000

Phillips 4500

Working Width

30'

45'

Attack Angle

45 deg fixed

45 deg fixed

Transport Width

10' 4" (11' w/lights)

14' 9" w/lights

Transport Height

11' 4"

13'6"

Transport Length

27'6"

38'3"

Overall Weight

6,070 IBS

9,500 IBS

Hitch Weight

750 IBS

1,450 IBS

Tines

3/4" OD, 5160 Heat Treated

3/4" OD, 5160 Heat Treated

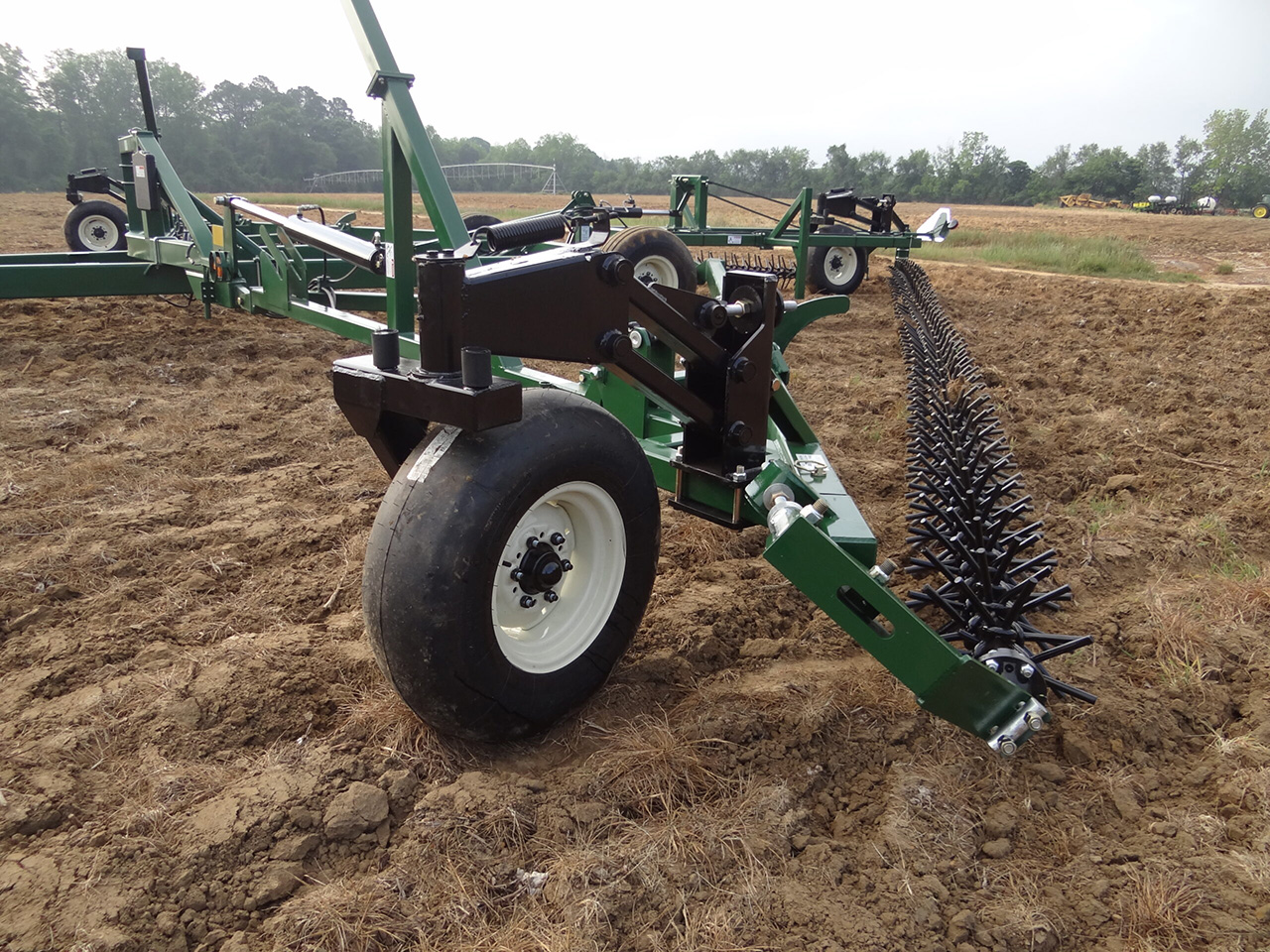

Wheels

Main Wheel: 12.5Lx15, 8 ply
Castor Wheel: 7.5x14, 4 ply

Main Wheel: 12.5x15
Highway Service

Tractor Requirements

90 to 110 hp

130 hp
