Description
Key Features:

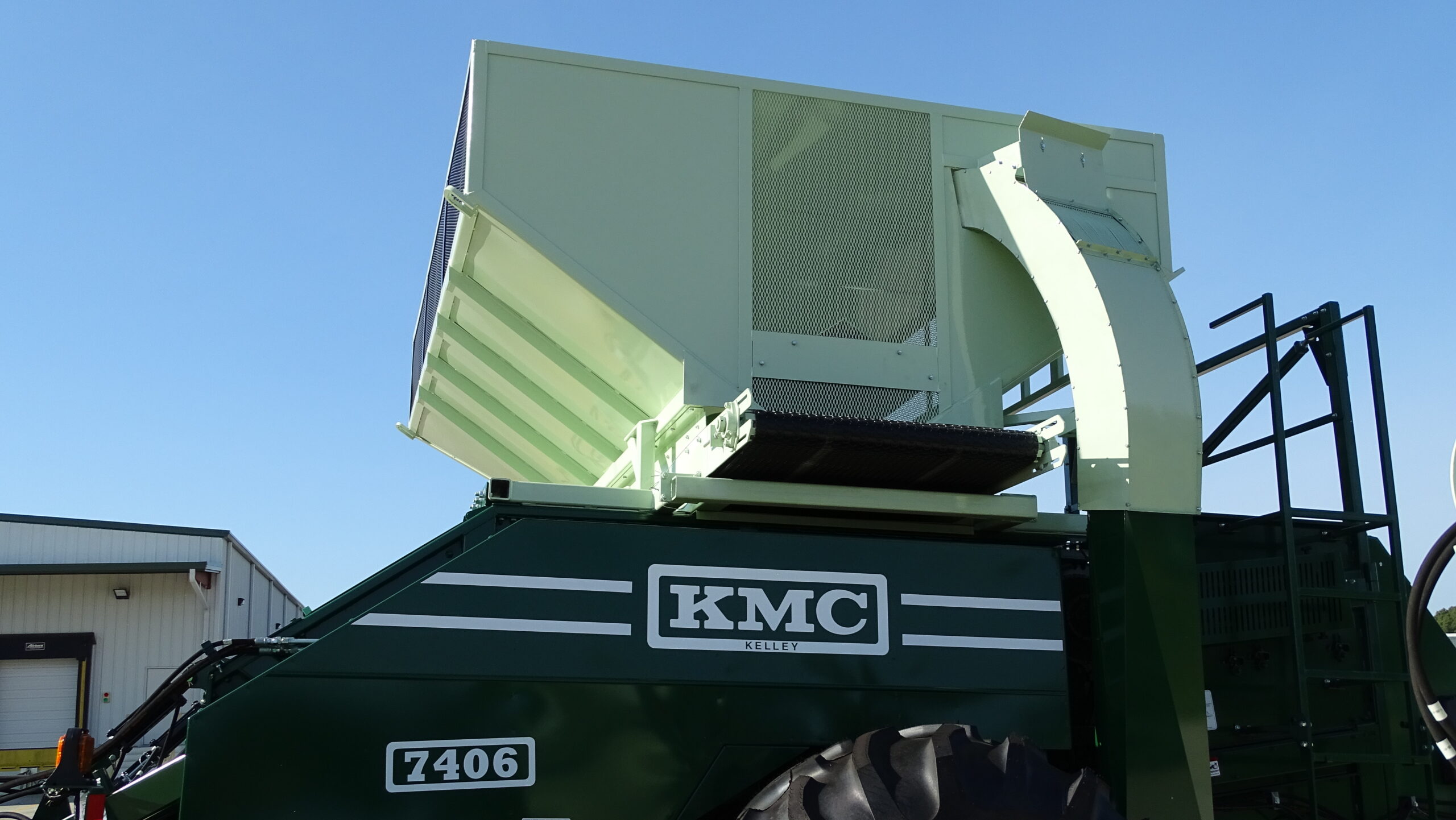

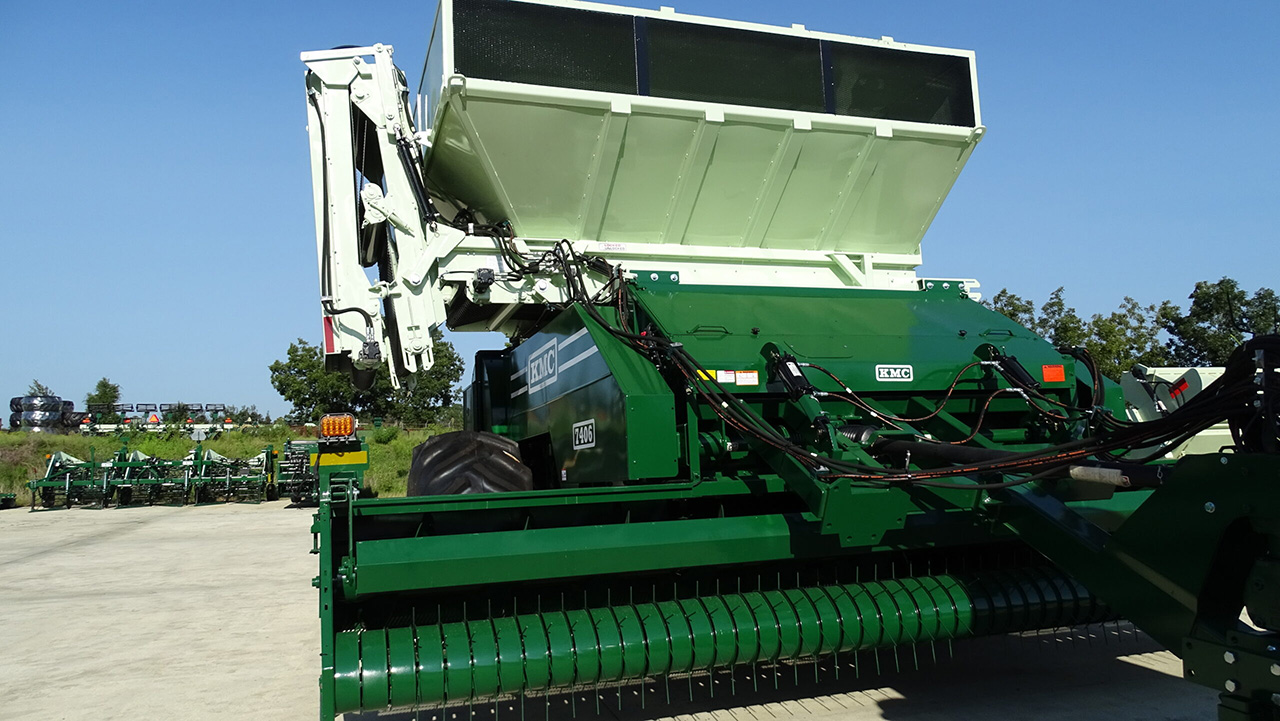

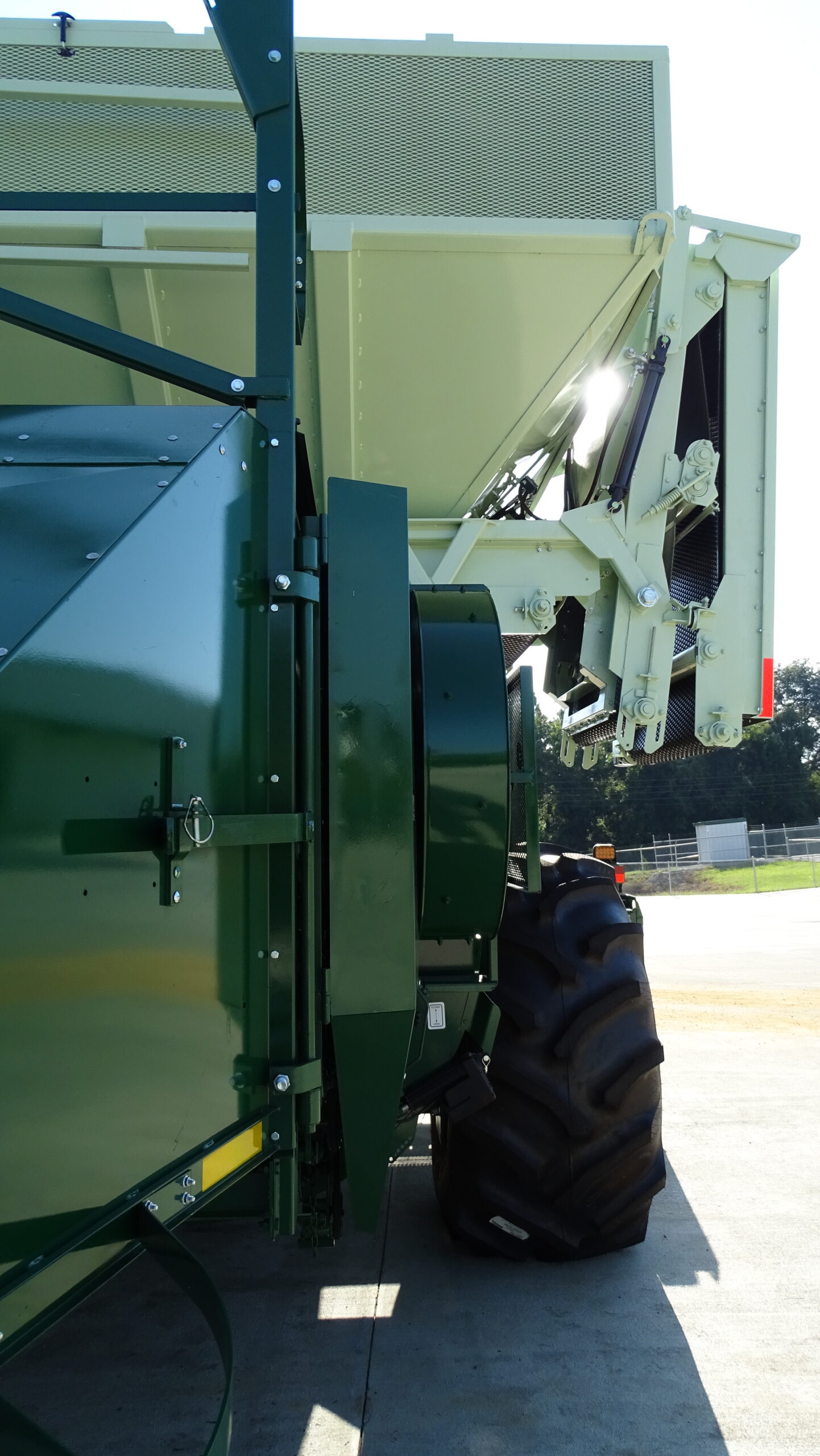

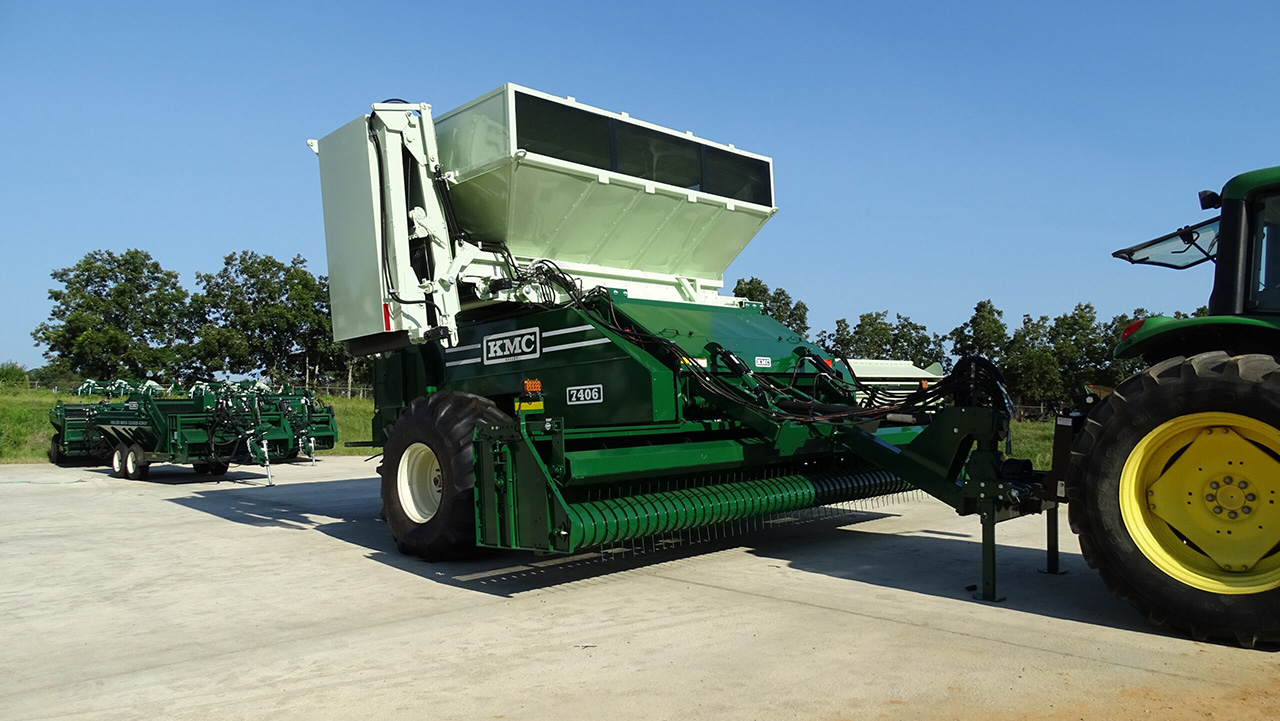

- Tank raises hydraulically providing easy access to threshing cylinders
- Vertically folding conveyor arm folds compactly against the tank for stability during transport
- Wider conveyor belts provide fast unloading
- More tank capacity (3 1/4 tons) for more efficient use of Dump Carts

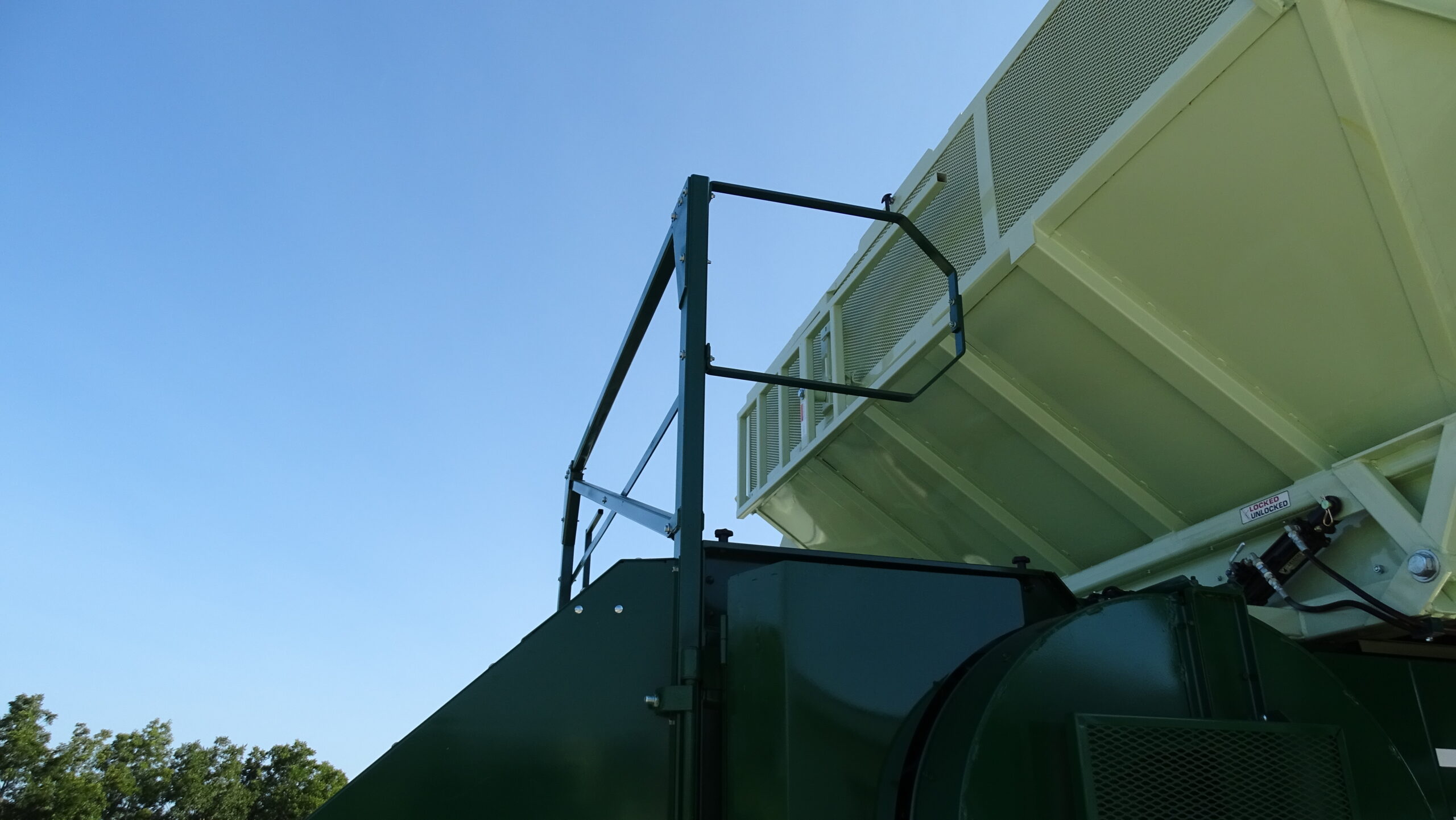

- Steeper angle on tank panels for better off load in wet conditions
- Stronger hydraulic motors

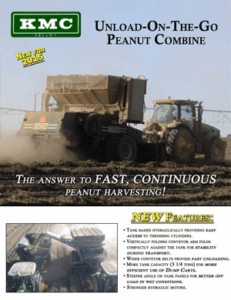

Unload a full basket in approximately two minutes without stopping!
Designed for 6 Row Models!
Specifications
Depth (Front – Back): 110″
Tank Width: (Side-Side): 144″
Tank Height: 67″
Tank Capacity: 350 cu ft
Overall Conveyor Length: 319″
Conveyor Arm Length: 160″
