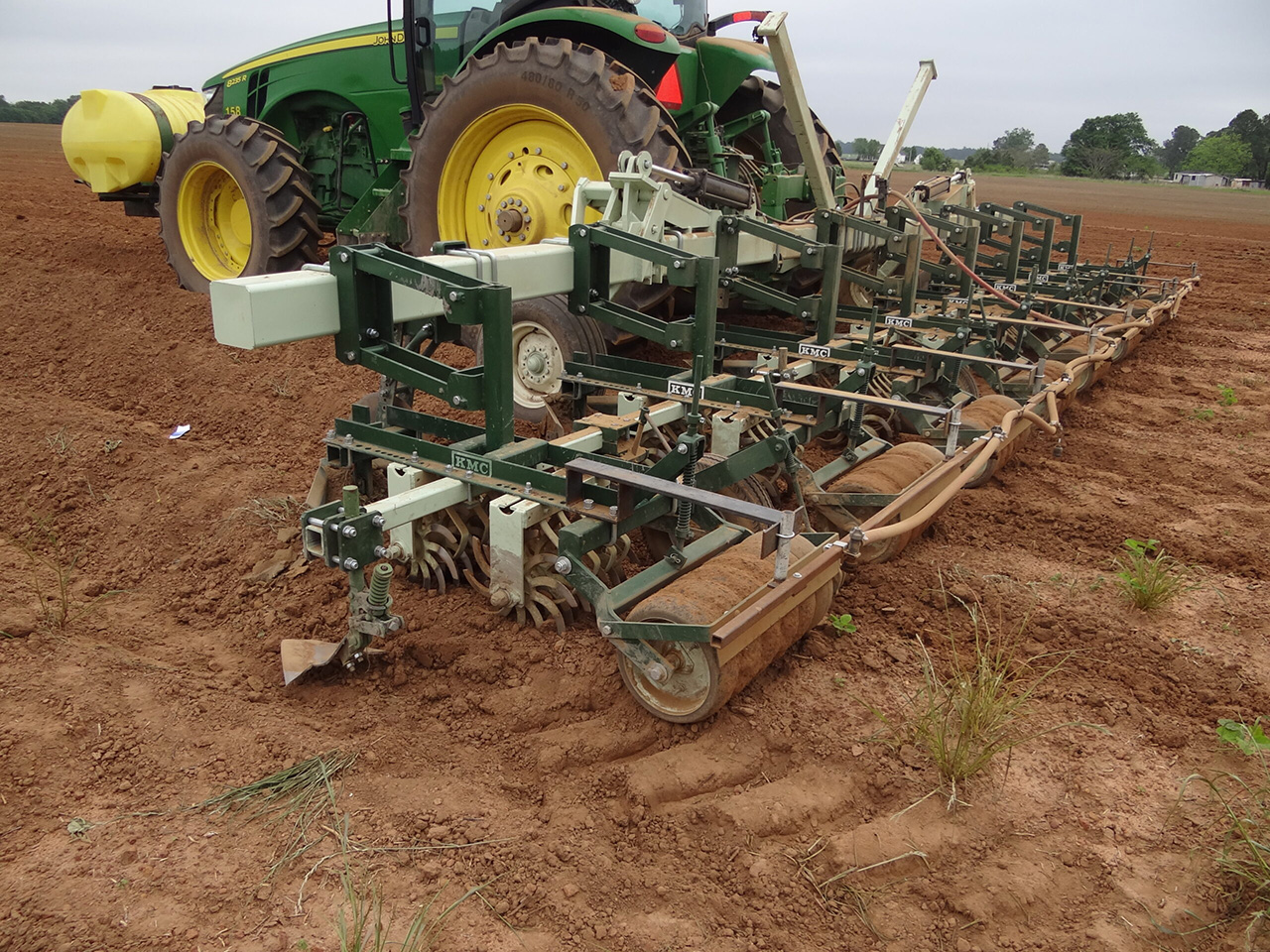

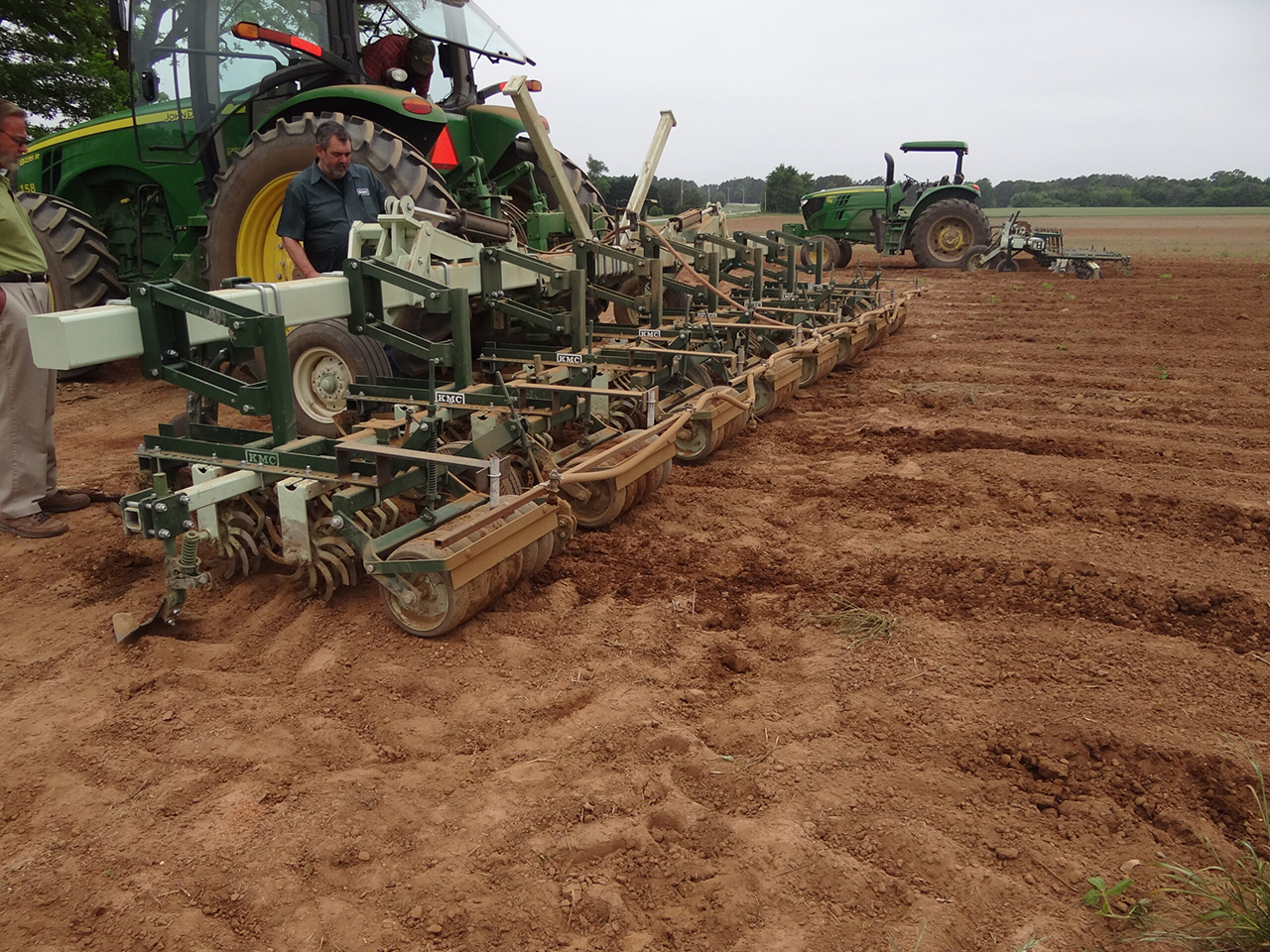

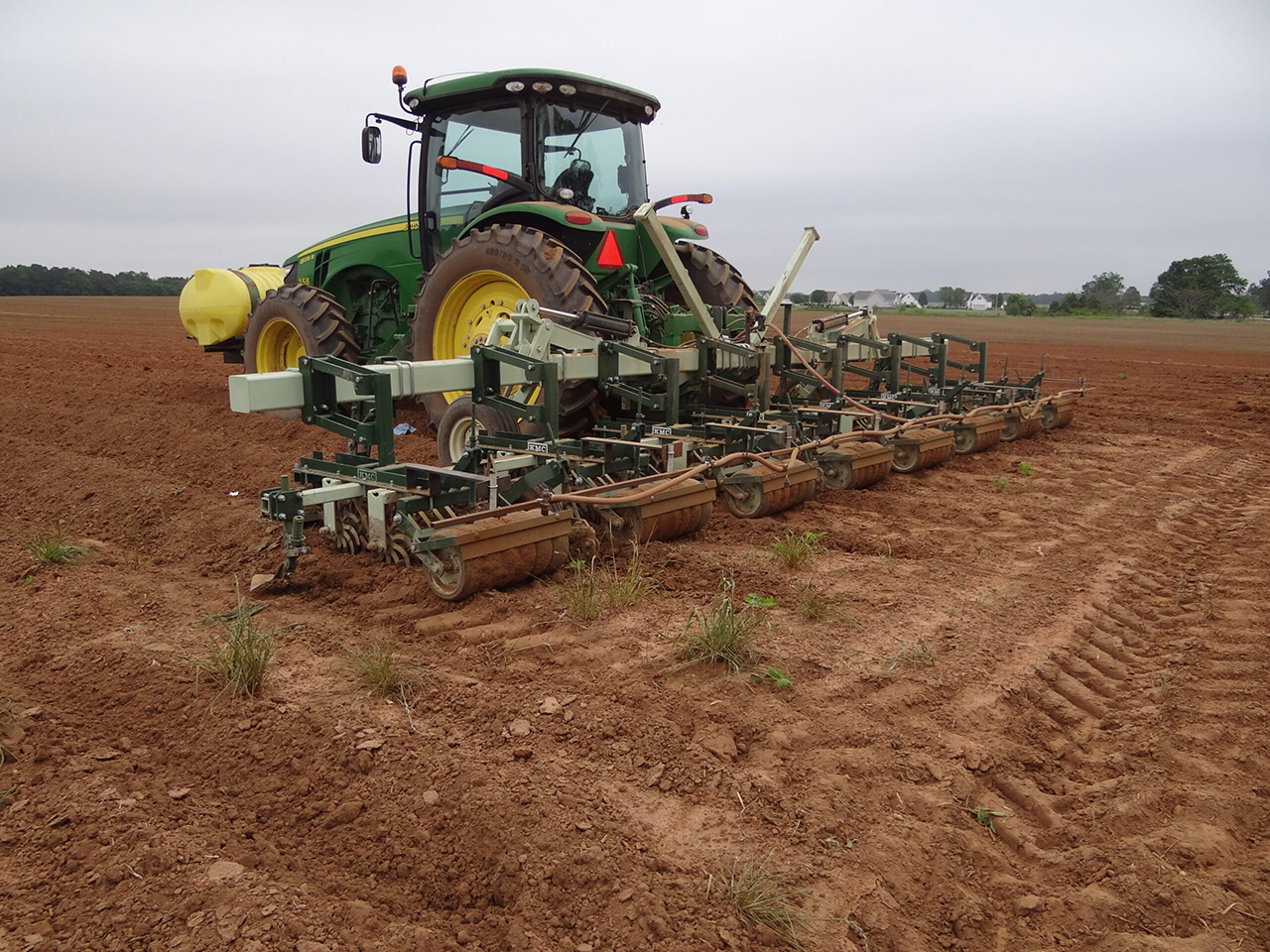

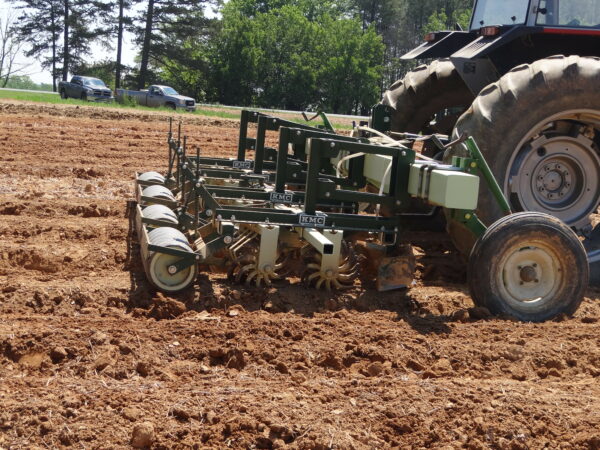

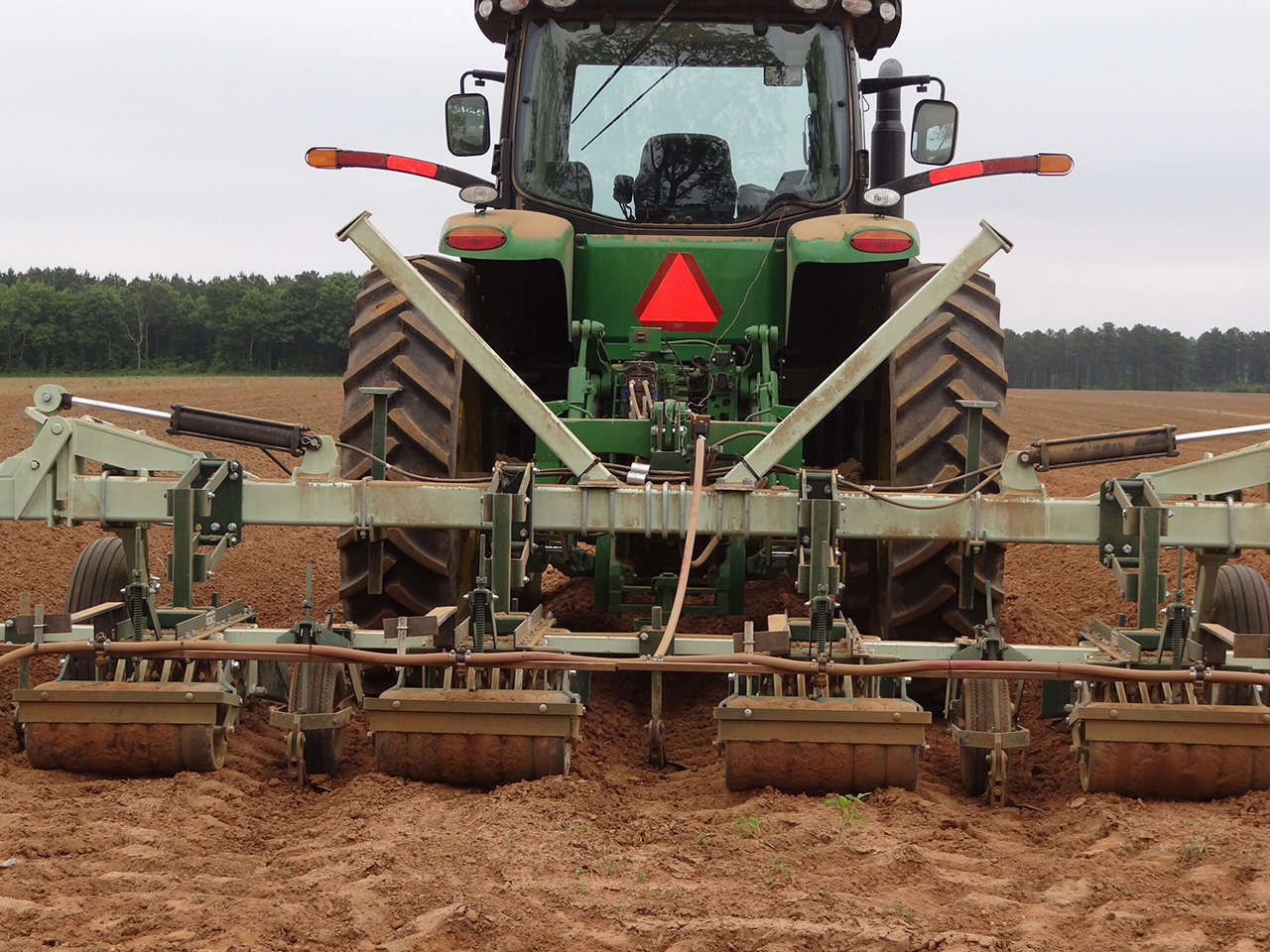

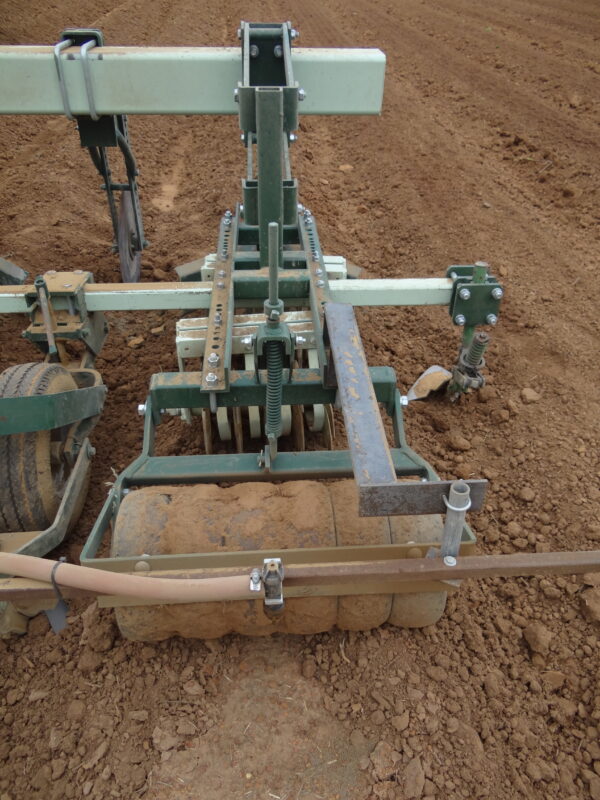

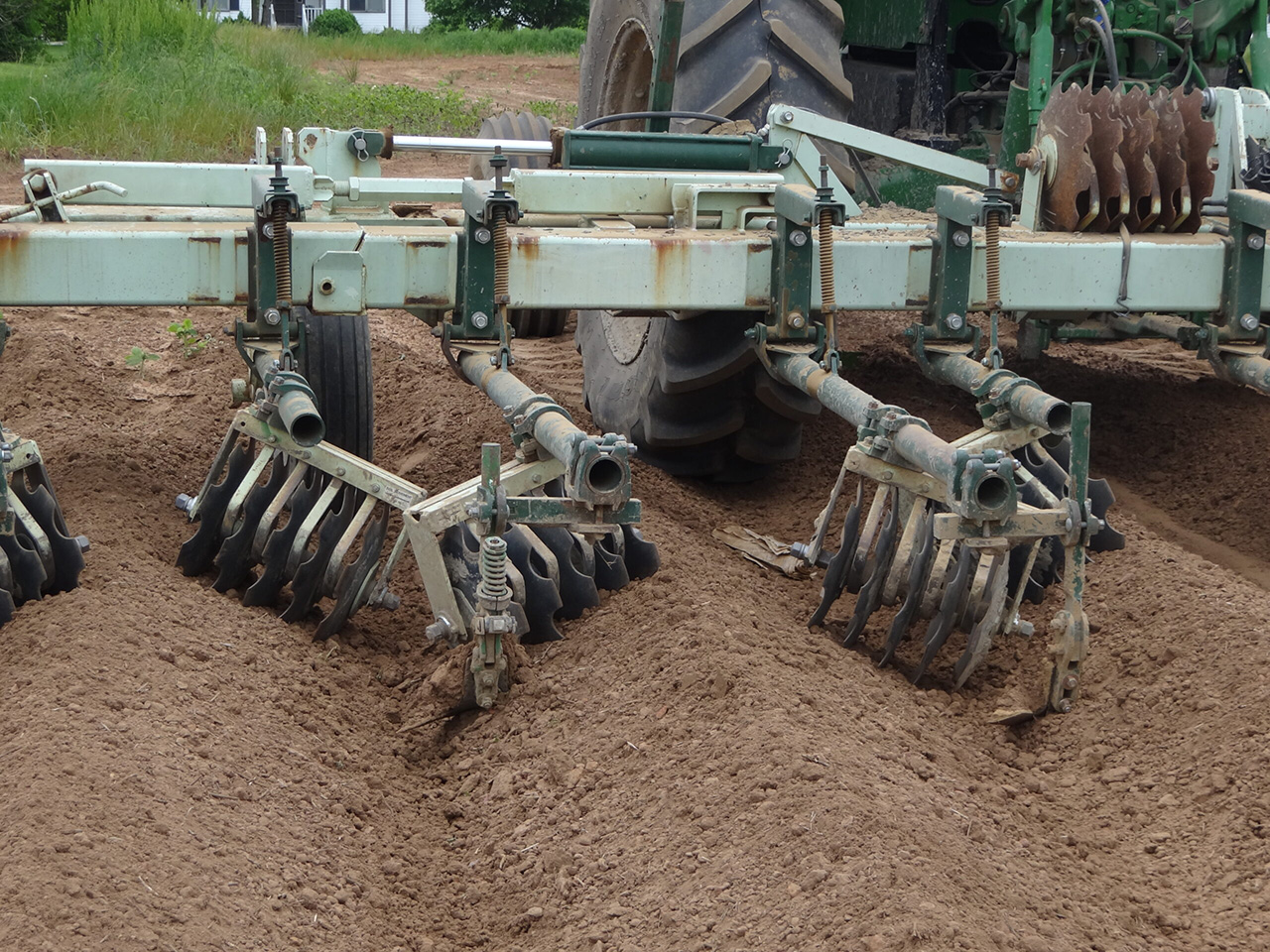

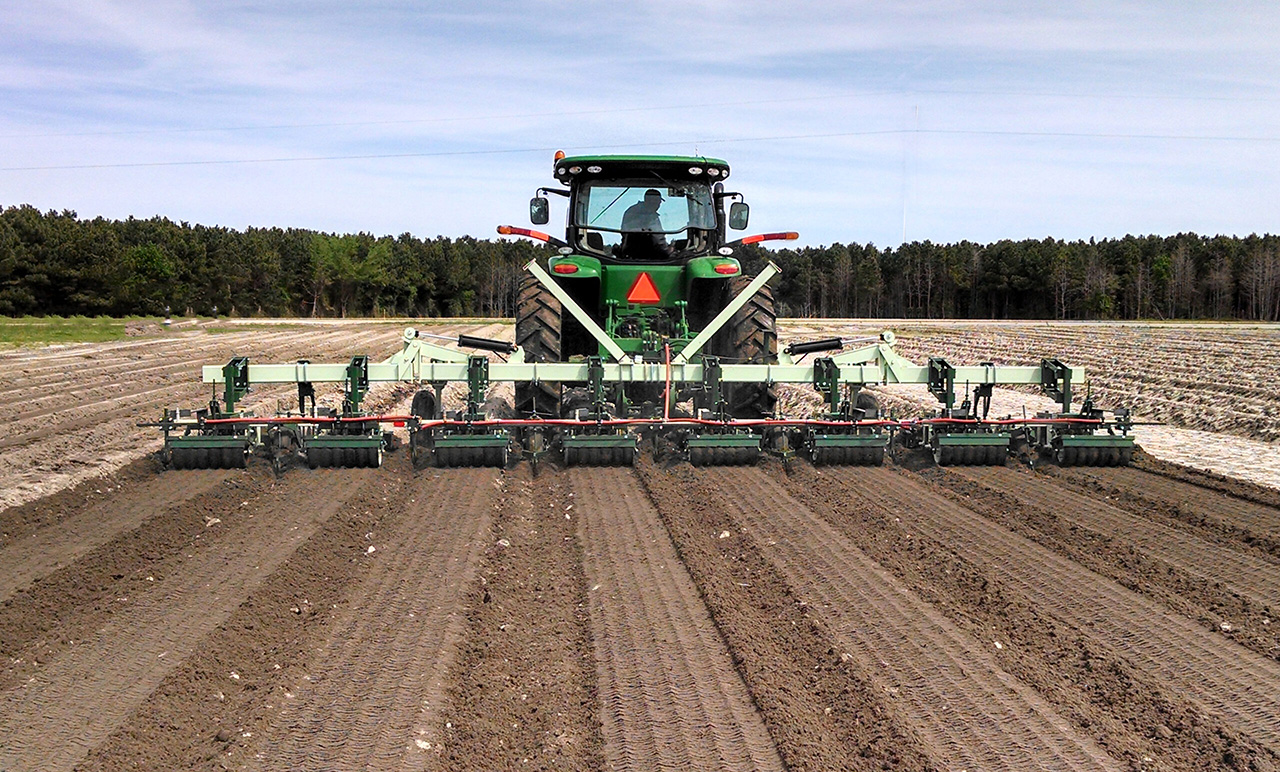

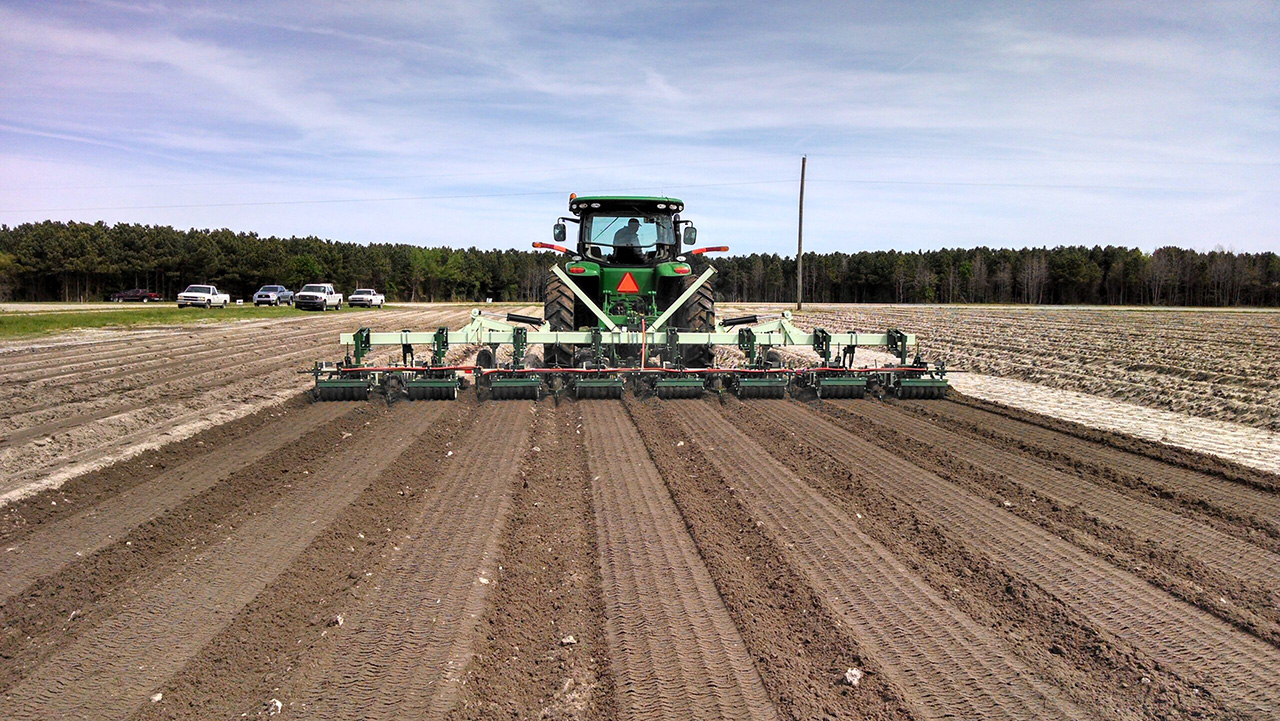

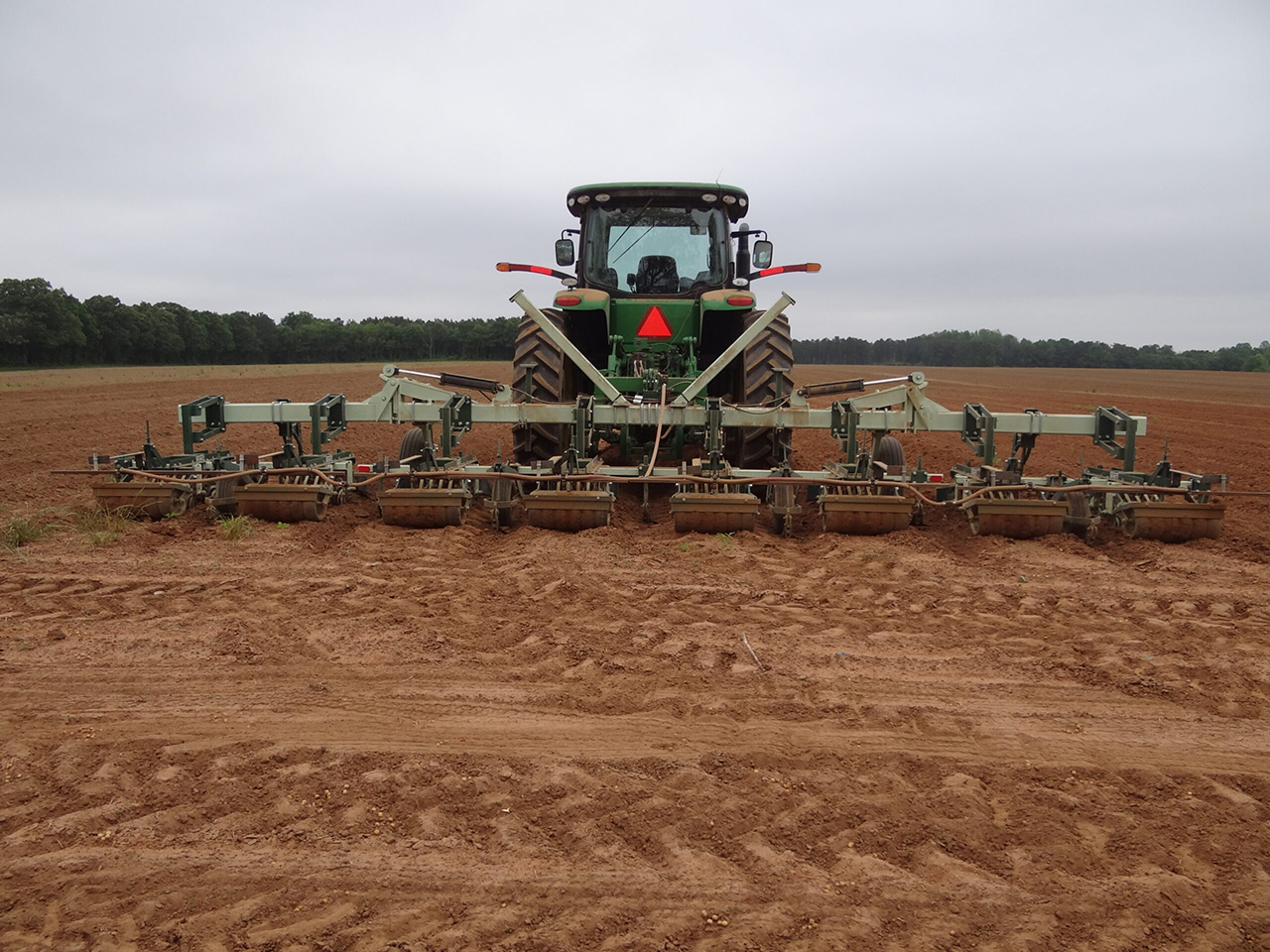

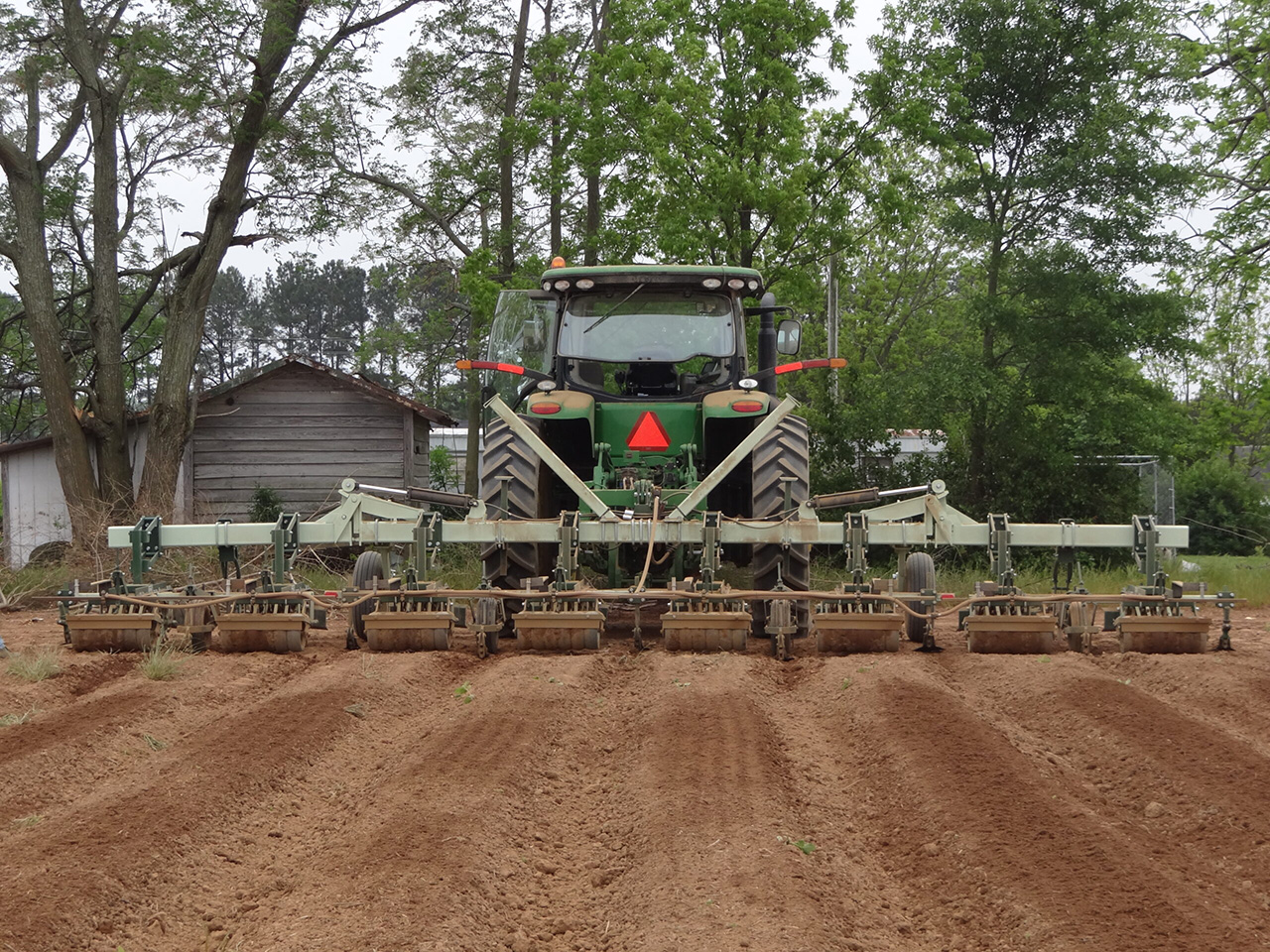

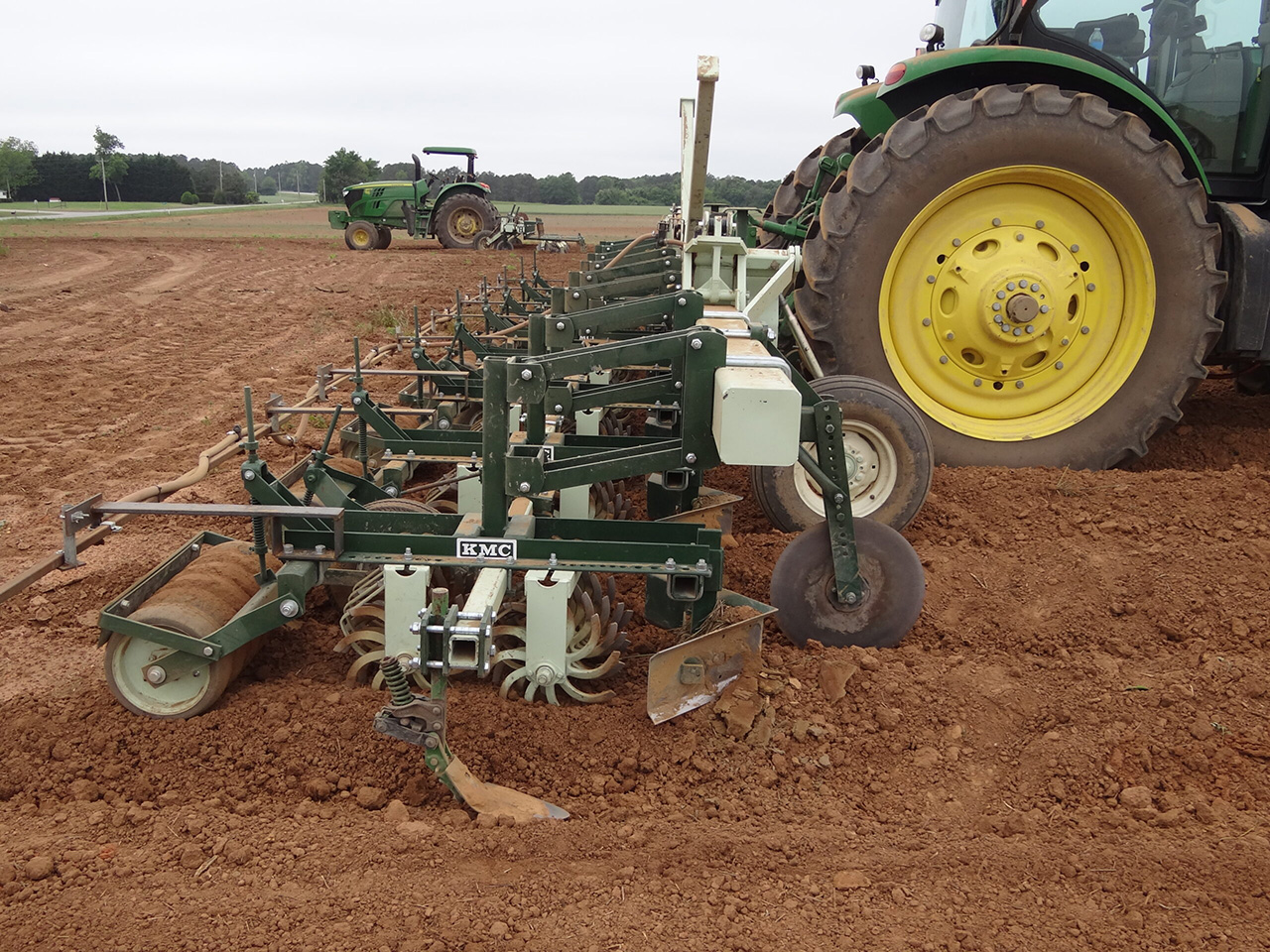

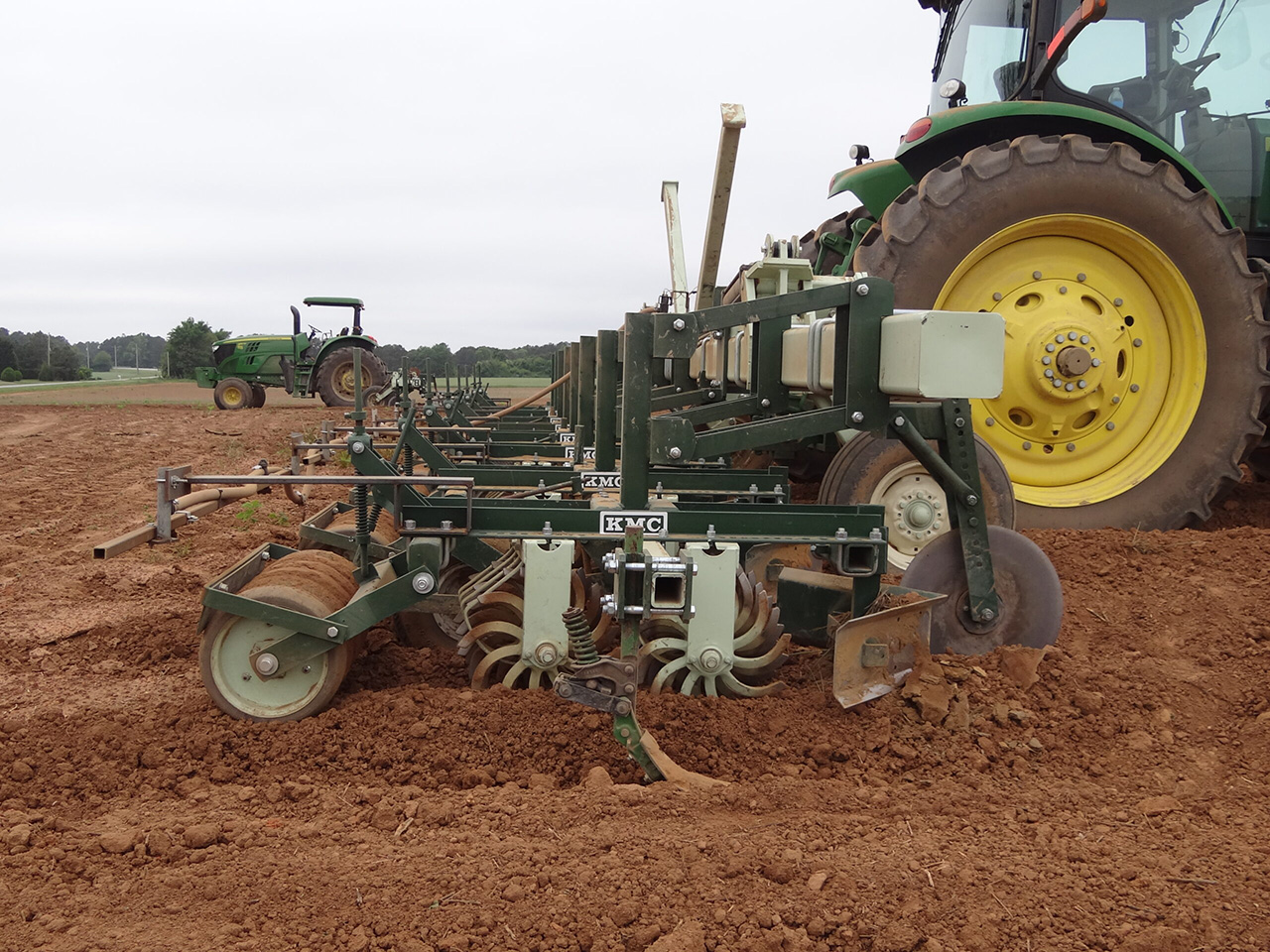

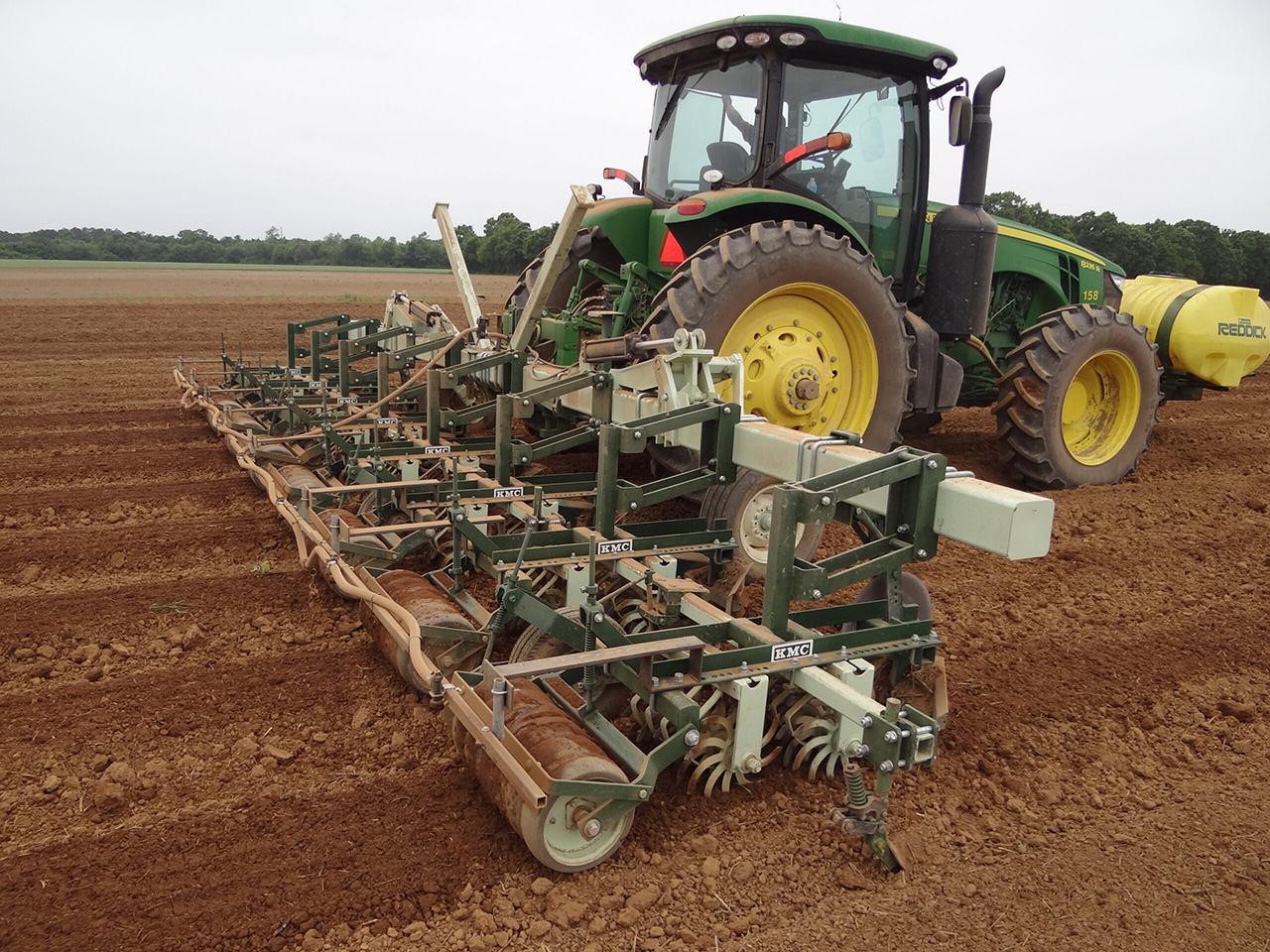

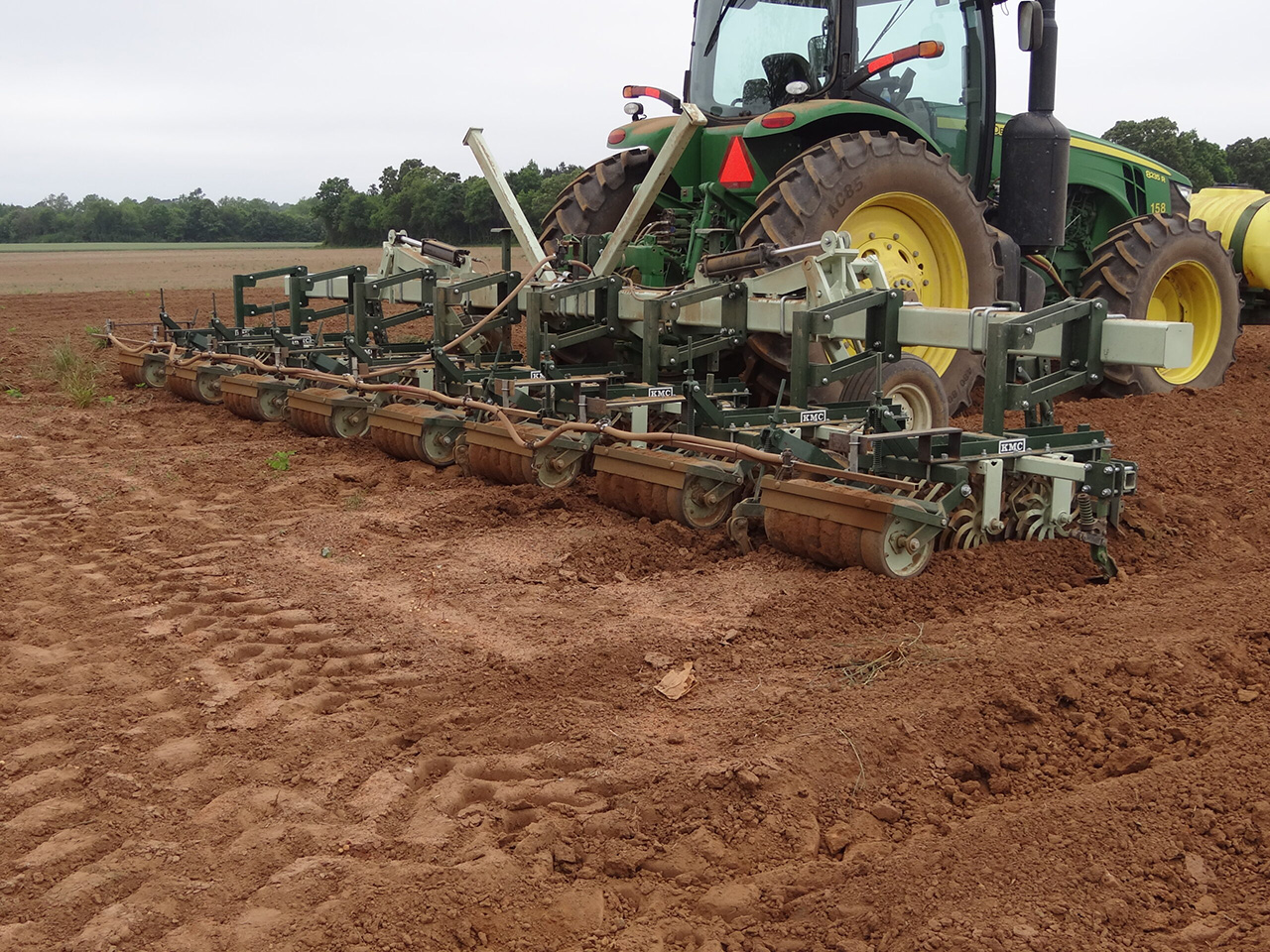

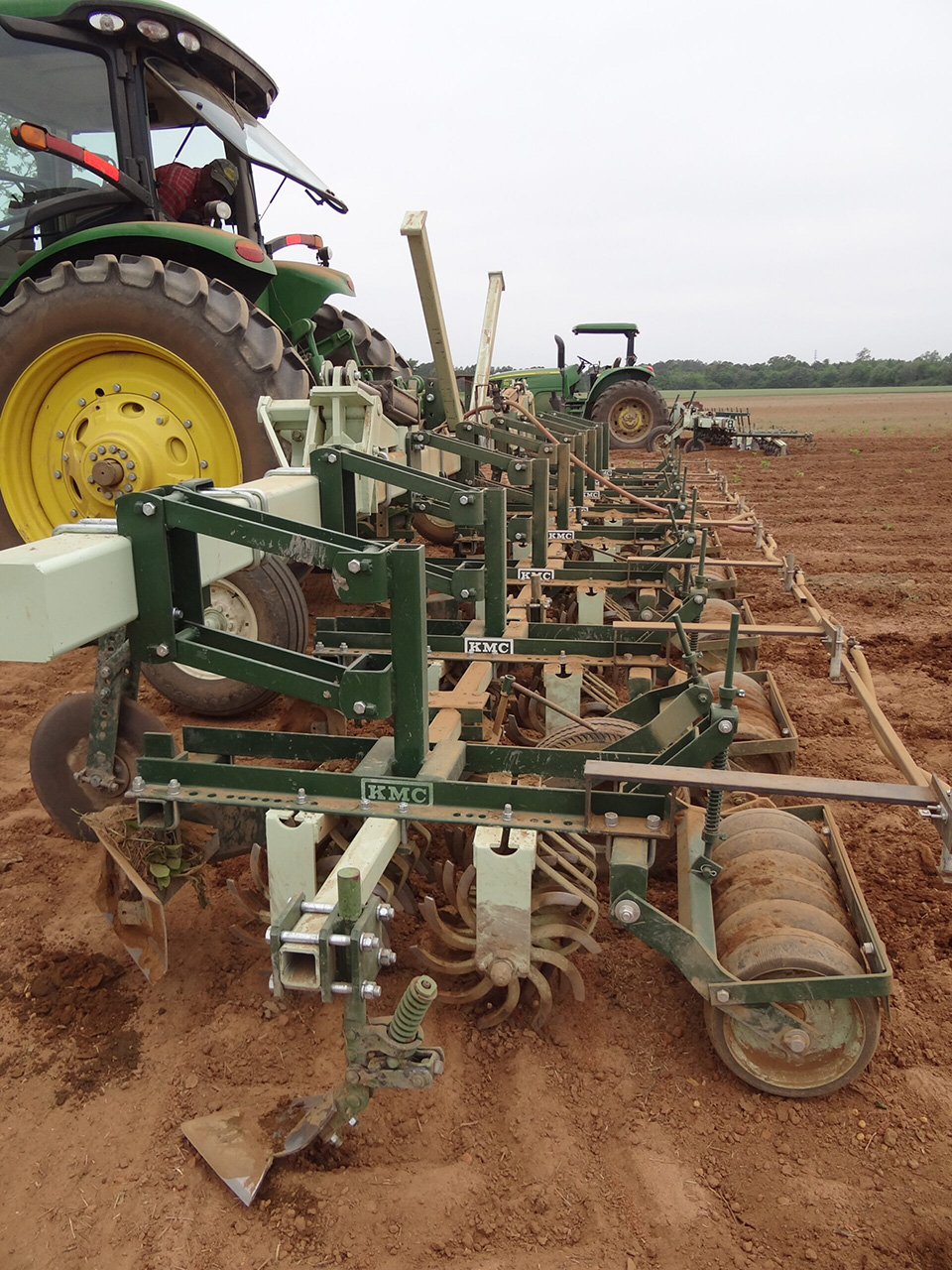

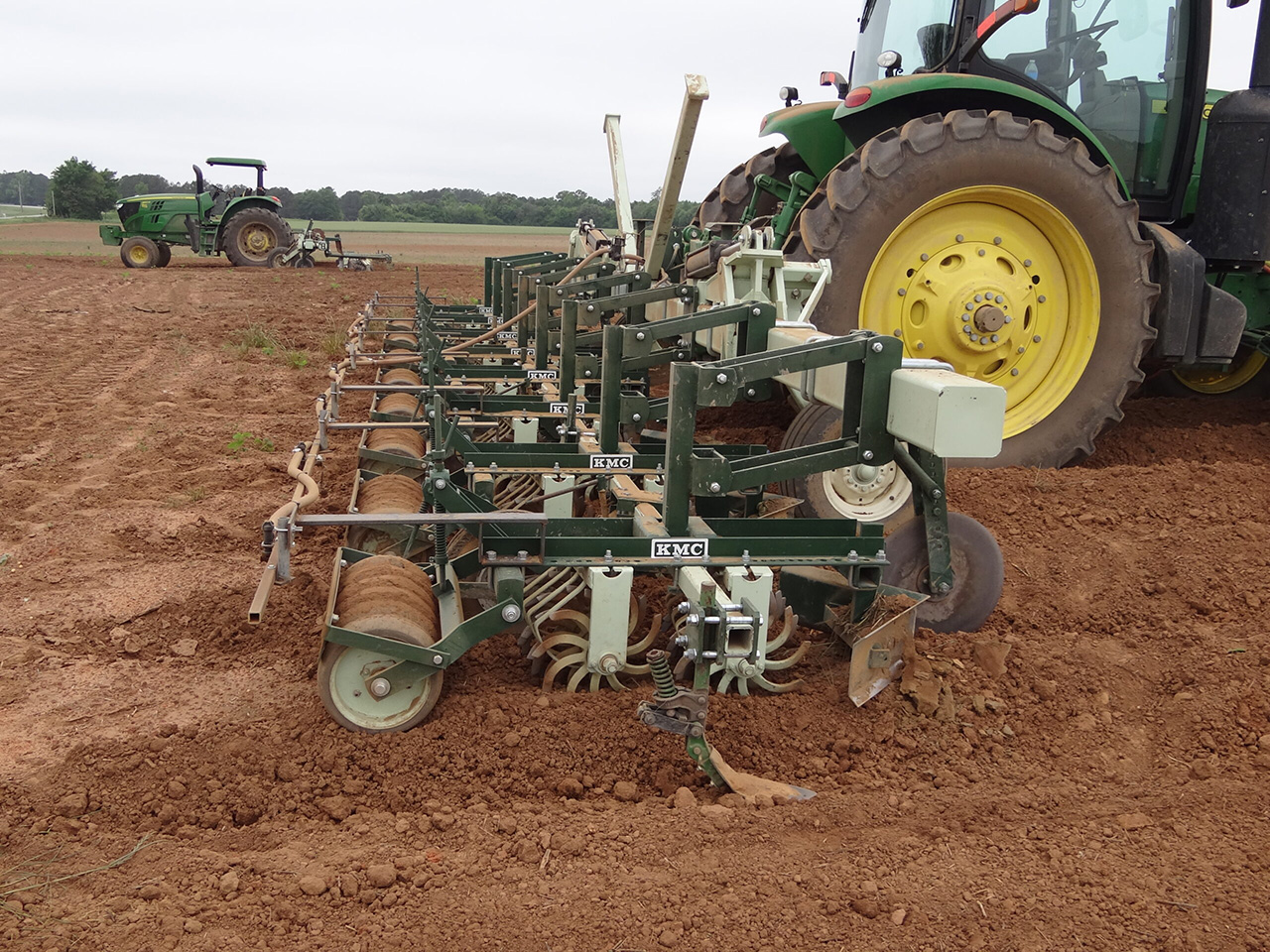

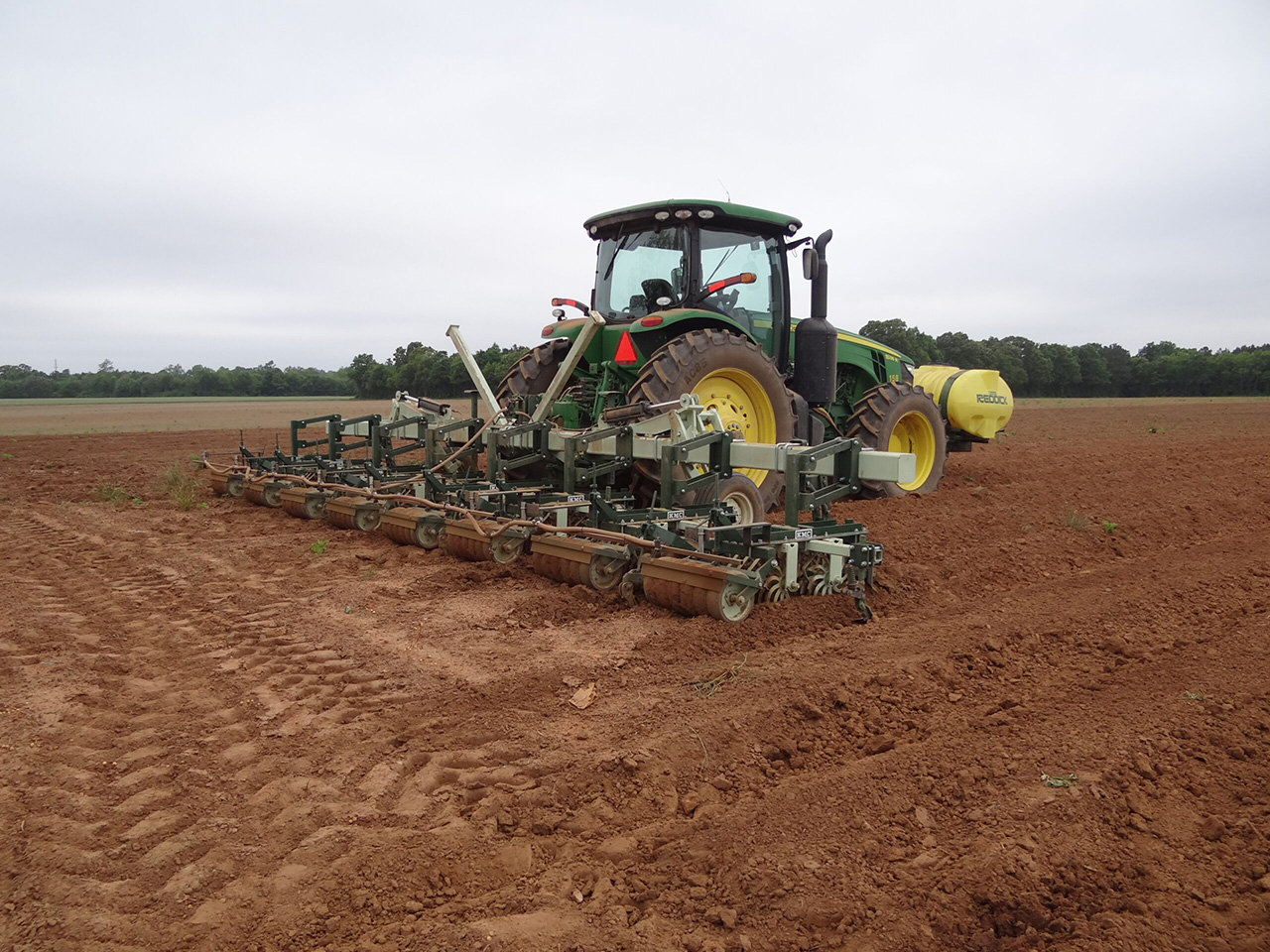

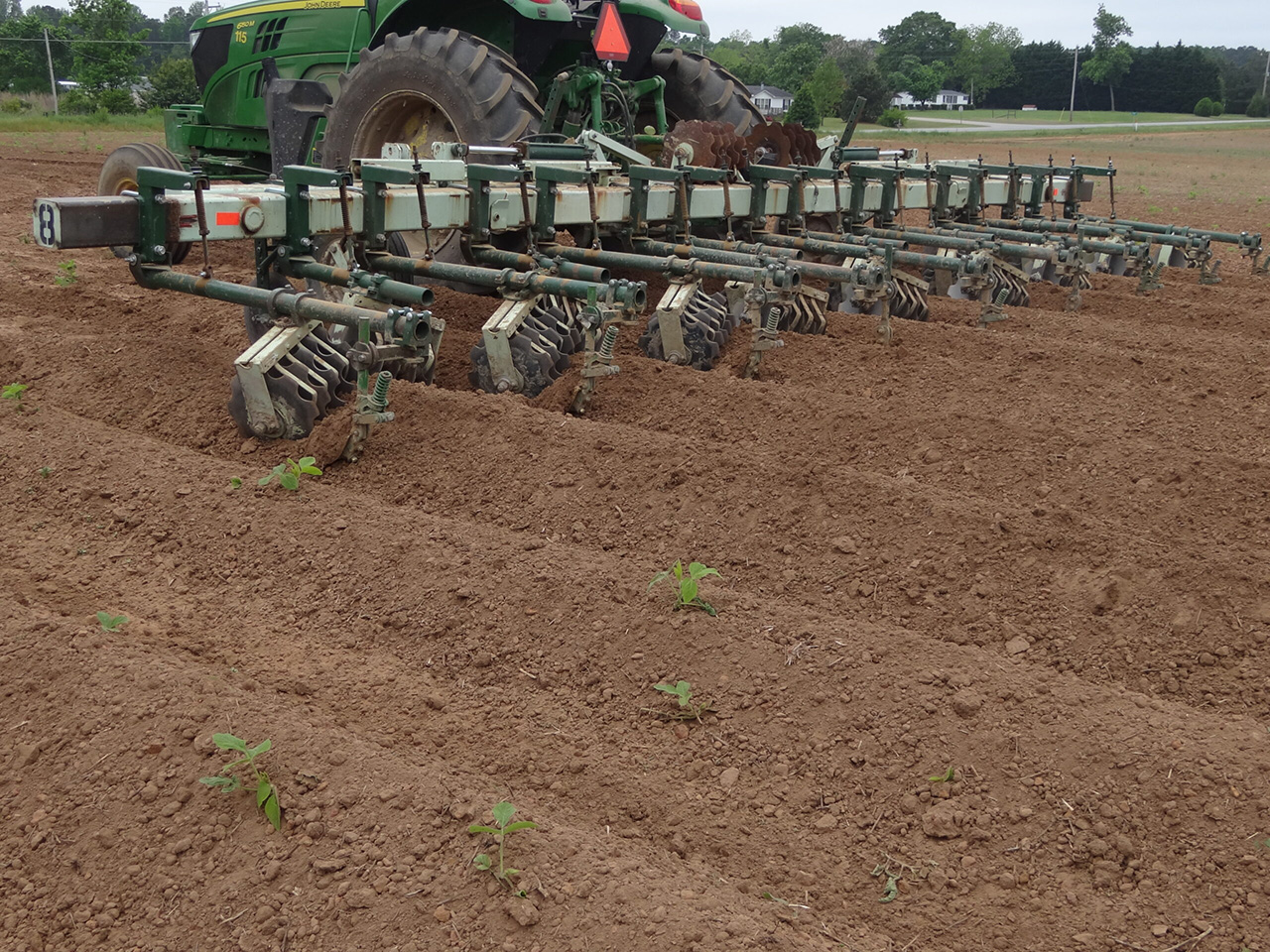

The KMC Bed Leveler / Incorporator is designed to provide cost saving advantages by leveling beds, applying and incorporating chemicals, and preparing seedbeds in one trip. Standard features include 7×7 Tool Bars with welded lower hitch, bolt-on hitch mast, and individual row units mounted to the tool bar by a heavy duty parallel linkage. “S” models consist of row units with heavy-duty bed knocker with gauge shoe, a pair of KMC 15″ spider gangs, and a spring loaded press wheel assembly to match row width. “K” models consist of row units with heavy-duty bed knocker, a pair of KMC 15″ spider gangs, a spring loaded press wheel assembly to match row width, 2 1/2″ sq. tubing to tie the row units together and a pair of 5×8 gauge wheels. Optional equipment , for either model, includes gauge wheels w/tires, coulters, parking stands, and balk plows.
$1.00
Description

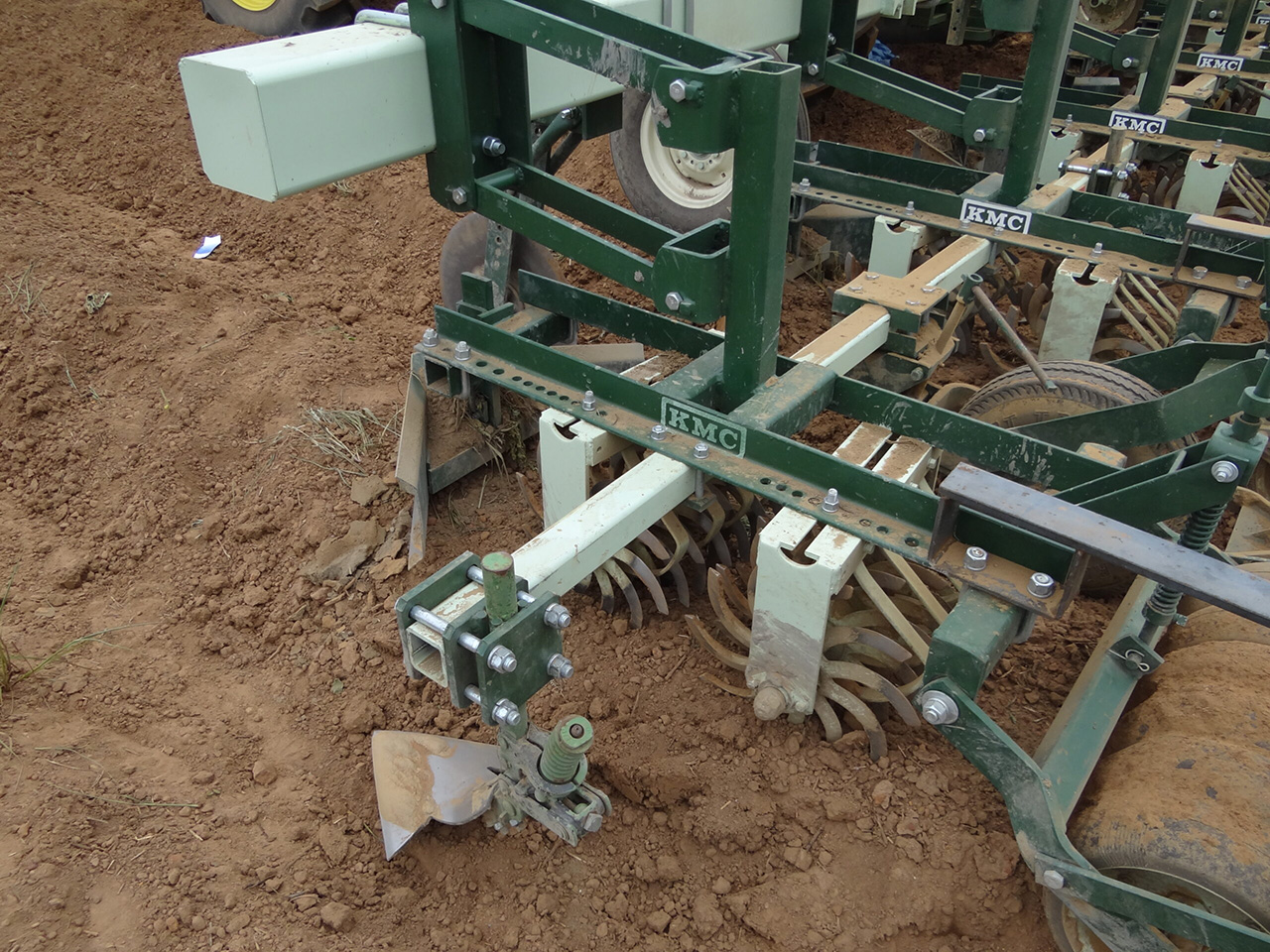

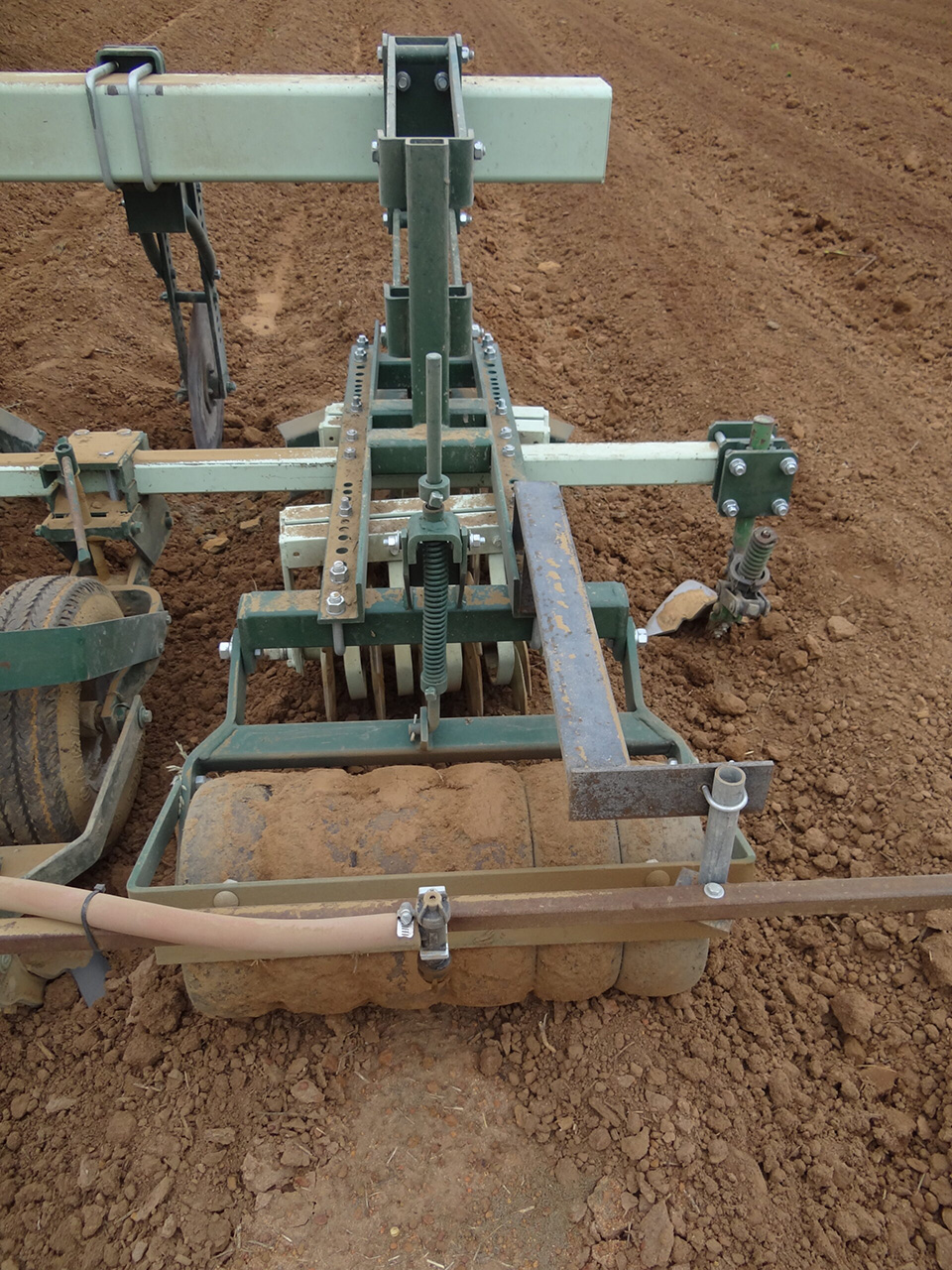

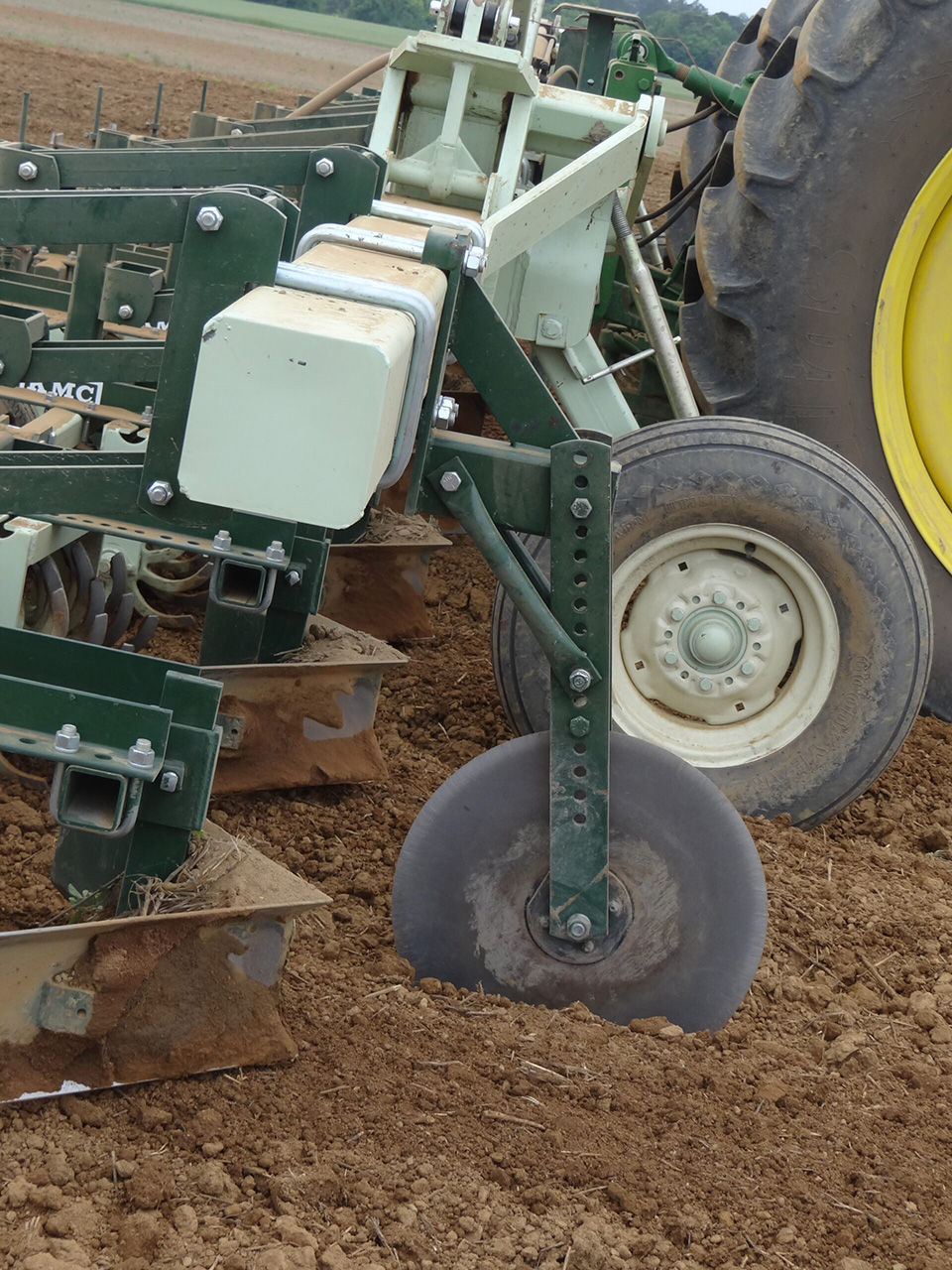

The KMC Bed Leveler / Incorporator is designed to provide cost saving advantages by leveling beds, applying and incorporating chemicals, and preparing seedbeds in one trip. Standard features include 7×7 Tool Bars with welded lower hitch, bolt-on hitch mast, and individual row units mounted to the tool bar by a heavy duty parallel linkage. “S” models consist of row units with heavy-duty bed knocker with gauge shoe, a pair of KMC 15″ spider gangs, and a spring loaded press wheel assembly to match row width. “K” models consist of row units with heavy-duty bed knocker, a pair of KMC 15″ spider gangs, a spring loaded press wheel assembly to match row width, 2 1/2″ sq. tubing to tie the row units together and a pair of 5×8 gauge wheels. Optional equipment , for either model, includes gauge wheels w/tires, coulters, parking stands, and balk plows.
Available Models
Rigid Bar Models | Description | Weight (IBS) | Transport Width |
38-102-2(36-40)S | 2 Row Unit for 36-40" Rows | 1,099 IBS | 102 in |
38-102-2(48)S | 2 Rows Unit for 48" Row | 1,121 IBS | 102 in |
38-168-4(36-40)S | 4 Rows Unit for 36-40" Rows | 2,135 IBS | 168 in |
38-168-4(46-48)S | 4 Rows Unit for 48" Rows | 2,179 IBS | 168 in |
38-248-4(36-40)S | 6 Rows Unit for 36-40" Rows | 3,121 IBS | 248 in |
38-FTB-8(36-40)S | 8 Row Flat-Fold Unit for 36-40" Rows | 4,670 IBS | |
38-260-8(30)S | 8 Row Unit for 30" Rows | 4,201 IBS | 260 in |
38-FTB-12(36-38)S | 12 Row Unit for 36-38" Rows | 7,371 IBS | |
38-102-2(36-40)K | 2 Row Unit for 36-40" Rows | 1,276 IBS | 102 in |
38-102-2(48)K | 2 Row Unit for 48" Rows | 1,308 IBS | 102 in |
38-168-4(36-40)K | 4 Rows Unit for 36-40" Rows | 2,342 IBS | 168 in |
38-168-4(46-48)K | 4 Row Unit for 48" Rows | 2,403 IBS | 168 in |
38-248-6(36-40)K | 6 Row Unit for 36-40" Rows | 3,358 IBS | 248 in |
38-FTB-8(36-40)K | 8 Row Flat-Fold Unit for 36-40" Rows | 5,071 IBS | |
38-260-8(30)K | 8 Row Unit for 30" Rows | 4,422 IBS | 260 in |
38-FTB-12(36-38)K | 12 Row Unit for 36-38" Rows | 7,801 IBS |
