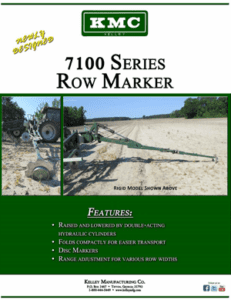

7100 Series Row Markers

7100 Series Row Markers

KMC has several styles of hydraulic row markers to fit many different types of tool bars.

Description

KMC has several styles of hydraulic row markers to fit many different types of tool bars.
Key Features of Hydraulic Row Markers
  • Raised and lowered by double-acting hydraulic cyliners
  • Compact fold to reduce overall transport width
  • 16″ diamter notched isc marker blade, 1/4 inch thick with tri-ply bearings and steel band depth gauge
  • Range adjustments for various widths
  • Rigid tool bar models, 2 1/2 inch x 8 inch double acting cylinder
  • Stack Fold tool bar models, 3 inch x 16 inch double acting cylinder

Marking Distance

Marking Distance

Model Number

Rows

Row Spacing
(Inches)

Toolbar Half Length
(inches)

Text

Distance to Center
(Inches)

Marker Length
(Inches)

Marks 215- 250

71SR (40) 12/(30) 16

16

30

231

480

249

12

40

231

480

249

12

38

214

456

242

12

38

214

456

242

Marks 185-220

771SR (30) 12

12

30

231

480

249

8

48

177

384

207

8

46

177

368

191

Marks 140-175

71SR (40)8

8

40

147

320

173

71SR (36-38) 8

8

38

147

304

157

8

36

147

288

141

Marks 85 - 120

71RR (40) 6/(30) 8

8

30

125

240

115

6

40

125

240

115

71RR (36-38) 6

6

38

115

228

113

6

36

115

216

101

71RR (30) 6

6

30

91

180

89

4

48

91

192

101

Marks 60- 80

71RR (36 -40) 4

4

46

91

184

93

4

40

80

160

80

4

38

80

152

72

4

36

80

144

64

Available Models for Hydraulic Row Markers

Model #

Description

71RR (36-40) 4

4 Rows (36" to 40" Rows) for Rigid Tool Bars

71RR (30) 6

6 Row (30" Rows) or 4 Row (46" to 48" Rows) for Rigid Tool Bars

71RR (36-38) 6

6 Row (36" to 38" Rows) for Rigid Tool Bars

71RR (40)/6(30) 8

6 Row (40" Rows) or 8 Row (30" Rows) for Rigid Tool Bars

71SR (36-38) 8

8 Row (36" to 38" Rows) for Stack Fold Tool Bars

71SR (40) 8

8 Row (40" Rows) for Stack Fold Tool Bars

71SR (36-38) 12

12 Row (30" Rows) or 8 Row (46" to 48" Rows) for Stack Fold Tool Bars

71SR (40)/(30) 16

12 Row (40" Rows) or 16 Row (30" Rows) for Stack Fold Tool Bars
