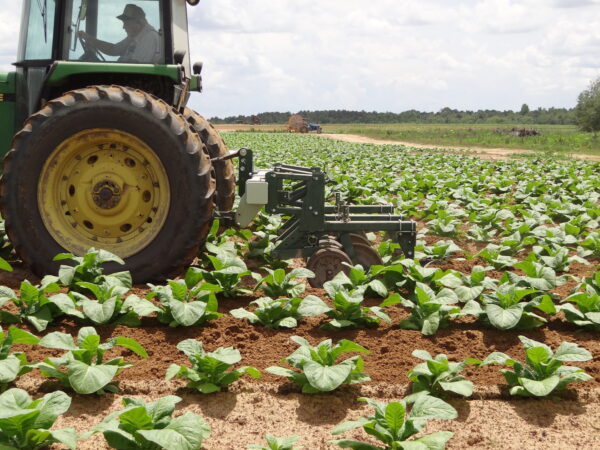

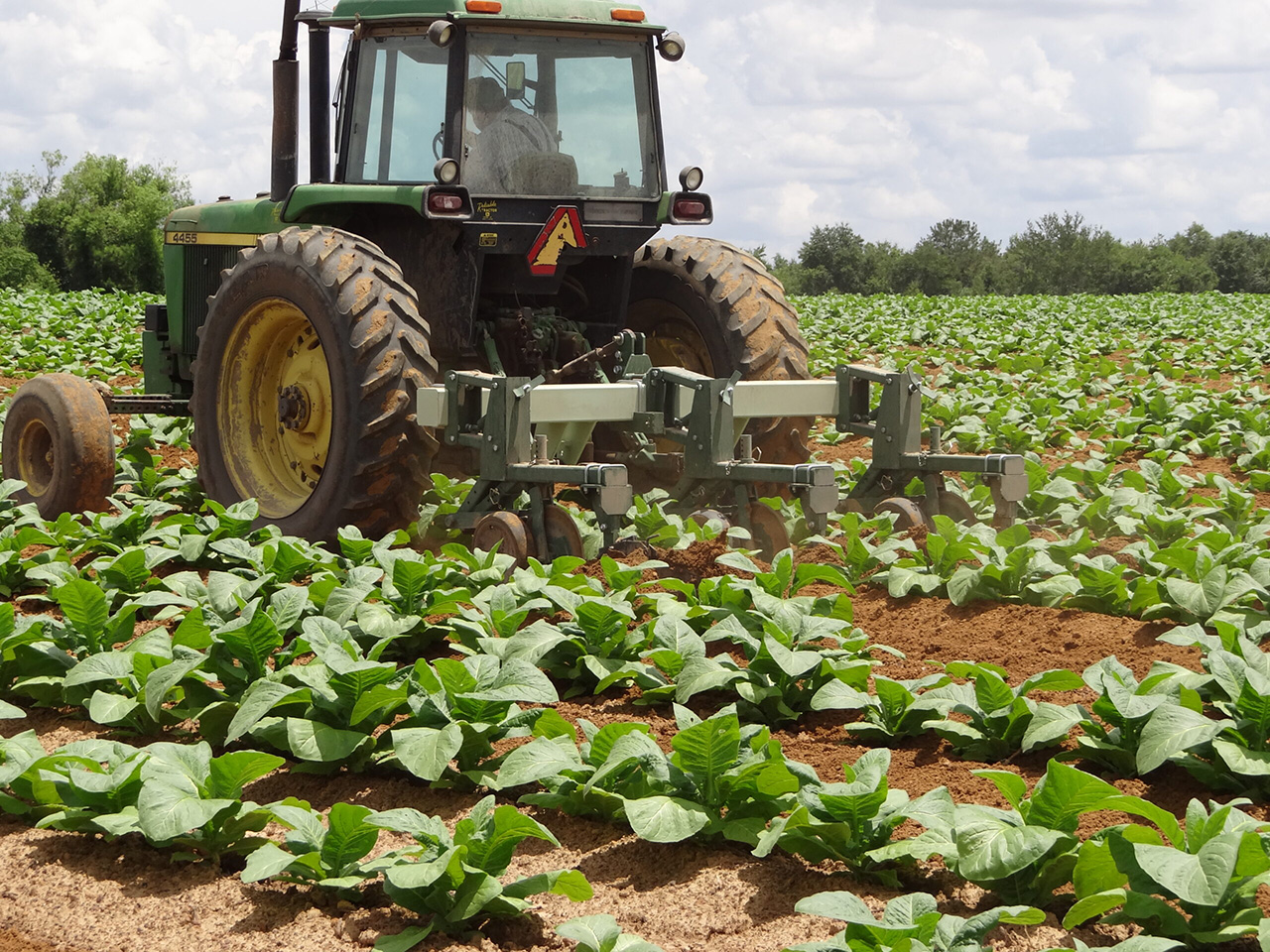

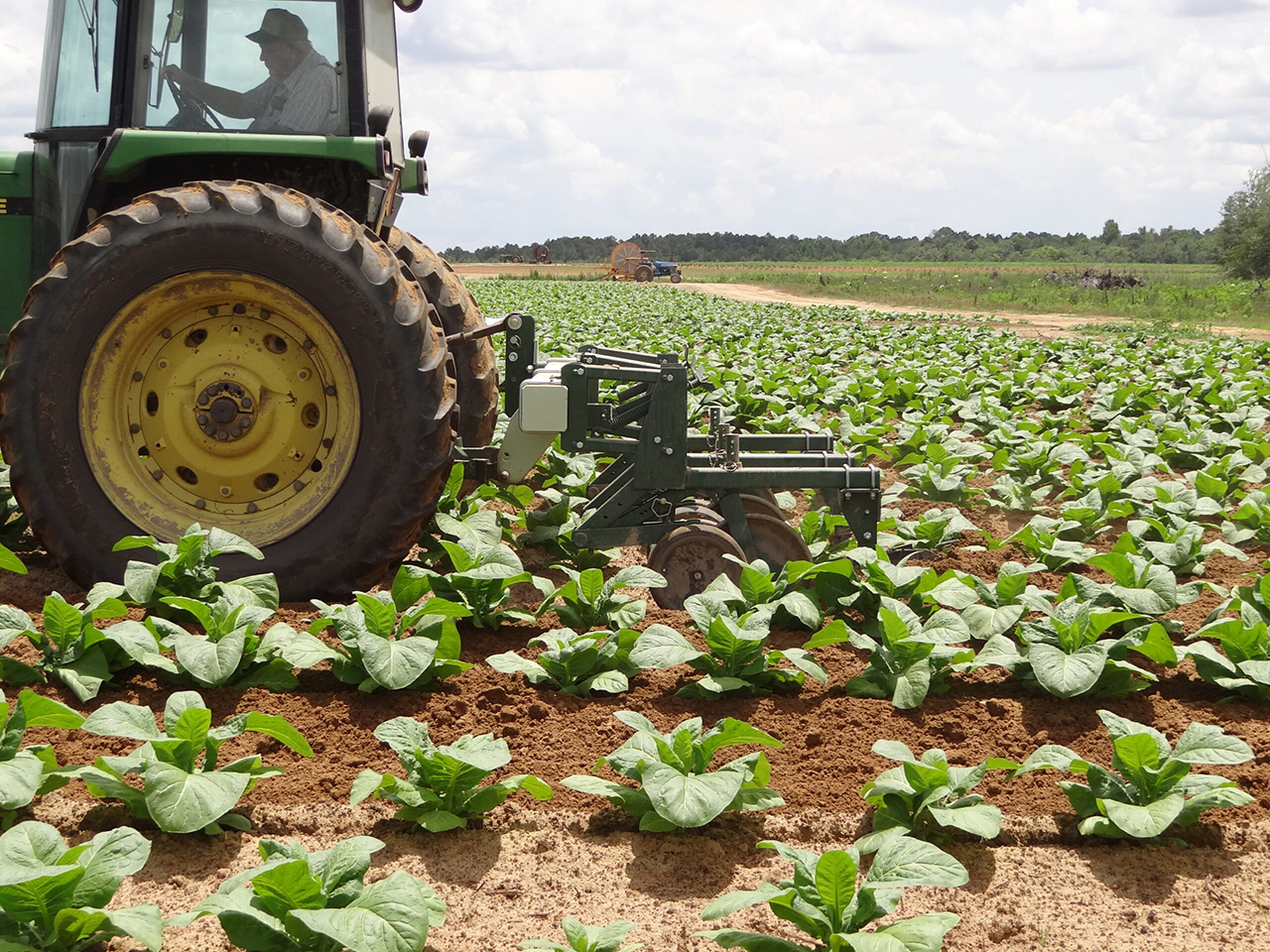

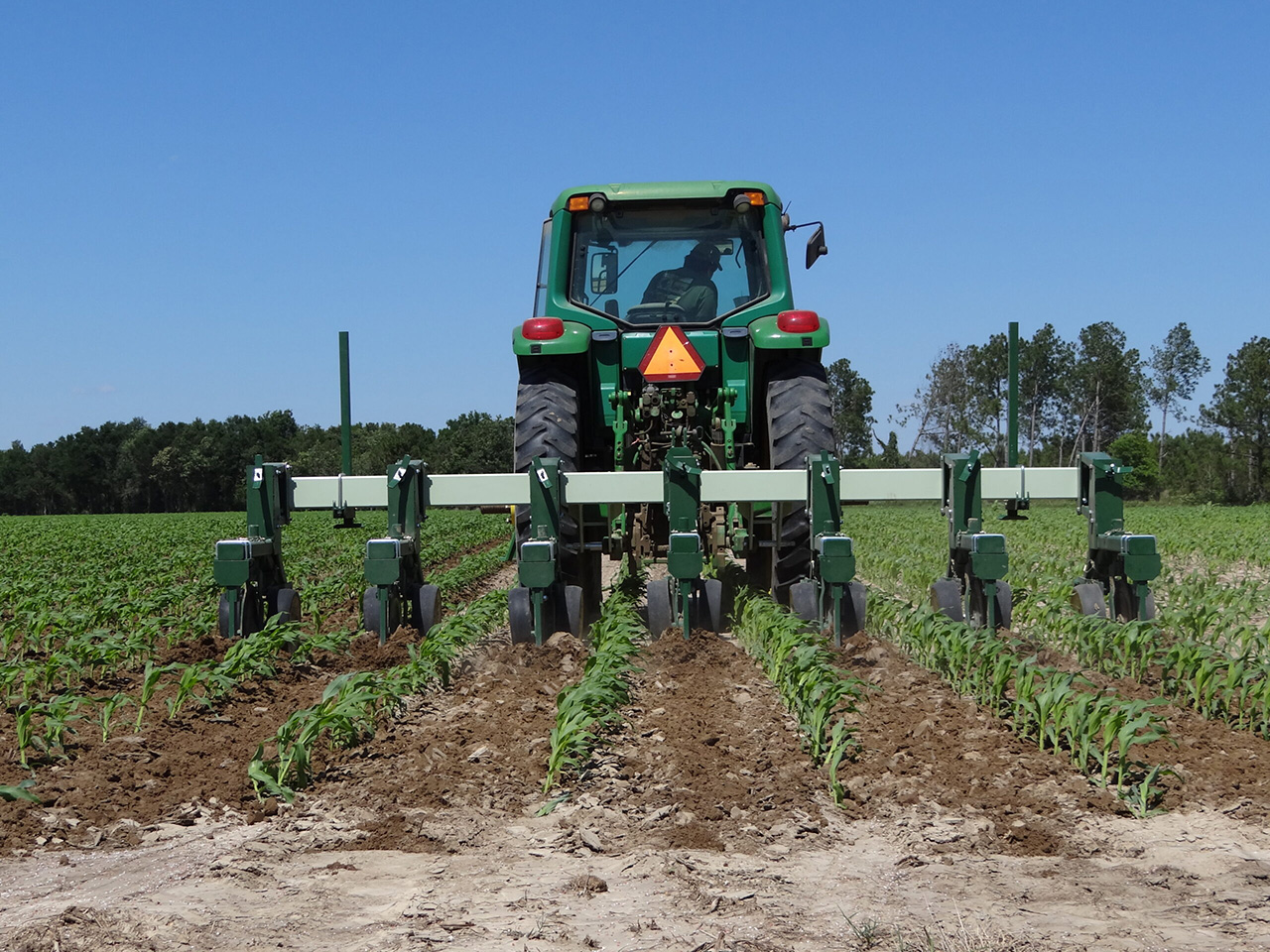

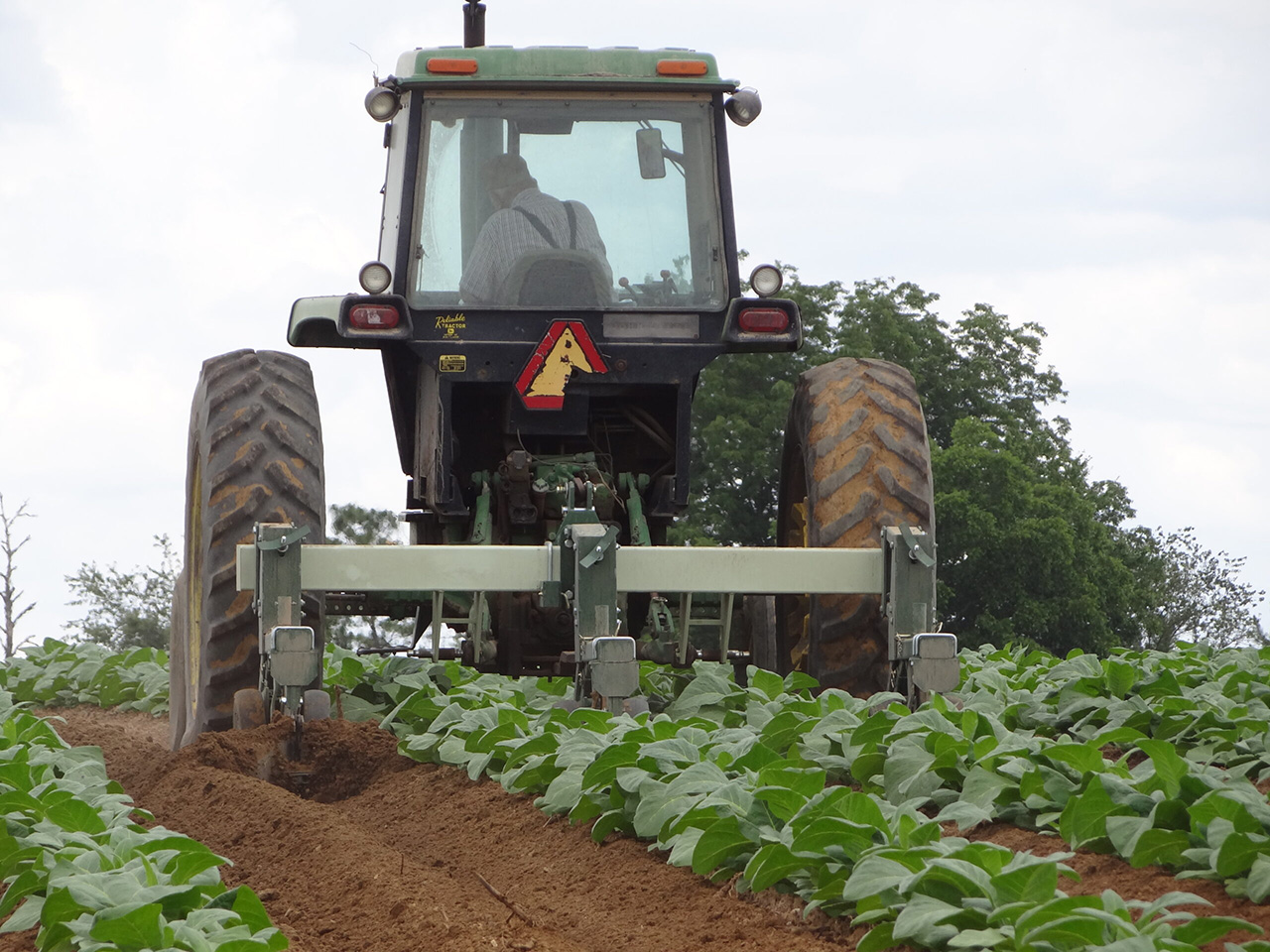

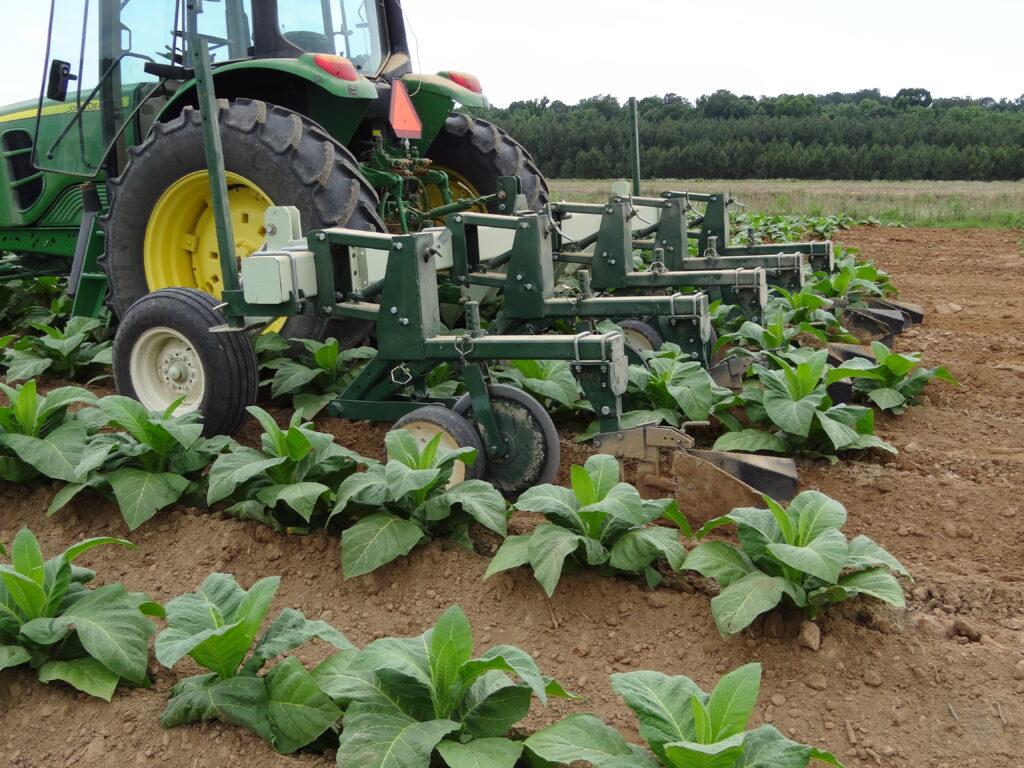

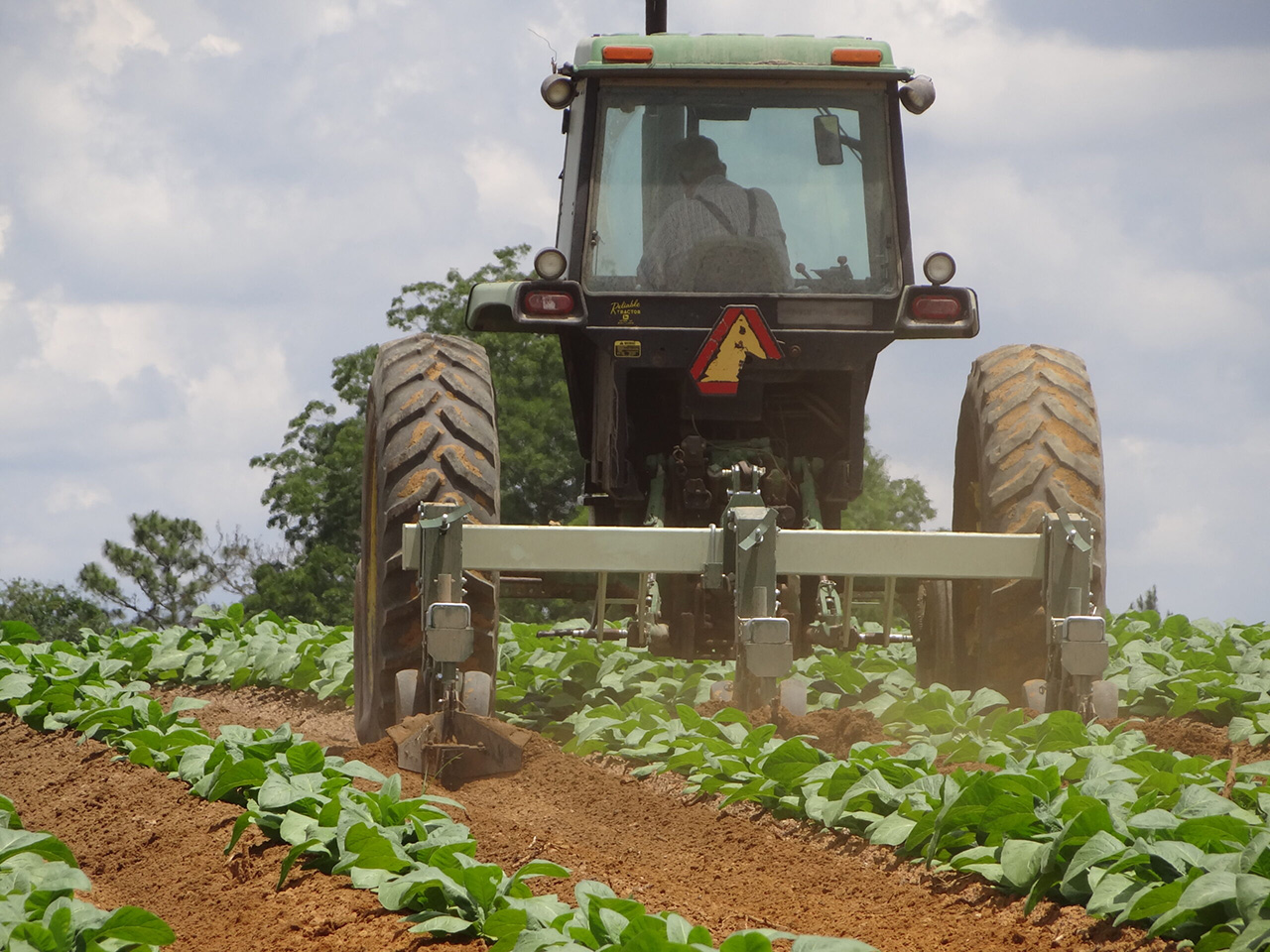

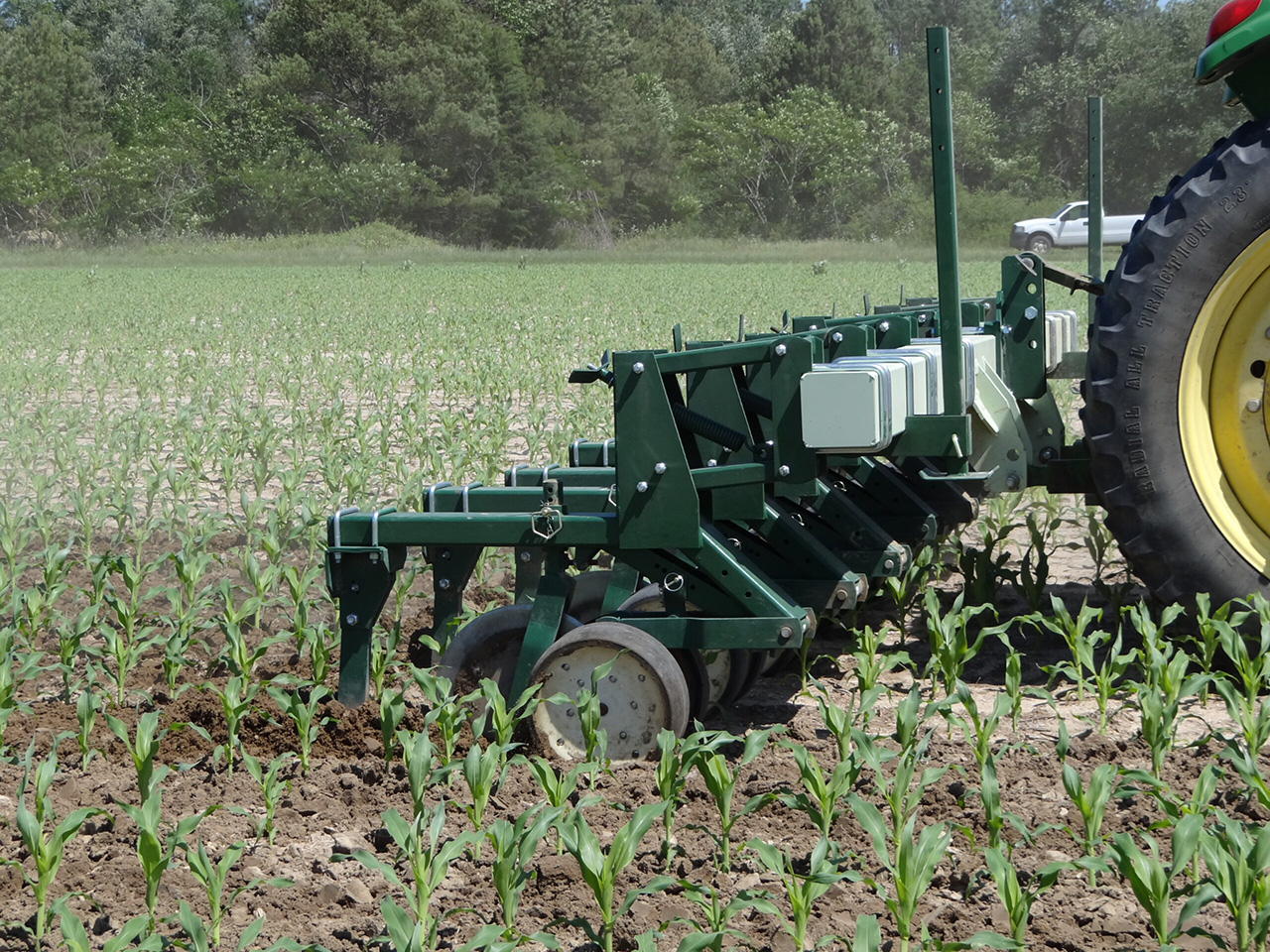

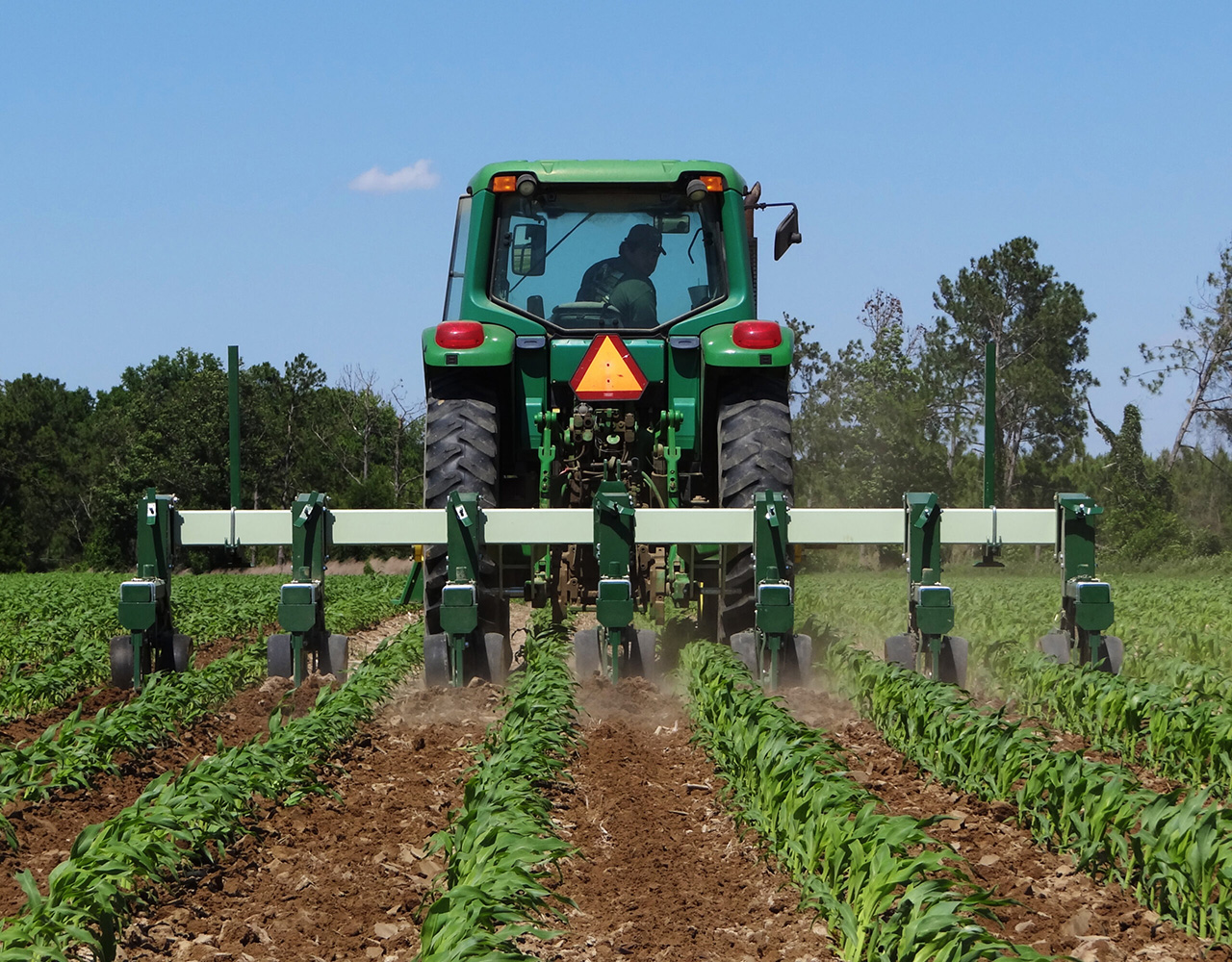

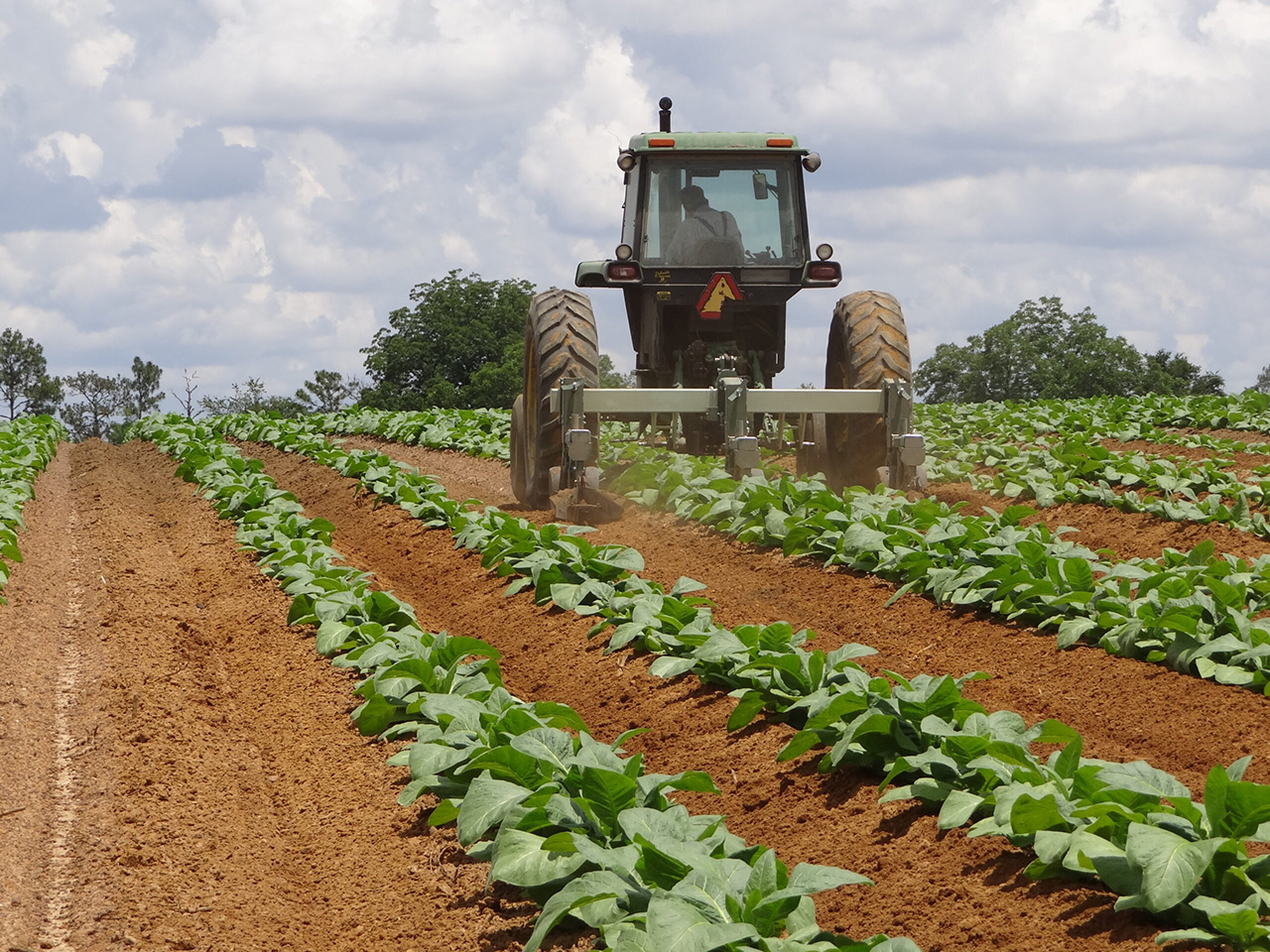

High Speed Cultivation at its very finest! The KMC Wide Sweep Cultivator is available in 2, 4, 6, 8 and 12 row models. Each model comes with one wide sweep gang per middle. Rear shanks are designed to accept either shares or sweeps.

Description

High Speed Cultivation at its very finest! The KMC Wide Sweep Cultivator is available in 2, 4, 6, 8 and 12 row models. Each model comes with one wide sweep gang per middle. Rear shanks are designed to accept either shares or sweeps.
Key Features
  • Tough, rugged gang construction with heavy-duty box-type parallel linkage assures precision cultivation in a wide range of conditions
  • Dual, easy-to-adjust gauge wheels for precision depth control in different soil types
  • Smooth trash coulters with easy pin-type vertical adjustment
  • Adjustable 3-position plow standards accept single sweeps or two-piece reversible shares

Benefits

  • One pass cultivation and fertilizer option
  • Floating spray shield available for plant protection

Optional Accessories

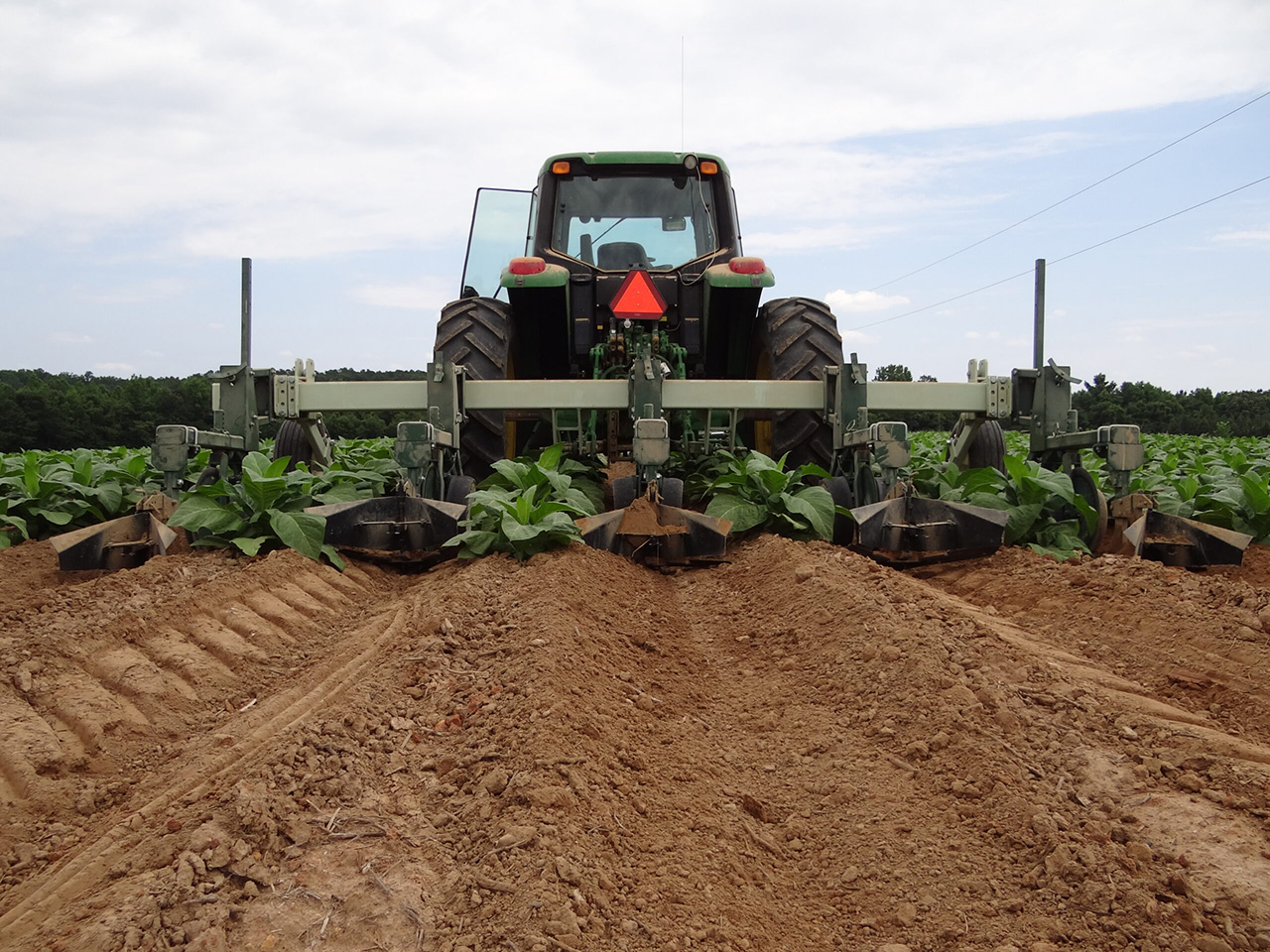

  • Easily adjustable Ridger Wing
  • Fertilizer Attachment-Ground or Hydraulic drive with 550 lb hopp
Options:
  • Screw-type gauge wheels w/8 ply, 9.5L-15SL tires
  • Rigid, 1×3 gauge wheels w/tires
  • Weight rack, pair

Available Models

Units With Reversible Share Points

Description

Weight (IBS)

23-102RS-2

2 Row Rigid for 30"-40" Rows

1,331

23-102RS-2W

2 Row Rigids for 48" Rows

1,331

23-168RS-4

4 Rows Rigid for 30"-40" Rows

2,017

23-208RS-4W

4 Row Rigid for 48" Rows

2,102

23-188RS-6

6 Row Rigid for 30" Rows

2,703

23-248RS-6

6 Row Rigid for 32"-40" Rows

2,803

23-FFRS-6

6 Row Flat Fold for 34"-40" Rows

3,469

23-248-RS-8

8 Row Rigid for 30" Rows

3,401

23-FFRS-8

8 Row Flat Fold for 34"-40" Rows

4,267

23-FFRS-12

12 Row Flat Fold for 36"-38" Rows

6,322
