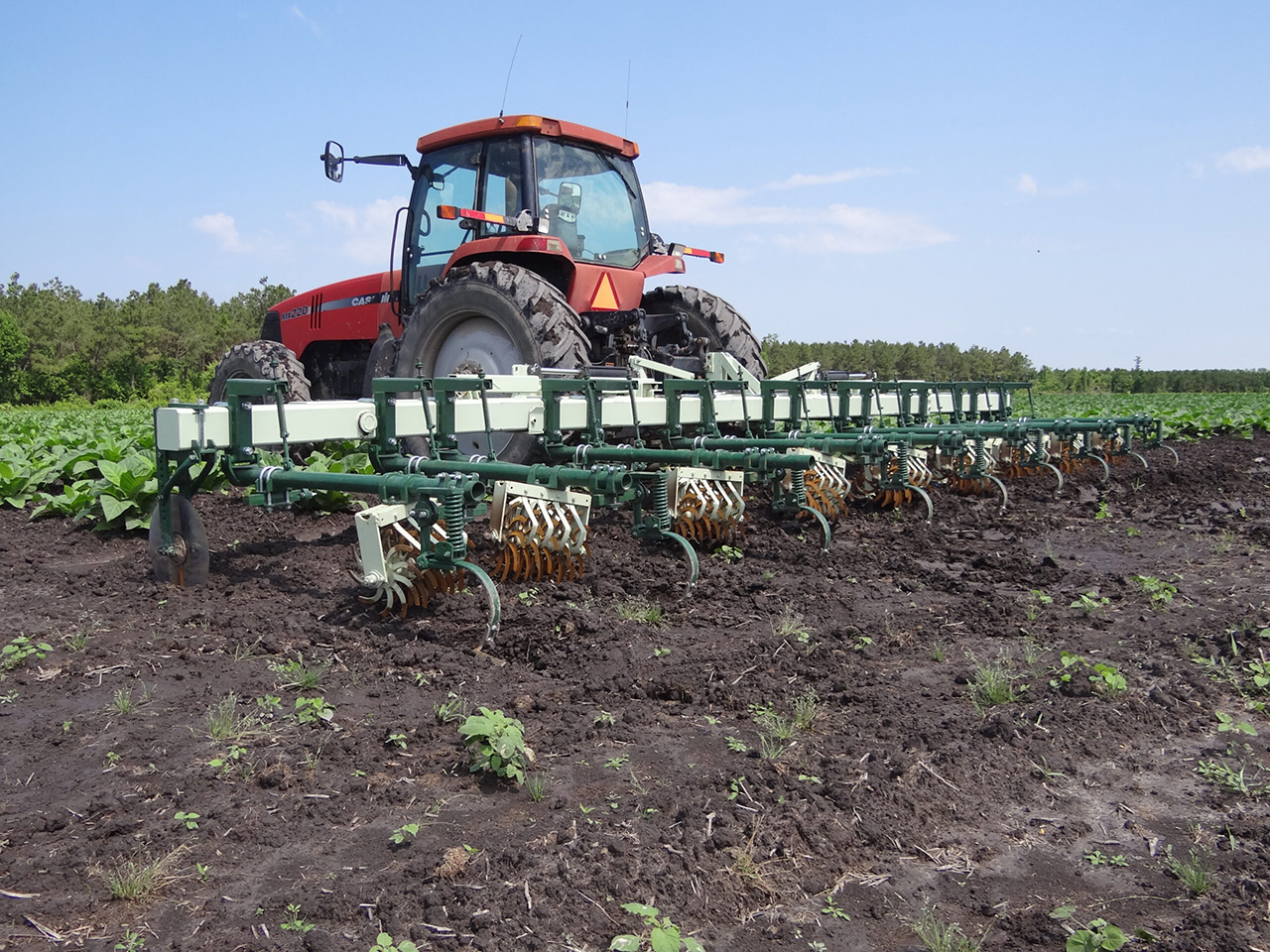

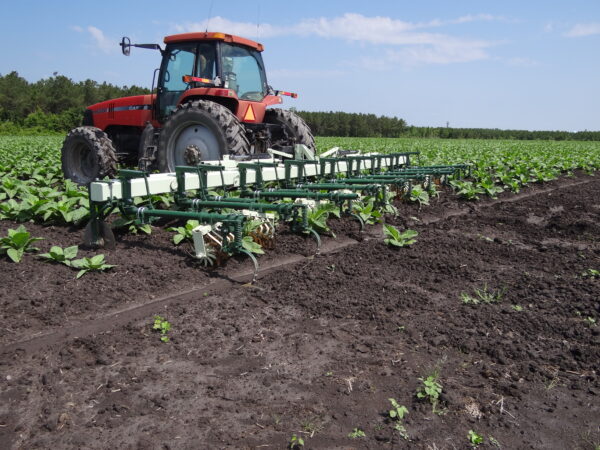

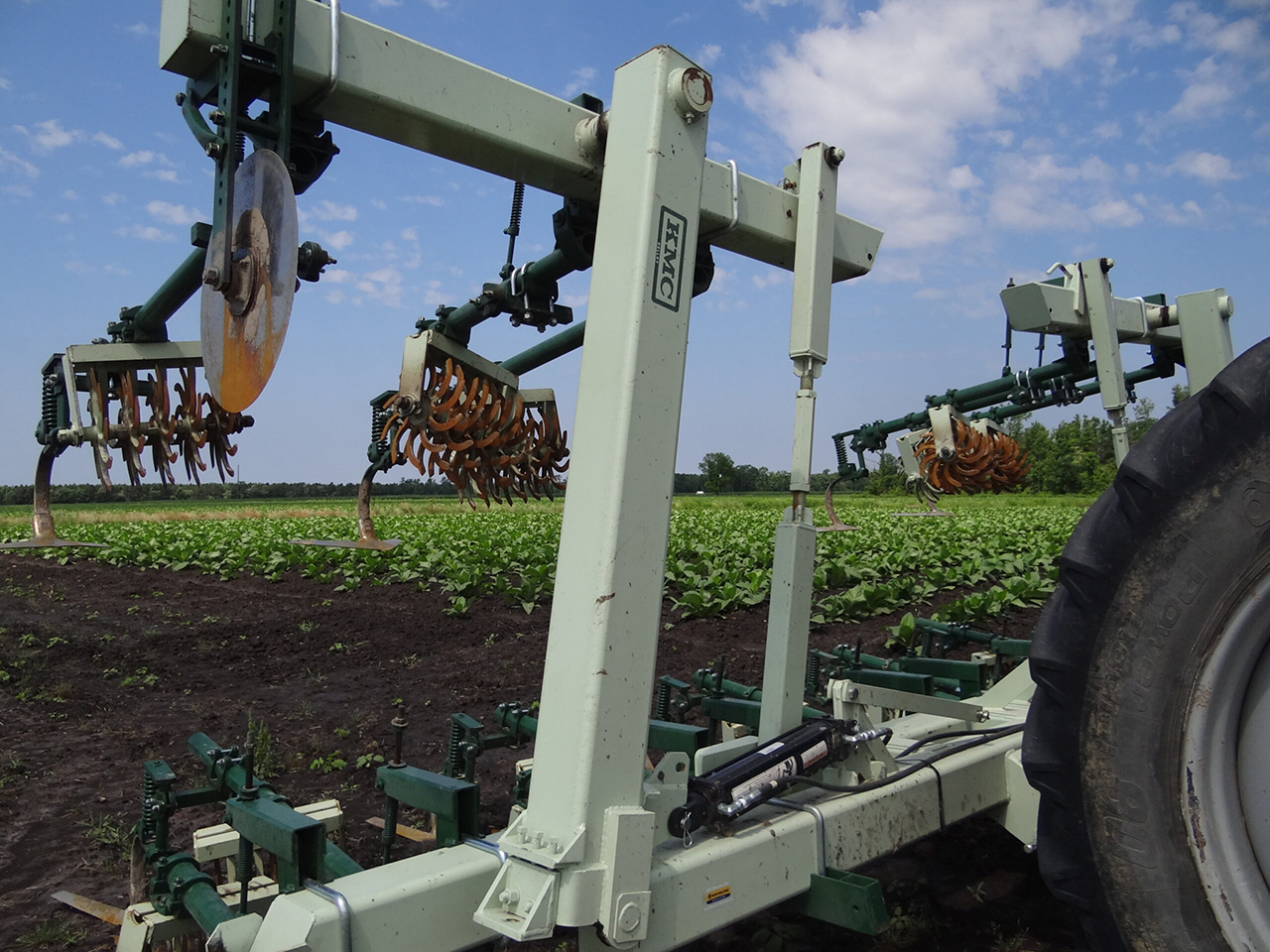

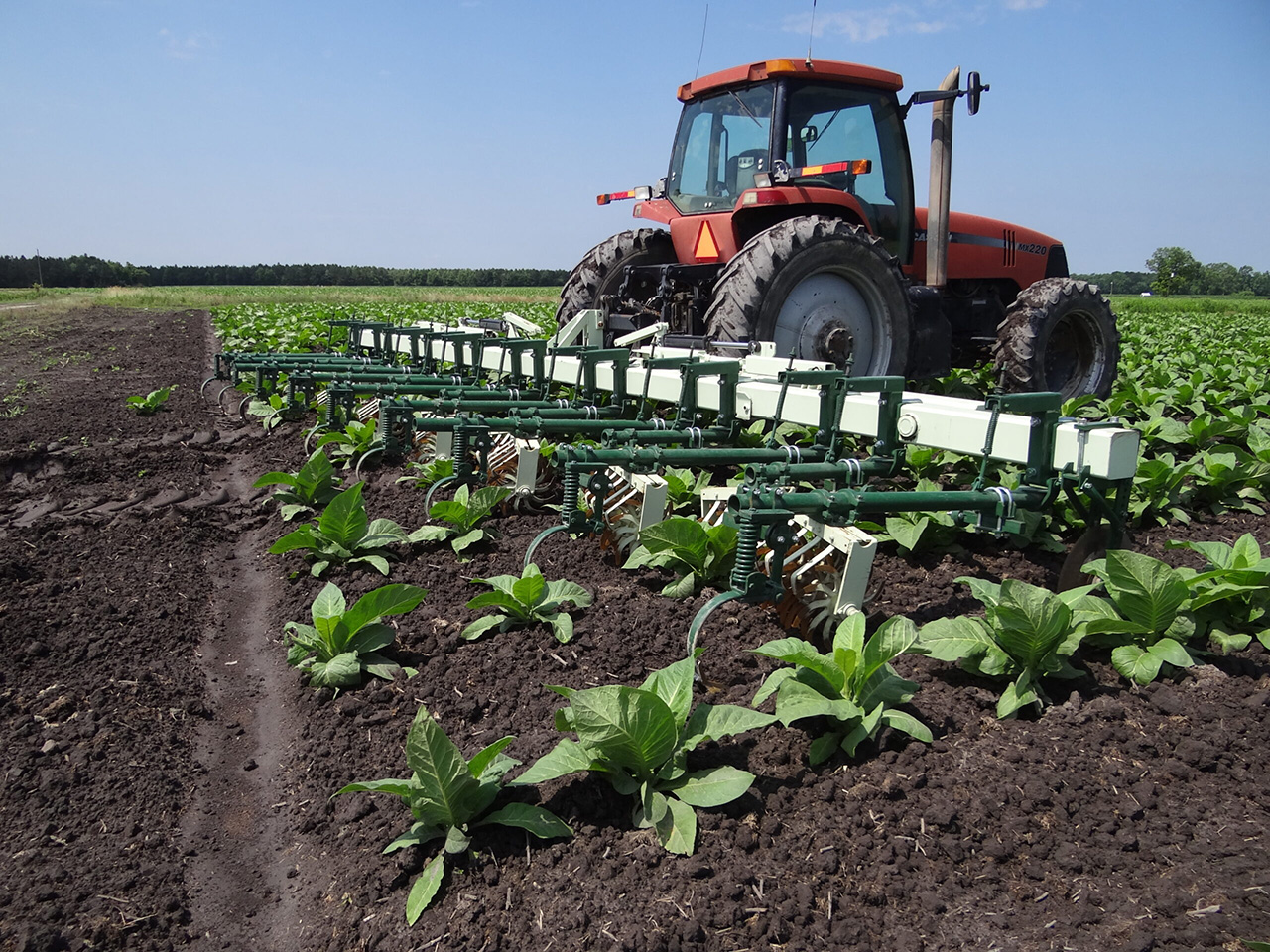

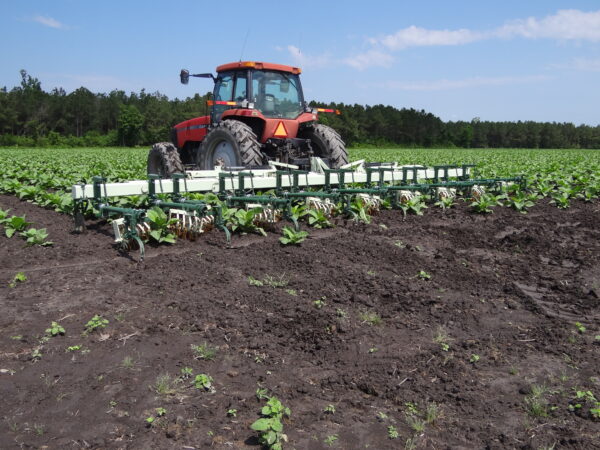

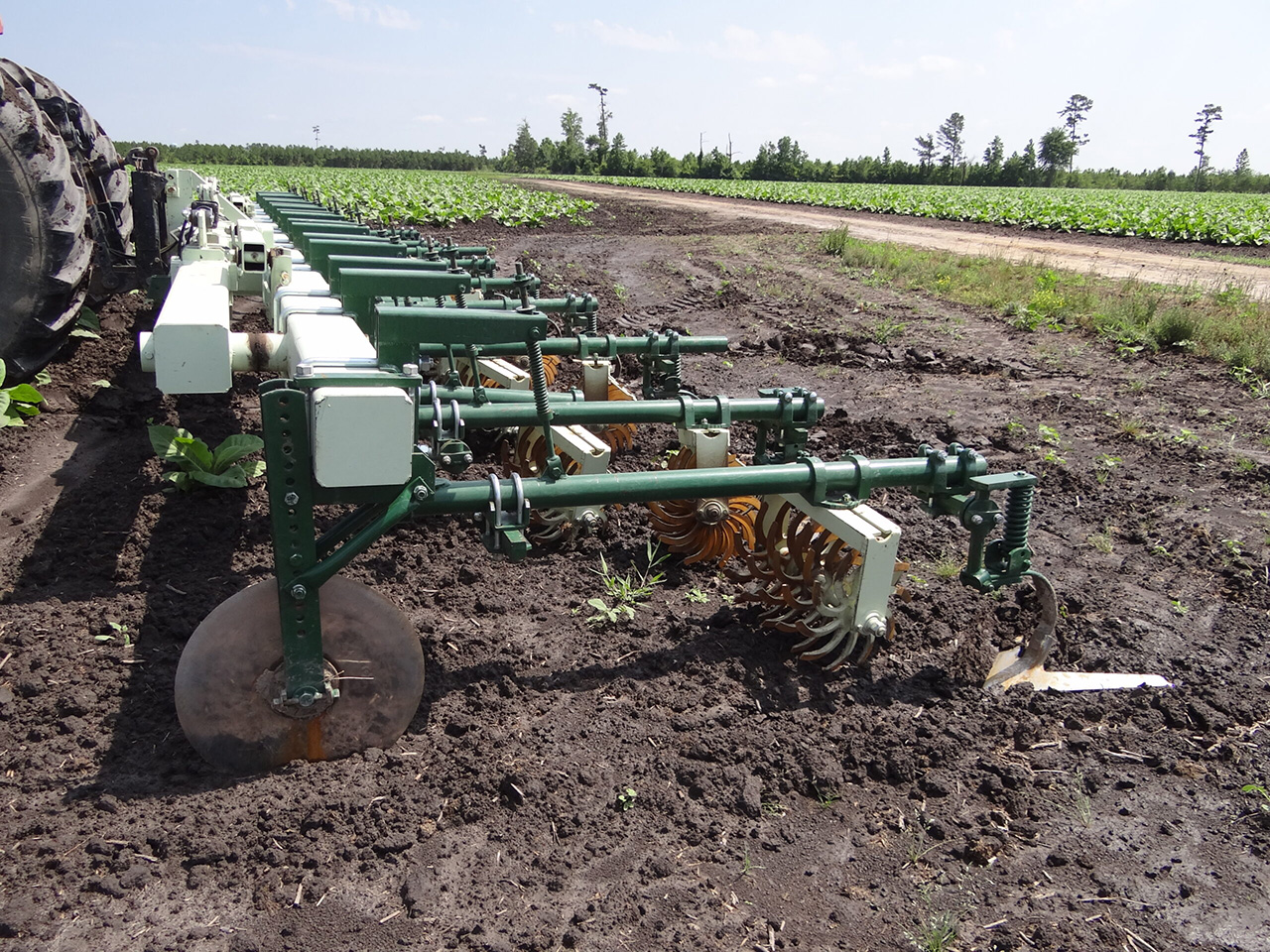

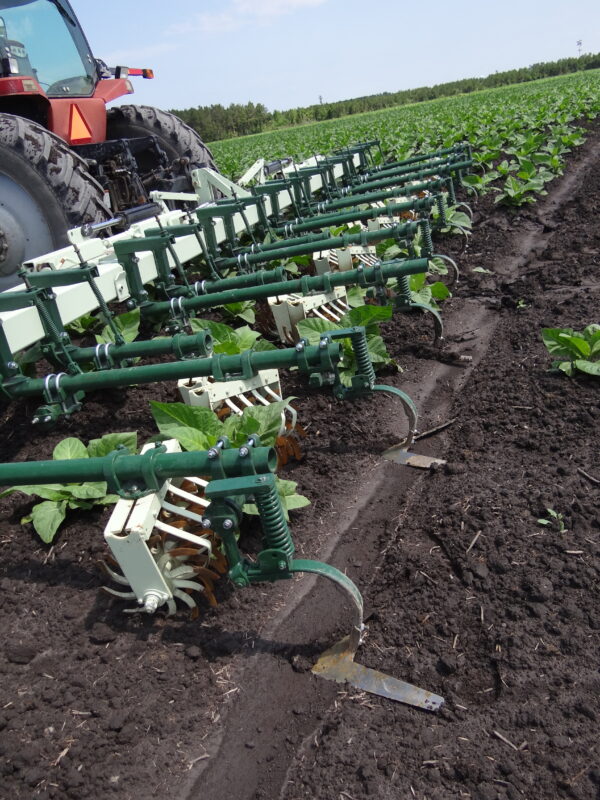

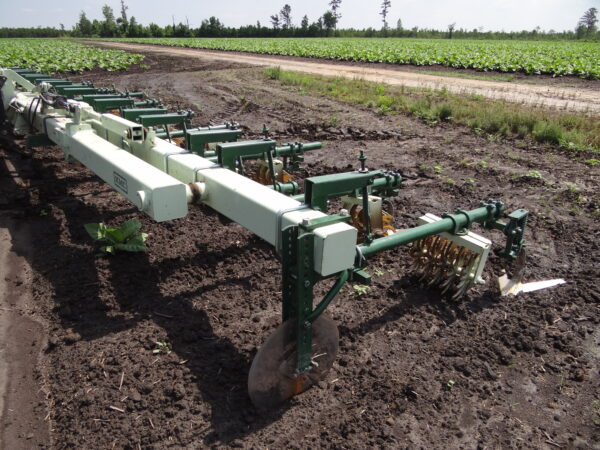

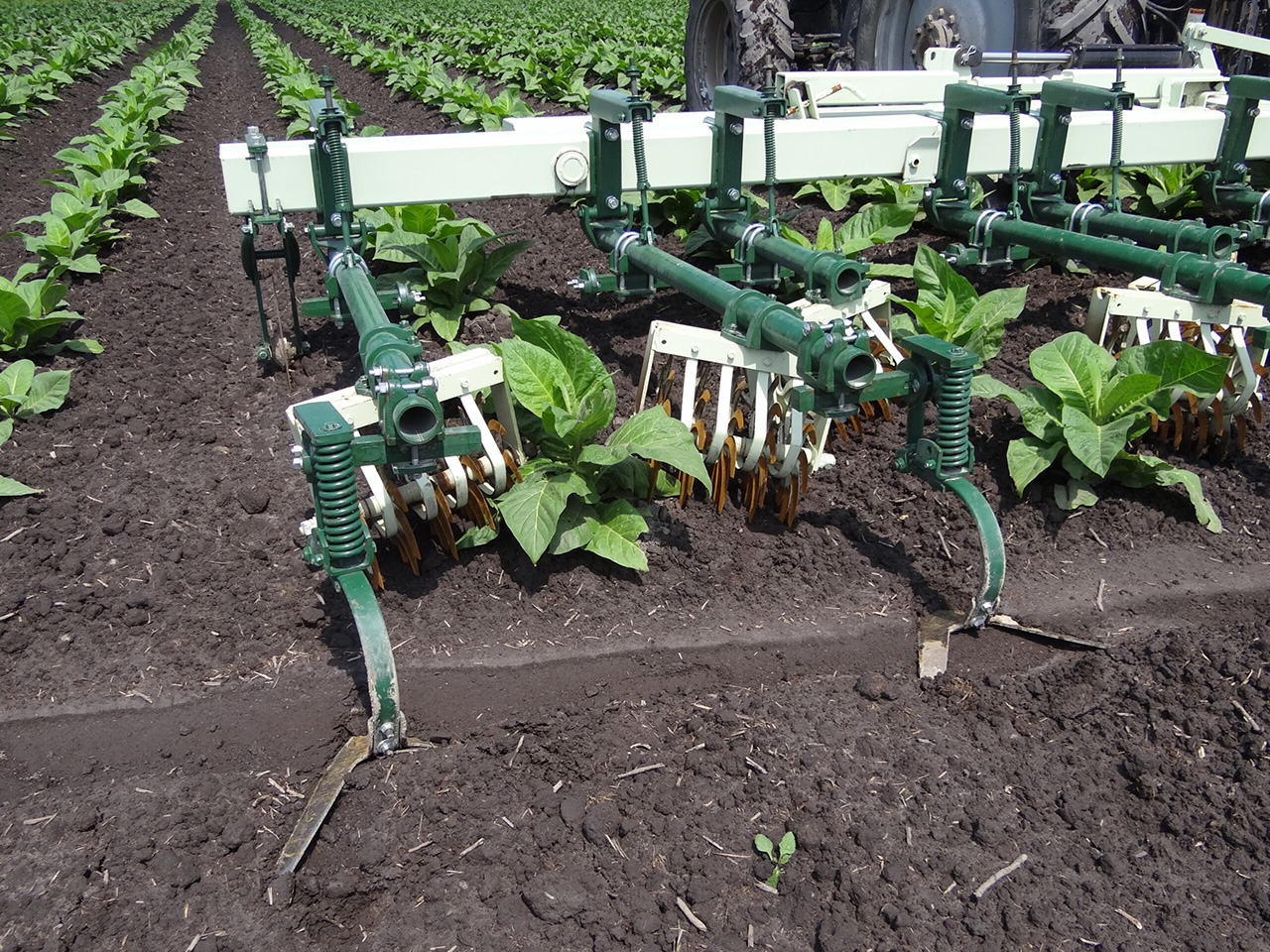

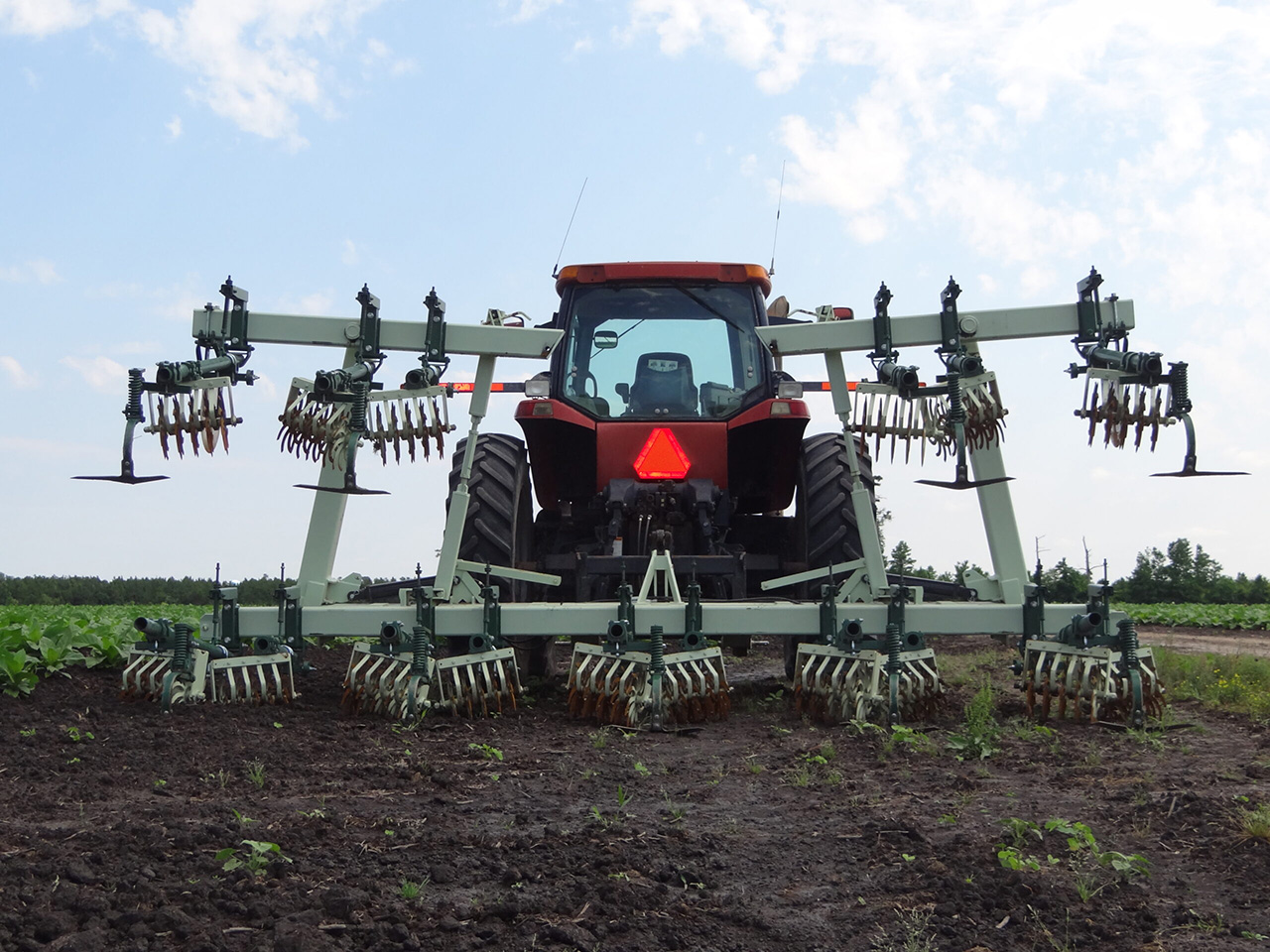

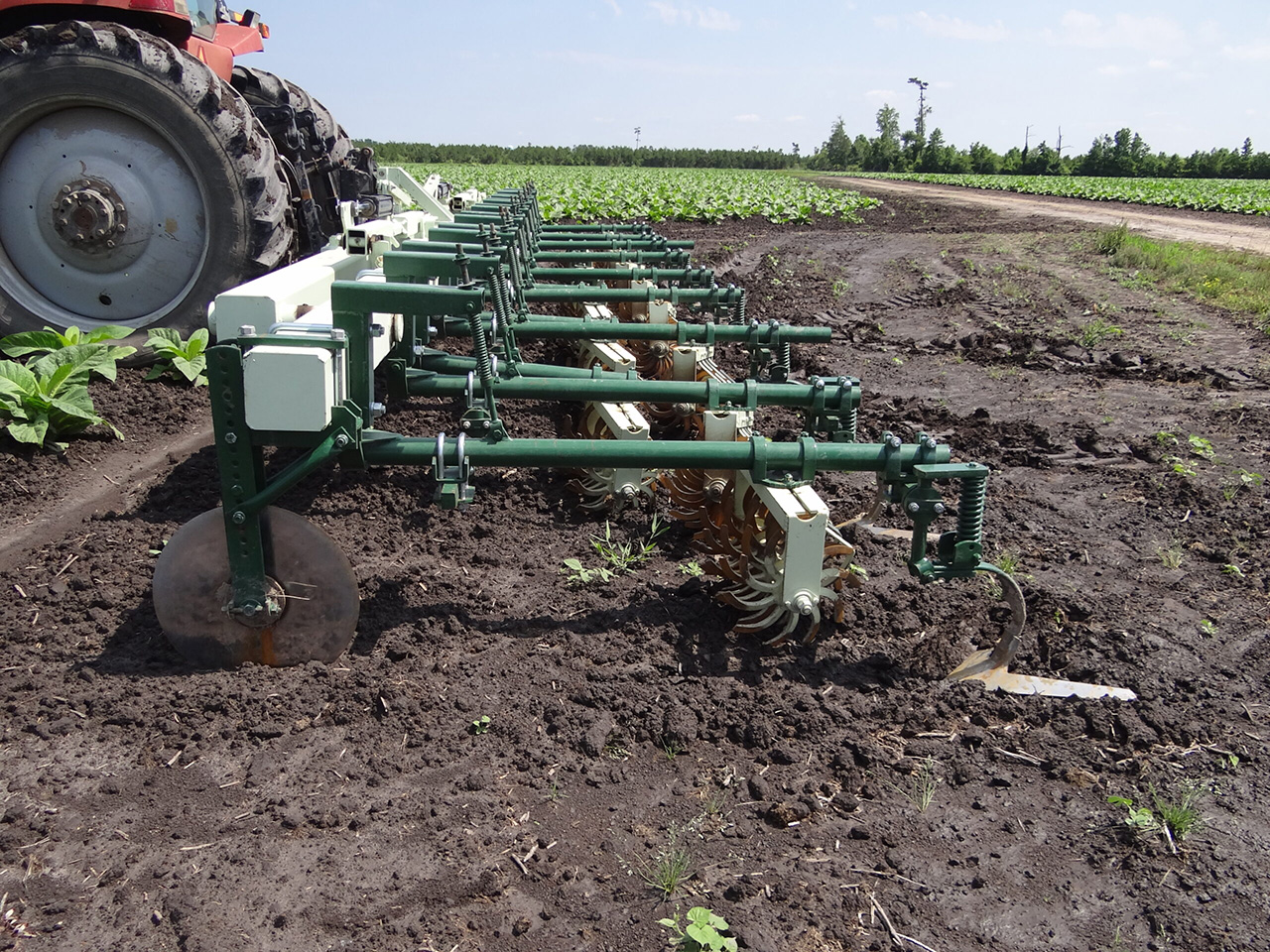

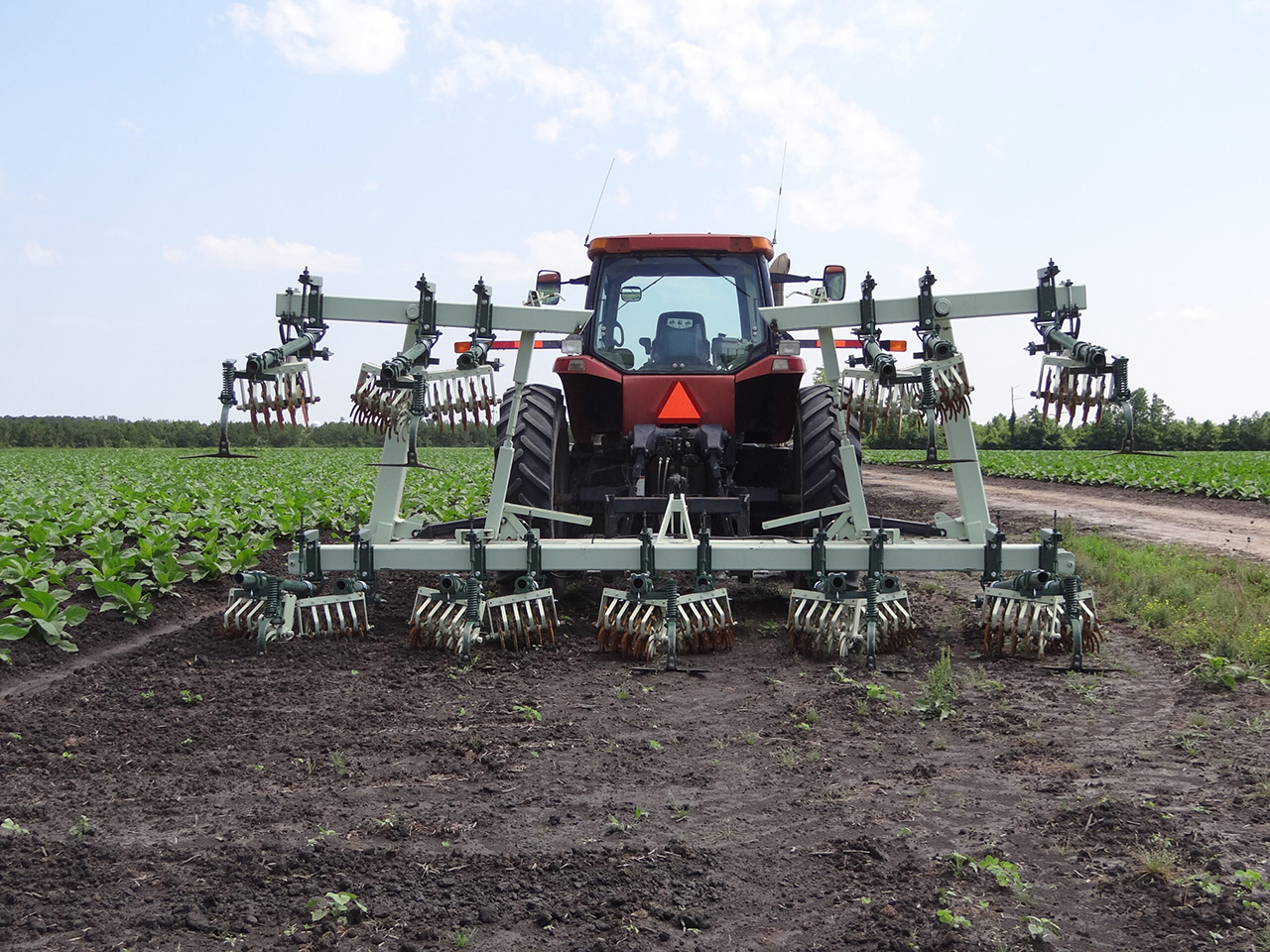

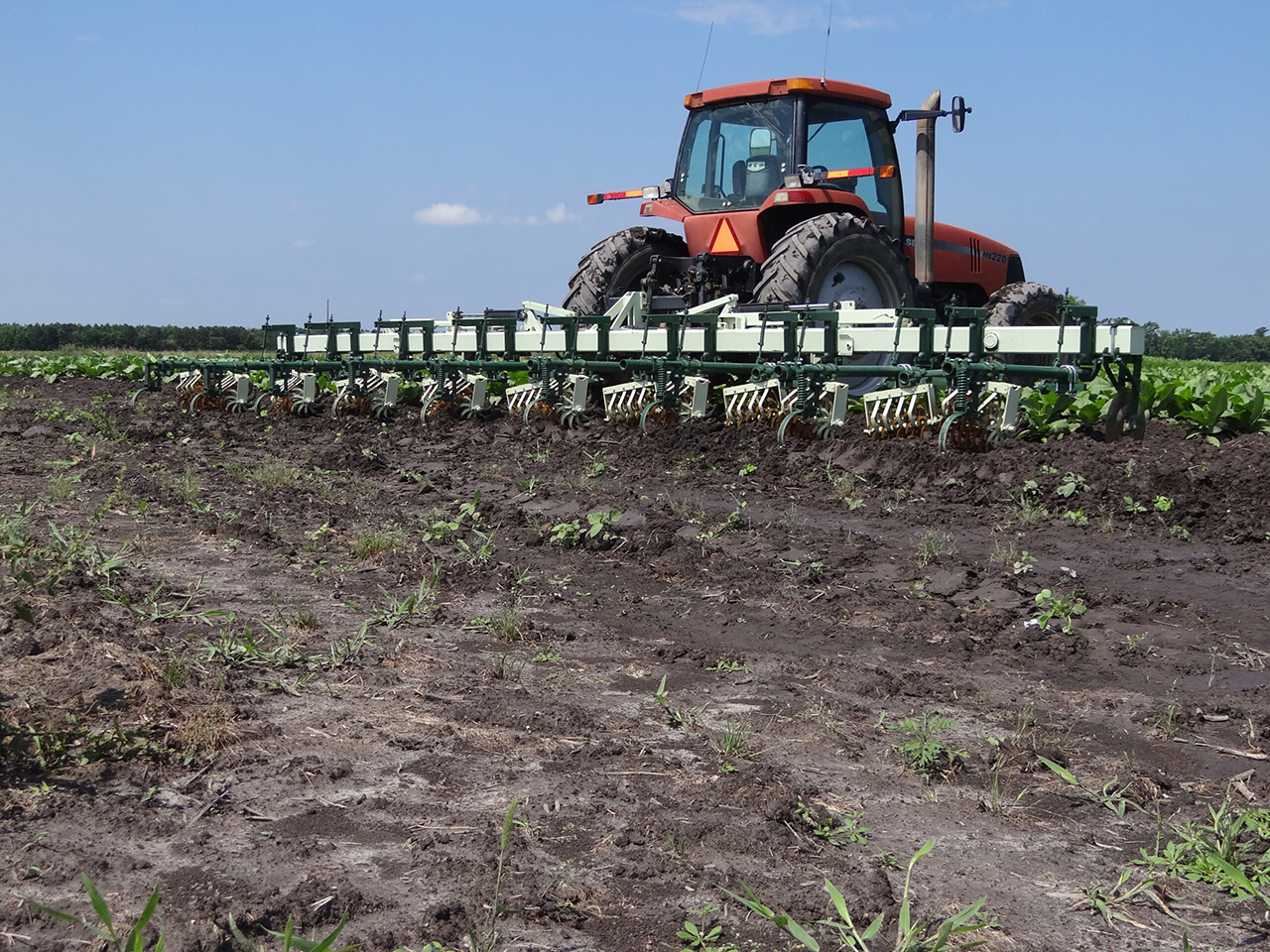

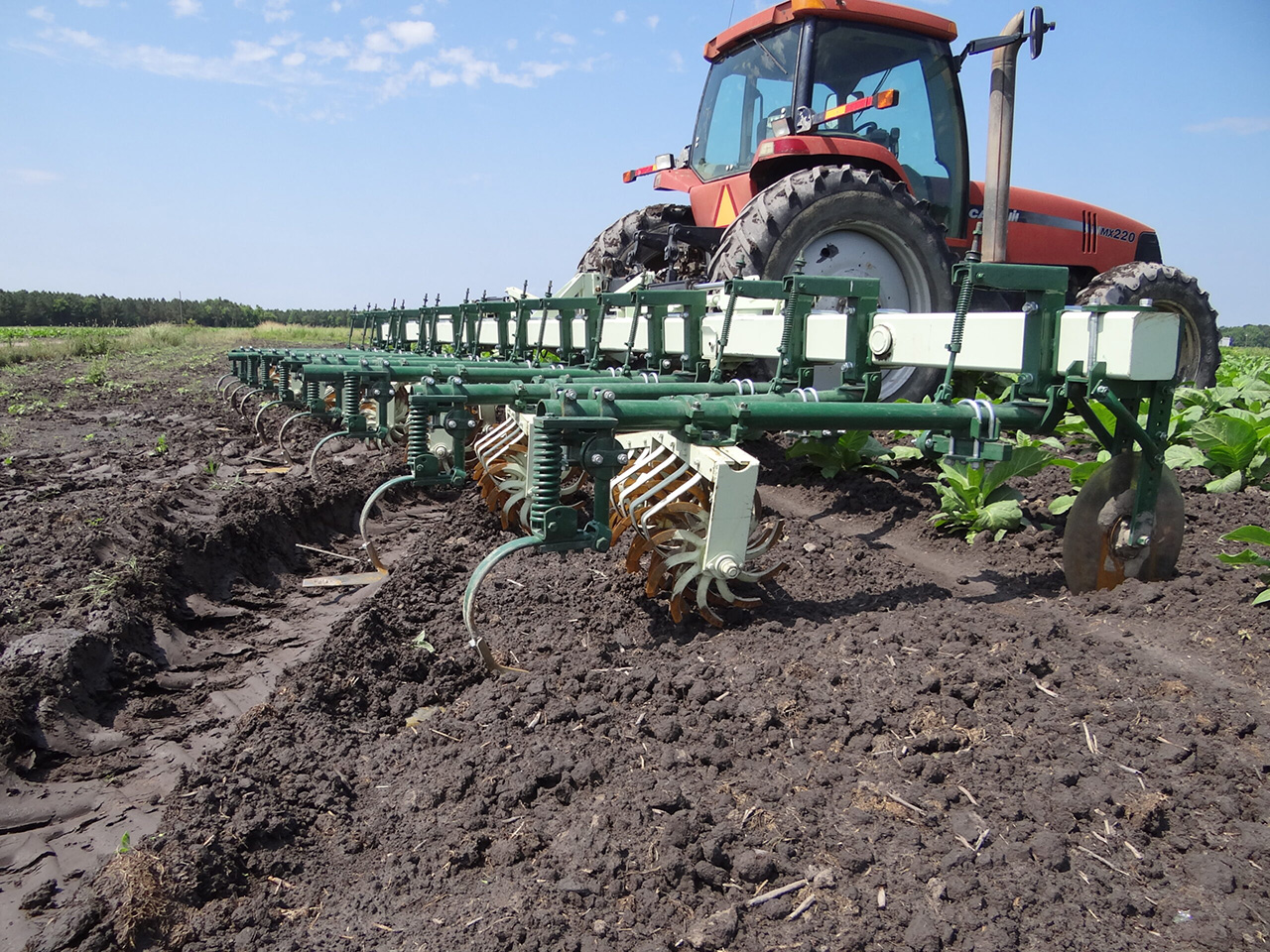

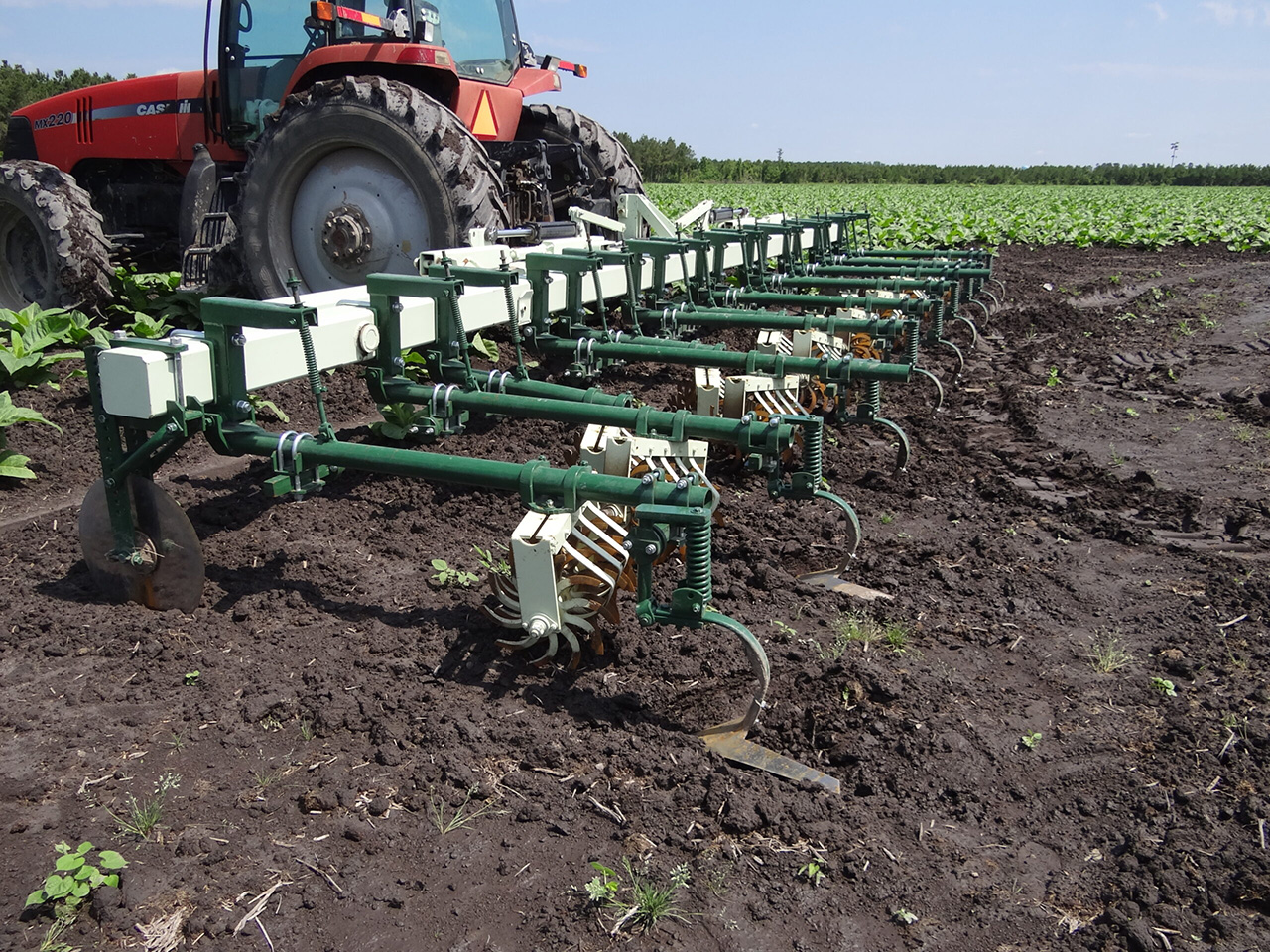

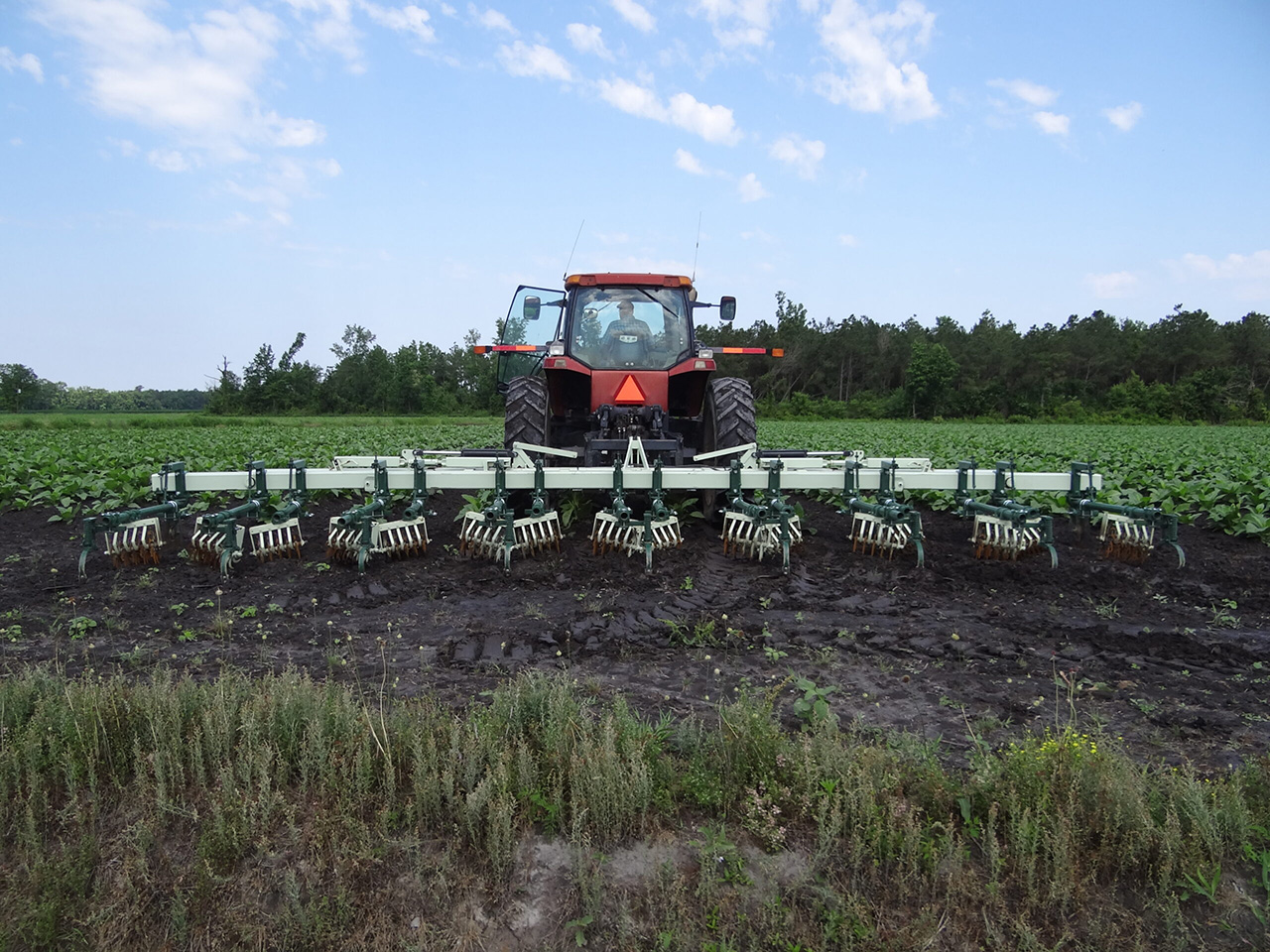

Speed Wheel Cultivator

Speed Wheel Cultivator

$1.00

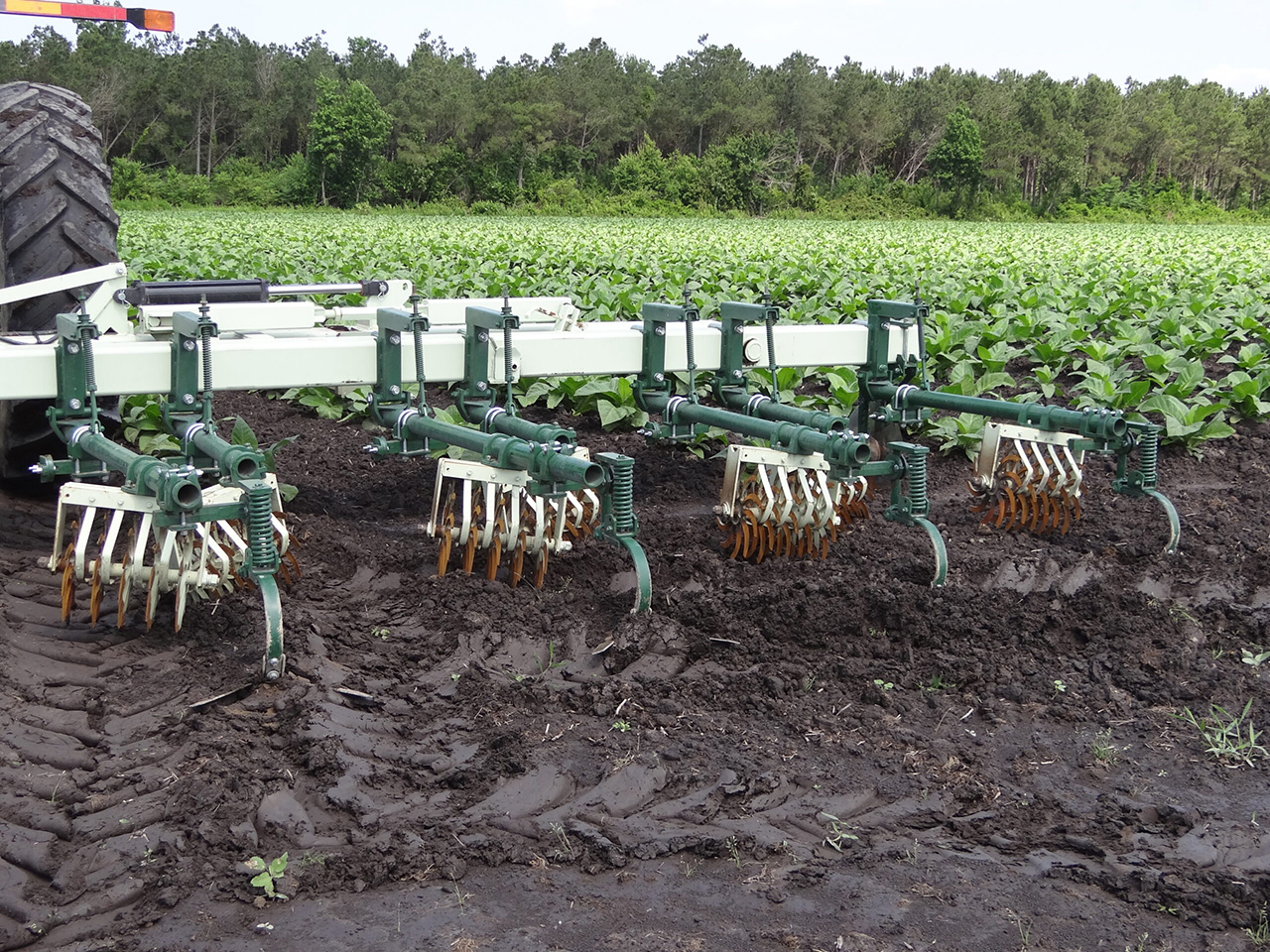

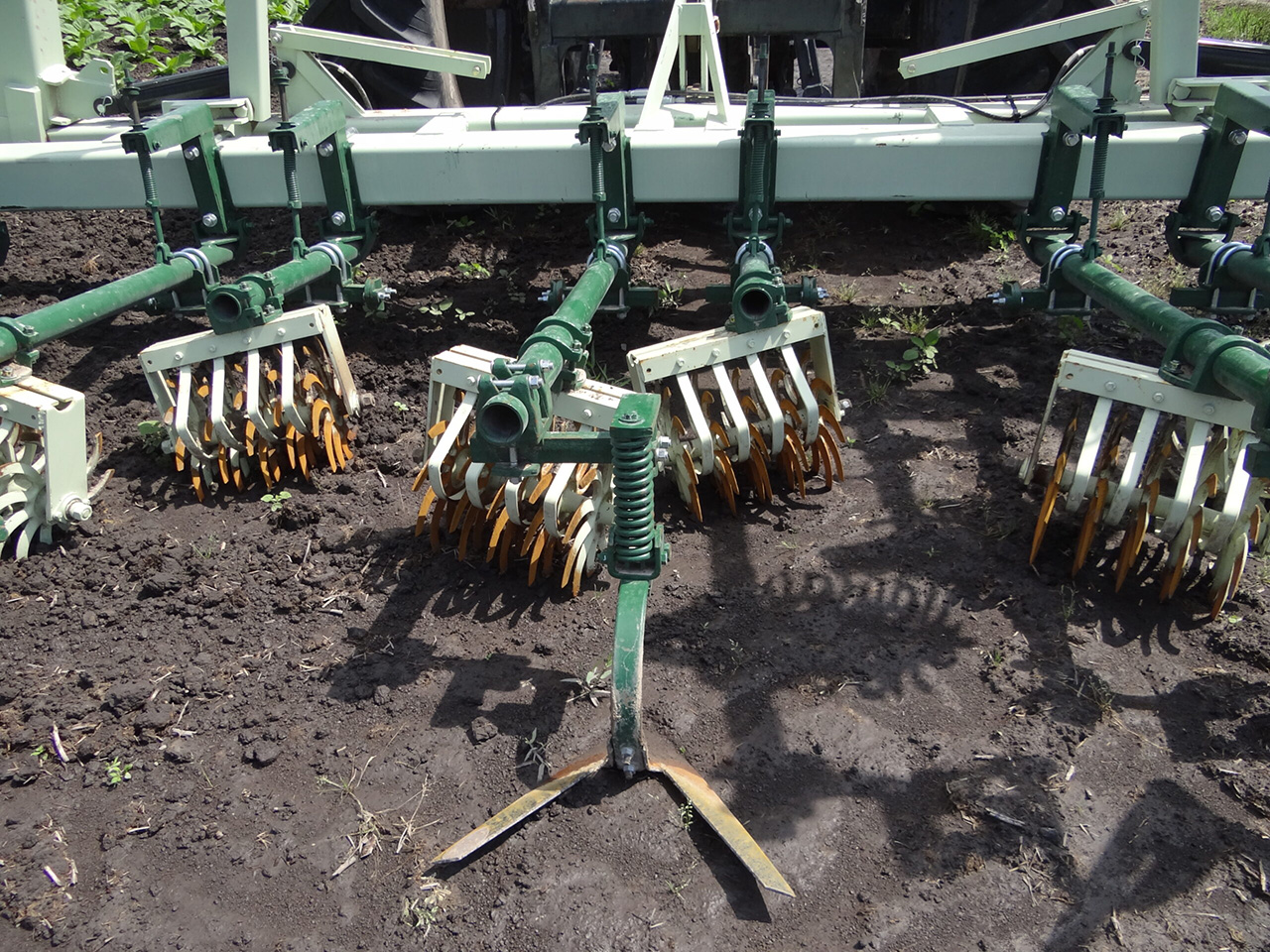

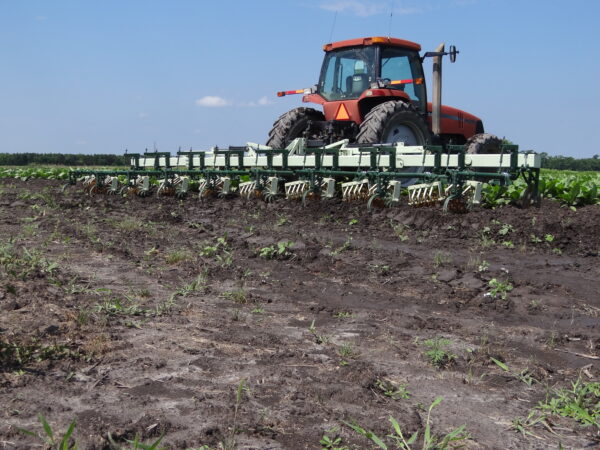

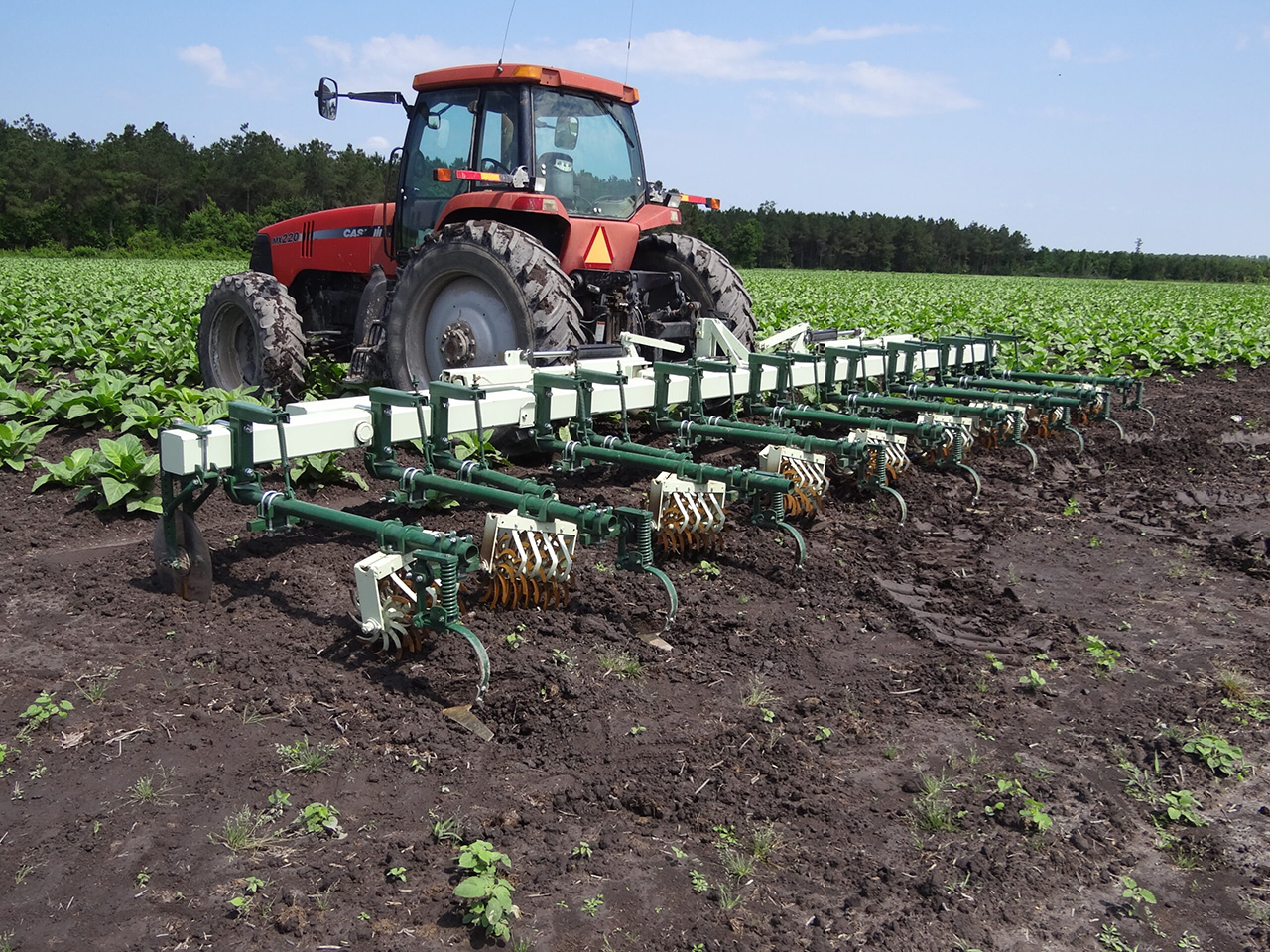

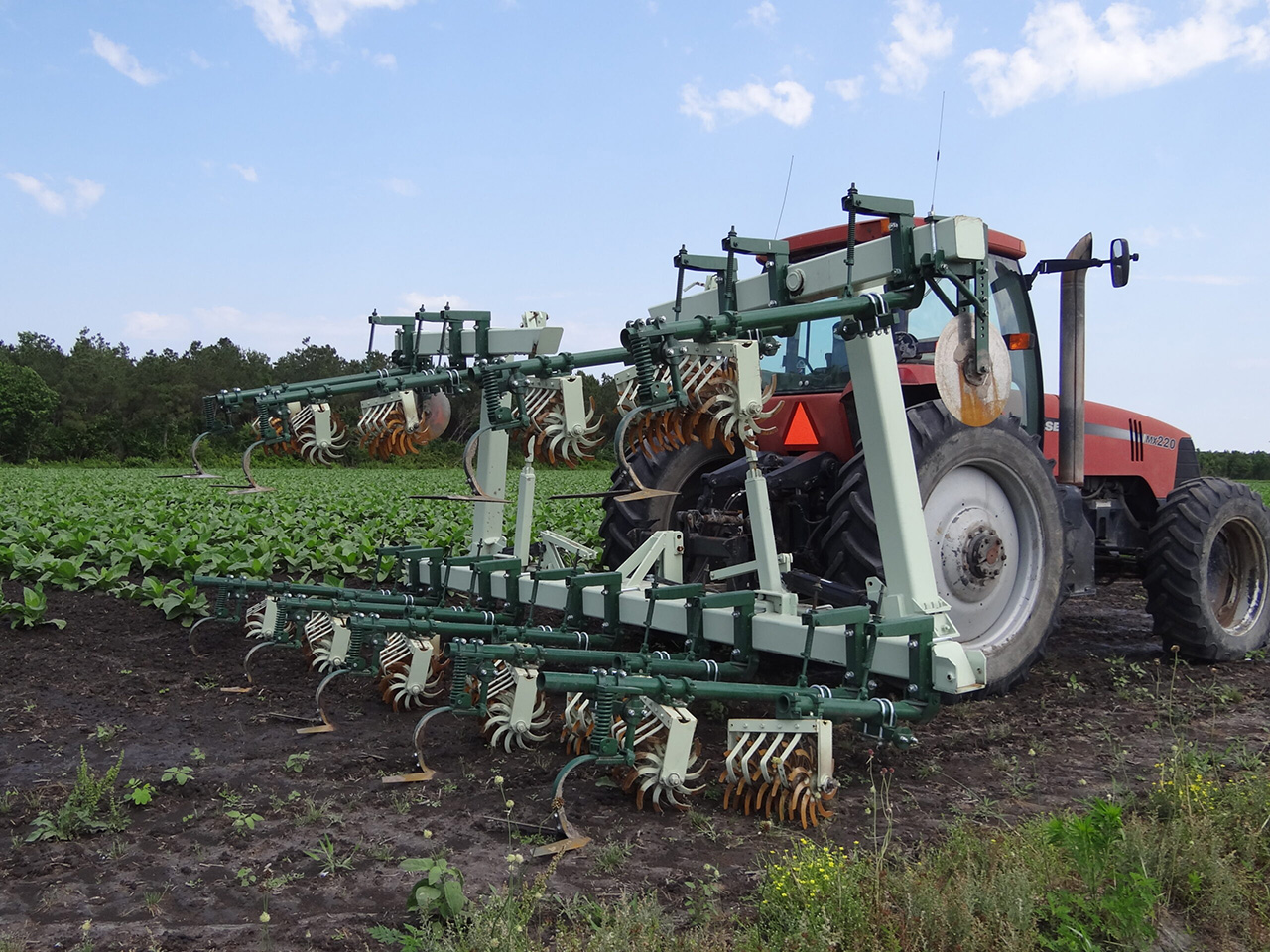

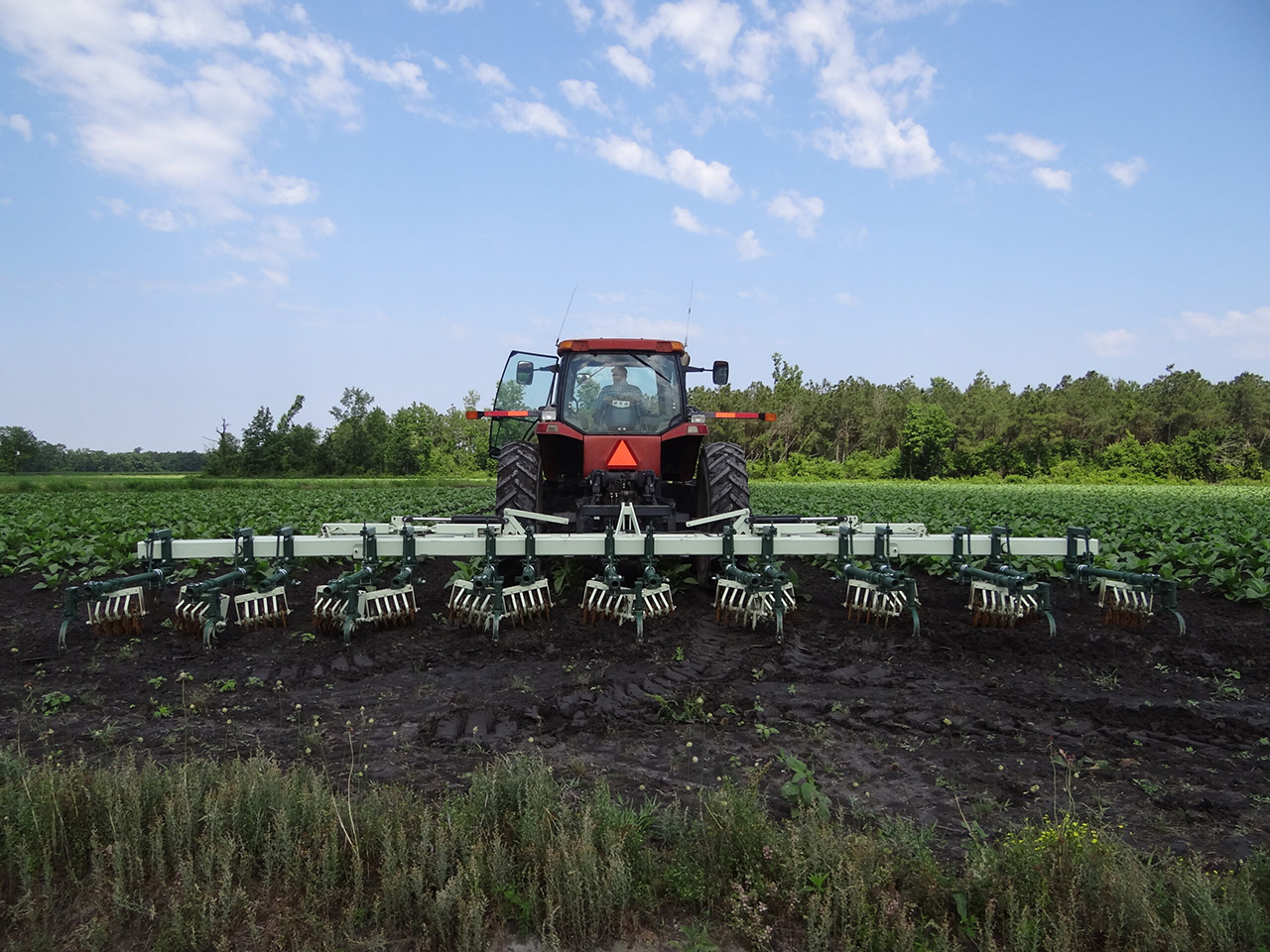

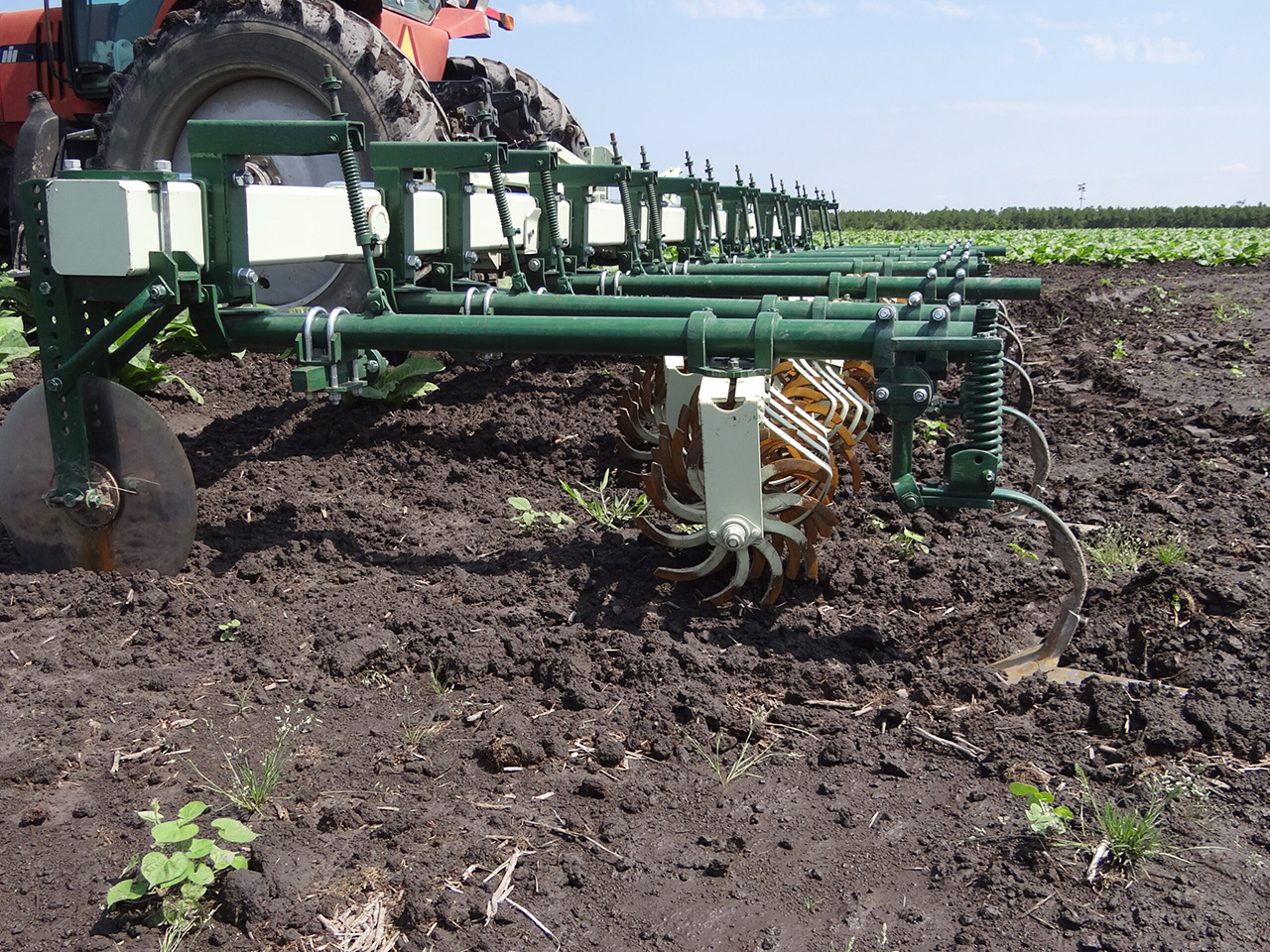

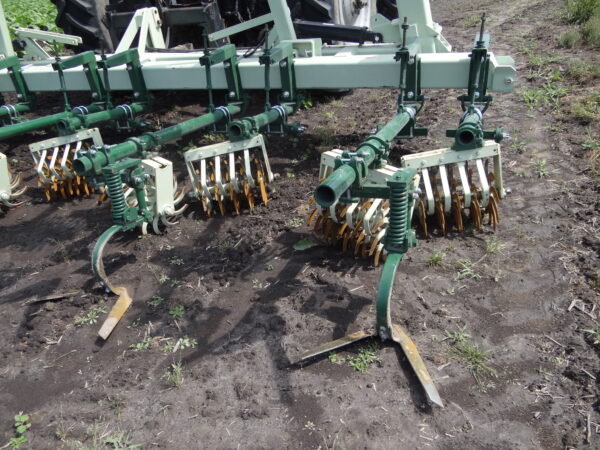

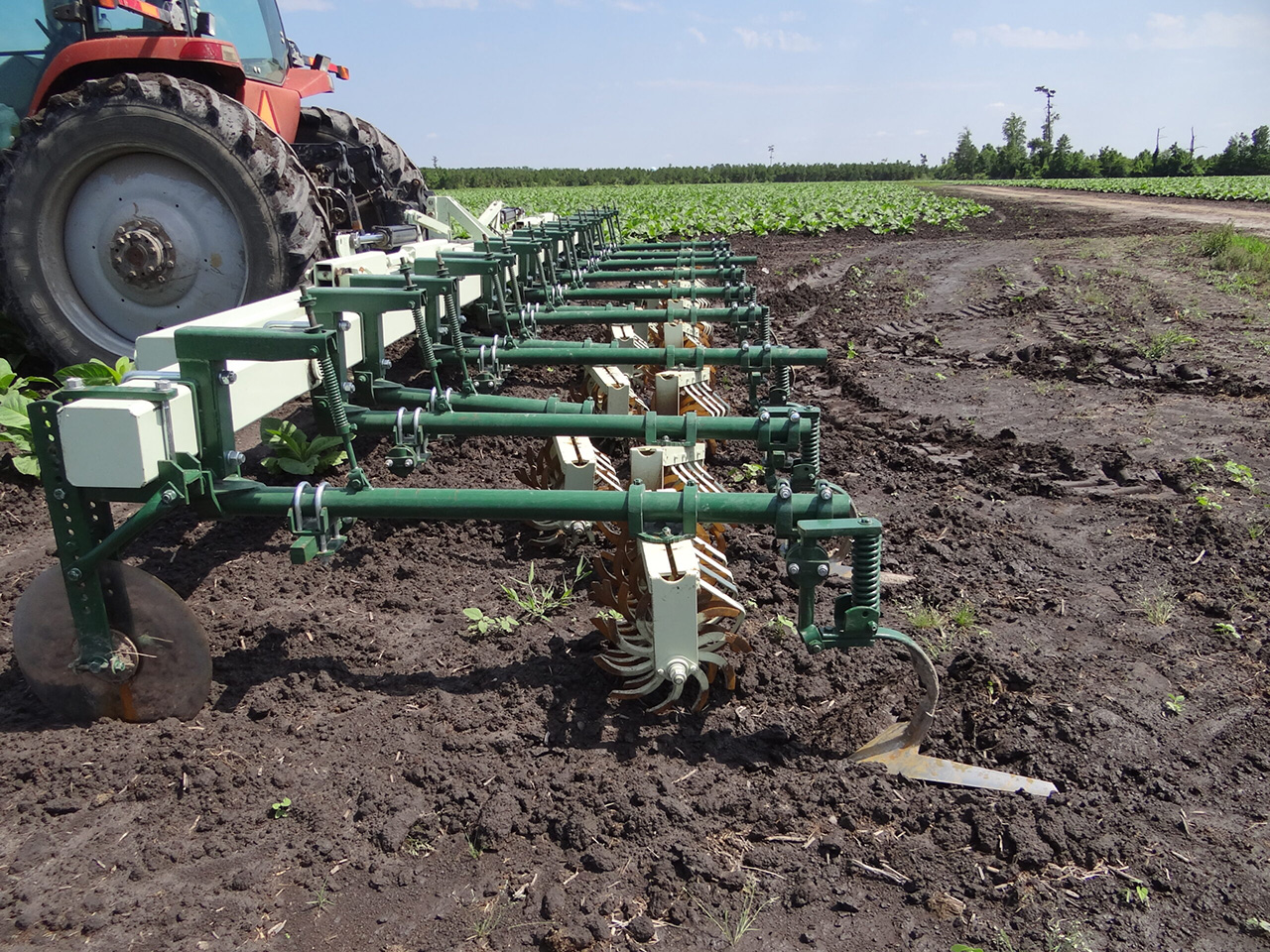

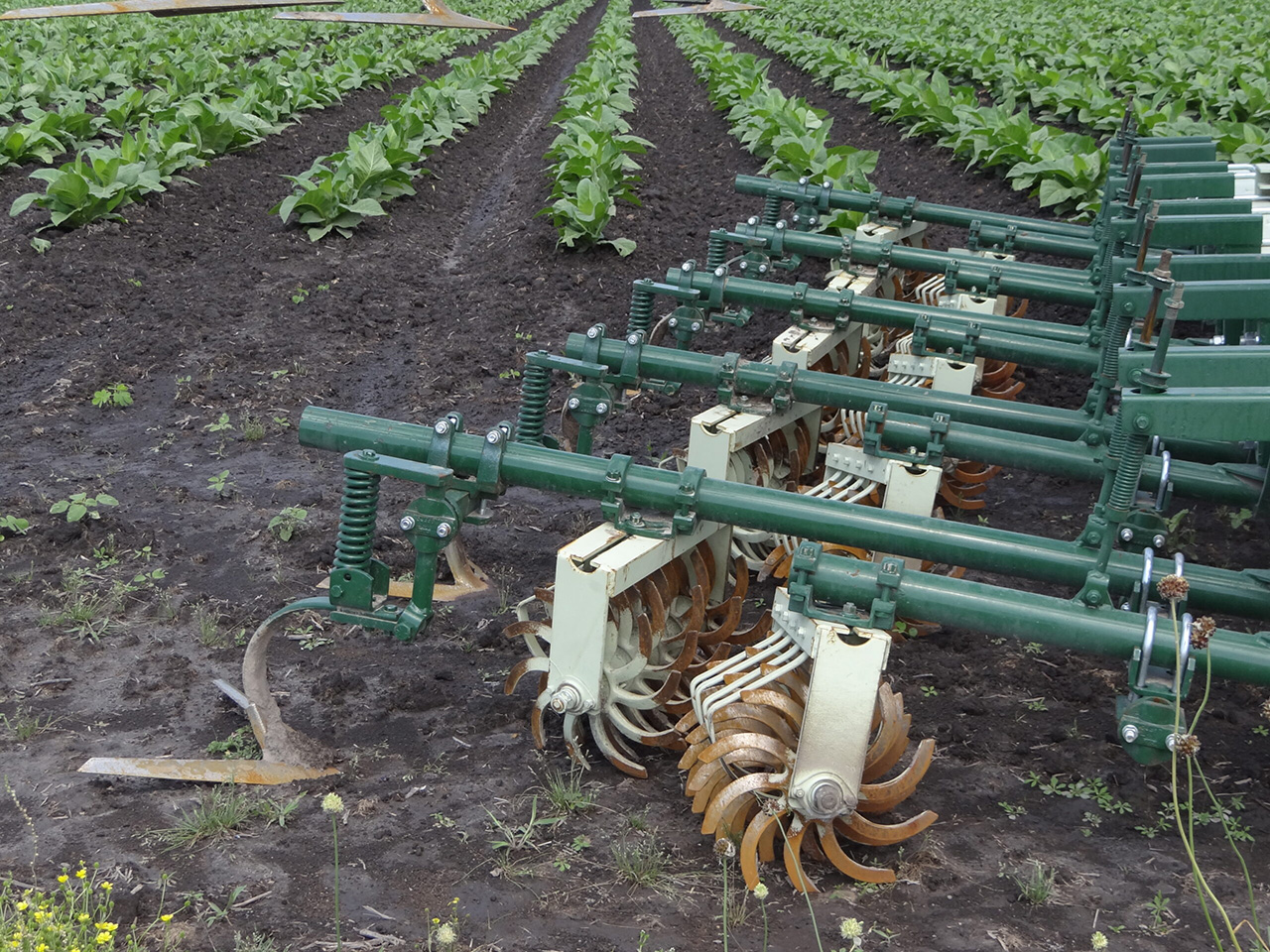

Exclusive patented KMC Wedge-Tine spider wheels eliminate time consuming switching of the left and right gangs common to other rolling cultivators.  You adjust the gangs for different positions to move soil to or away from the crop, build, work, rework, or level beds, or to keep the middle clean.

$1.00

Request a Quote

Description

Exclusive patented KMC Wedge-Tine spider wheels eliminate time consuming switching of the left and right gangs common to other rolling cultivators.  You adjust the gangs for different positions to move soil to or away from the crop, build, work, rework, or level beds, or to keep the middle clean.
Key Features

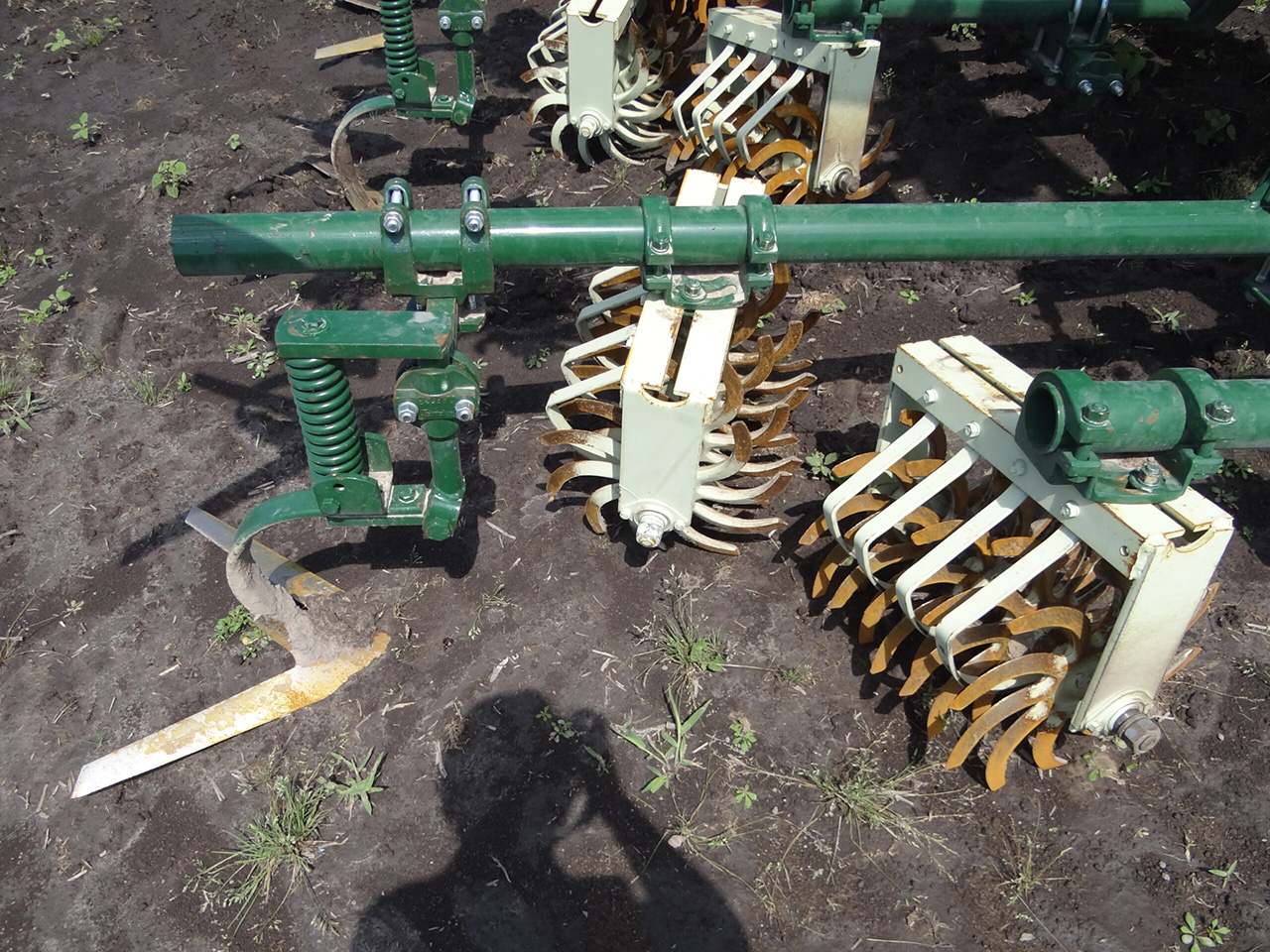

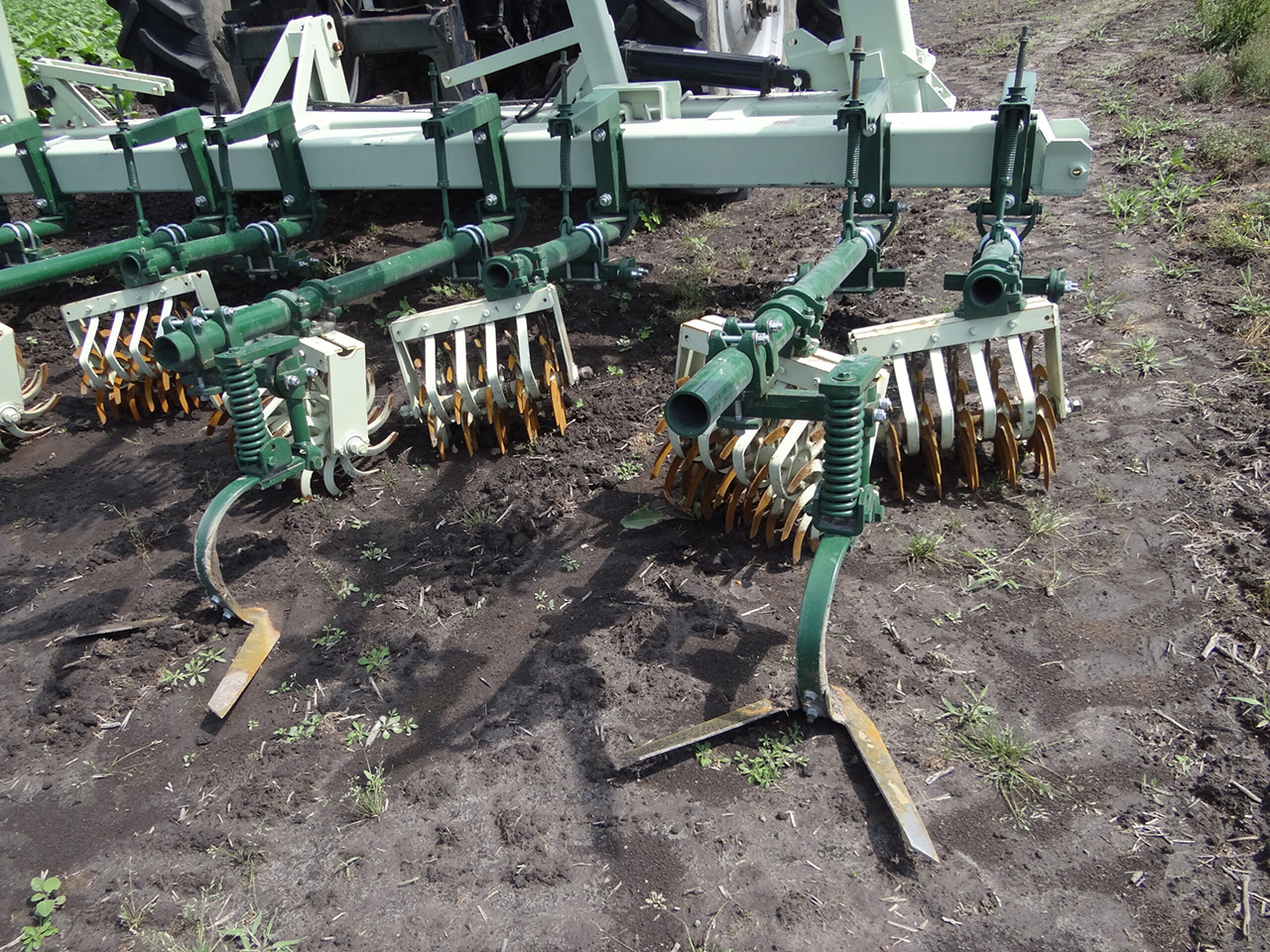

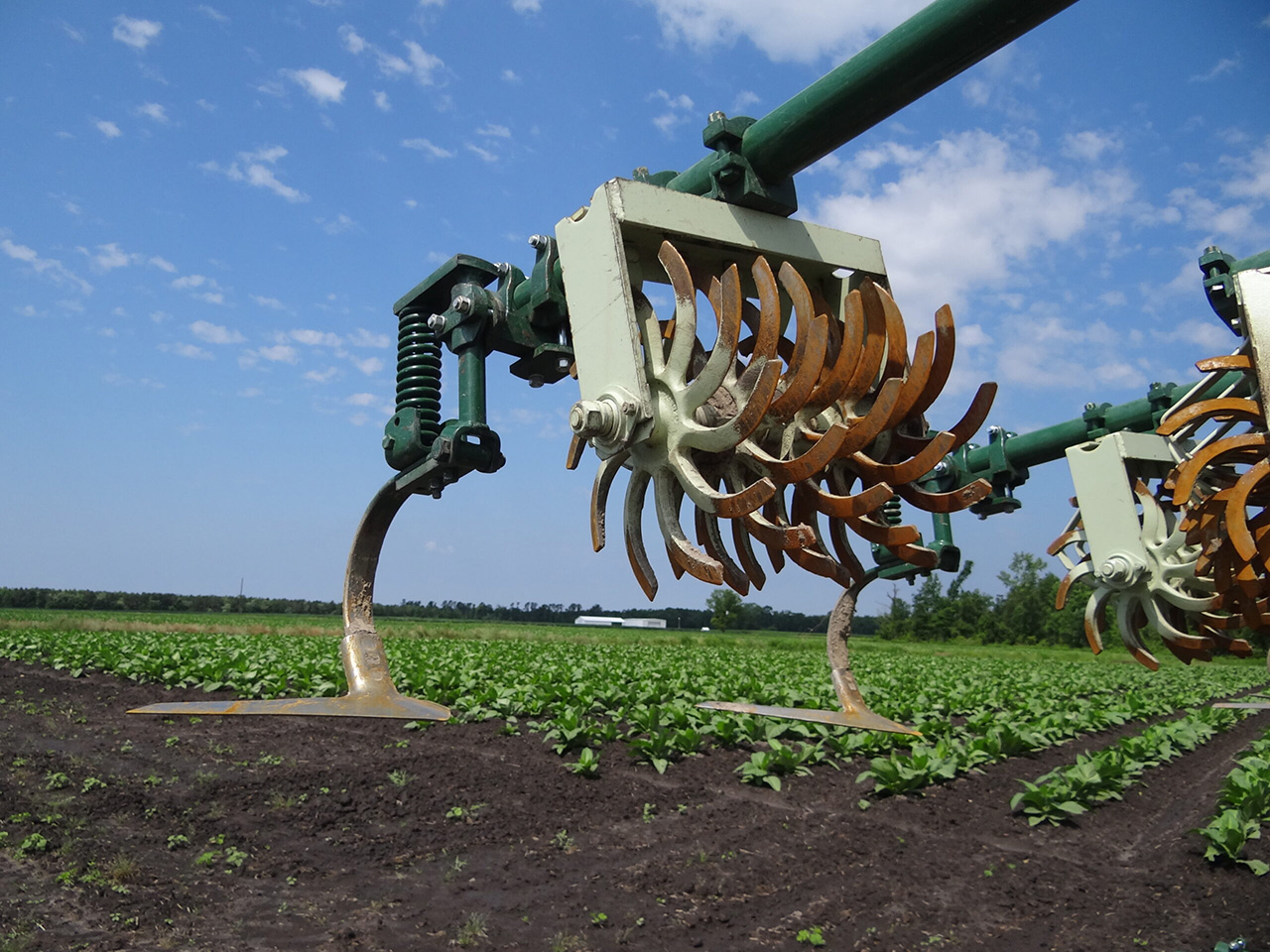

  • 15″ Wedge-Tine spiders are standard
  •  14 1/2″ Slicler-Tine spiders or 16″ Notched Discs can be substituted at no extra charge
  •  3, 4, or 5 spider gangs for wide or narrow spacing
  •  2, 4, 6, 8, and 12 row models available
  •  High speed operation (8-10 mph)

Benefits

  • Move soil to or from the crop
  •  Build, work, rework, or level beds
  •  Keep middles clean

Optional Accessories

  • Fertilizer Attachments

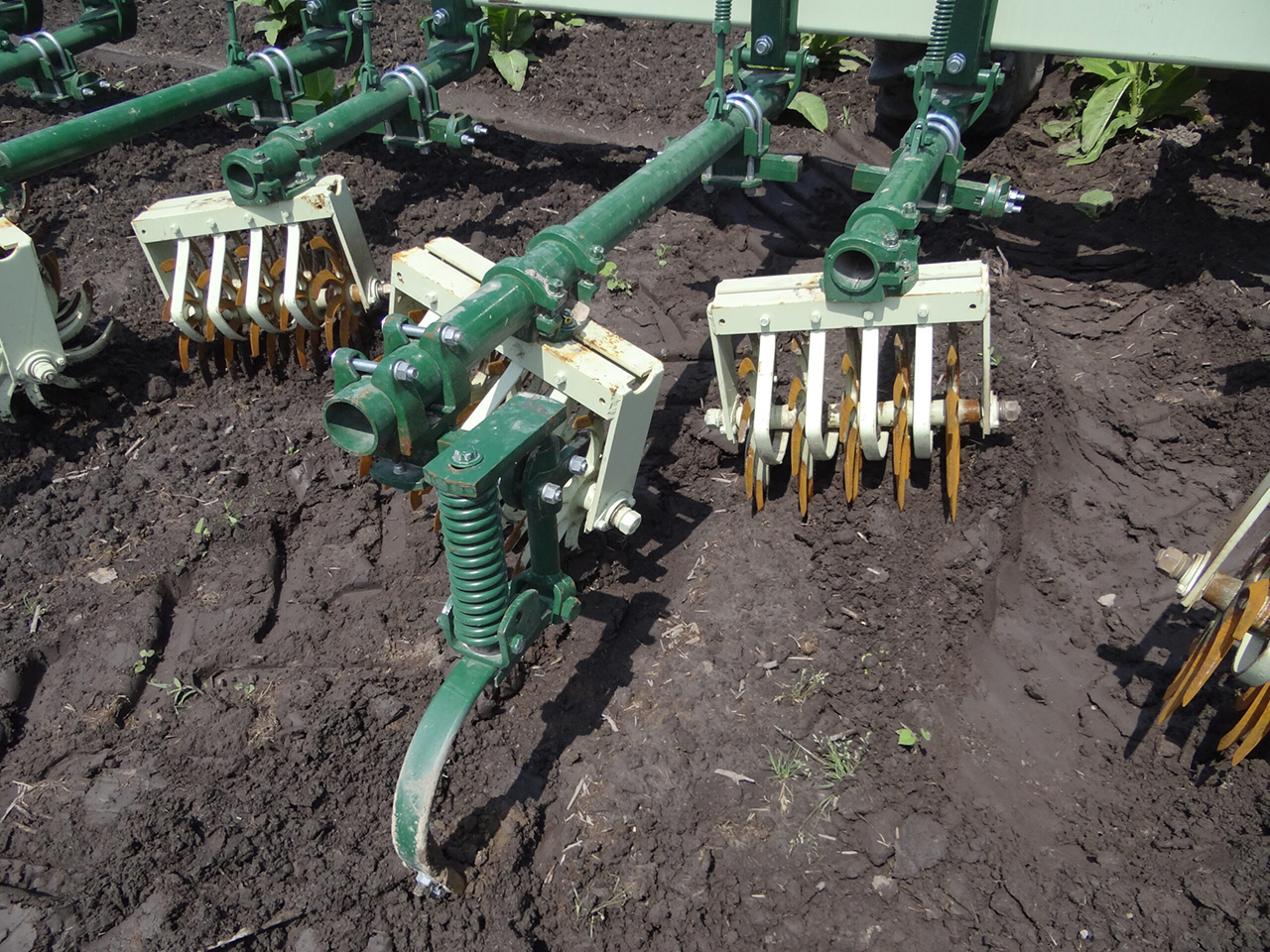

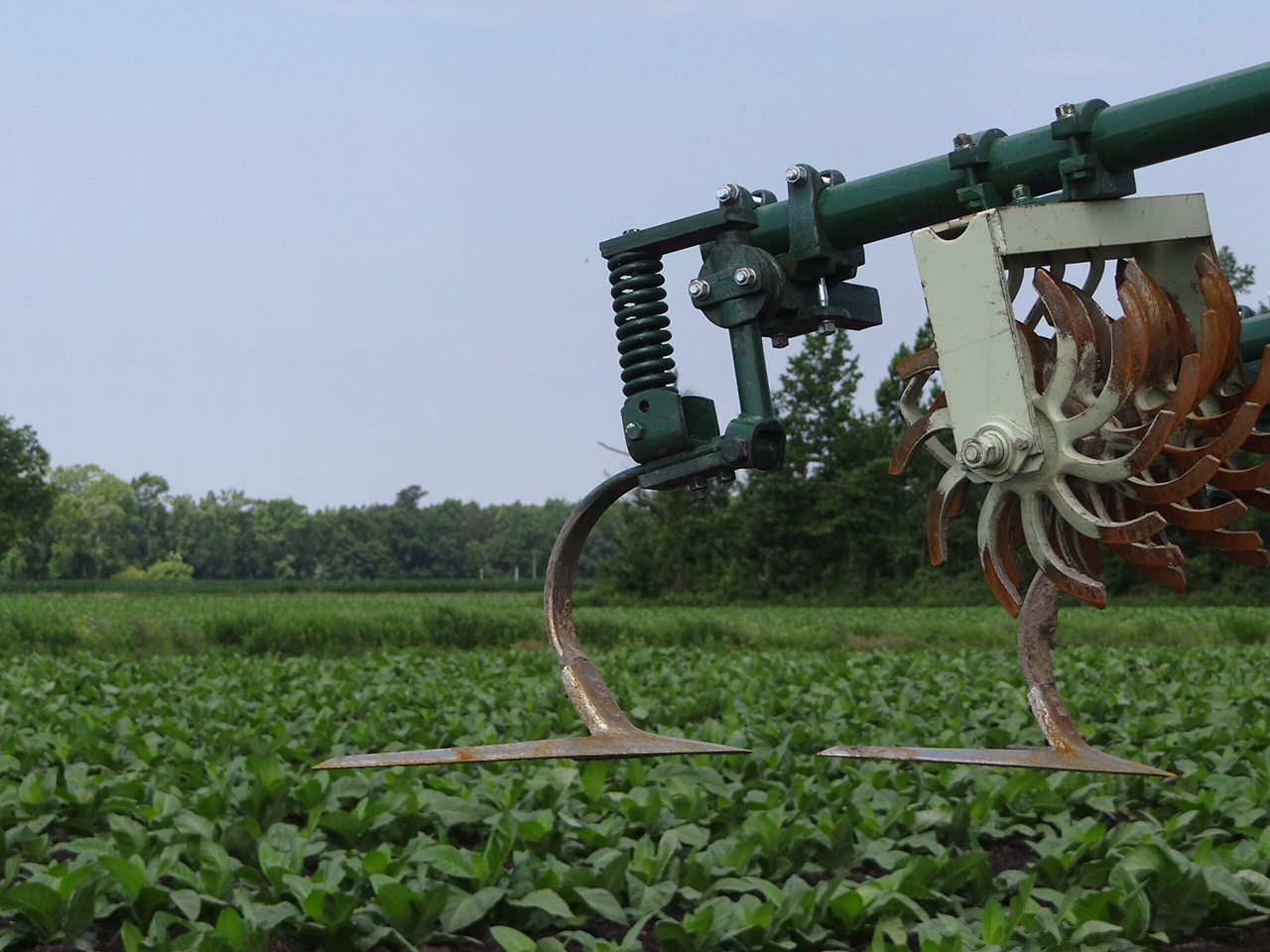

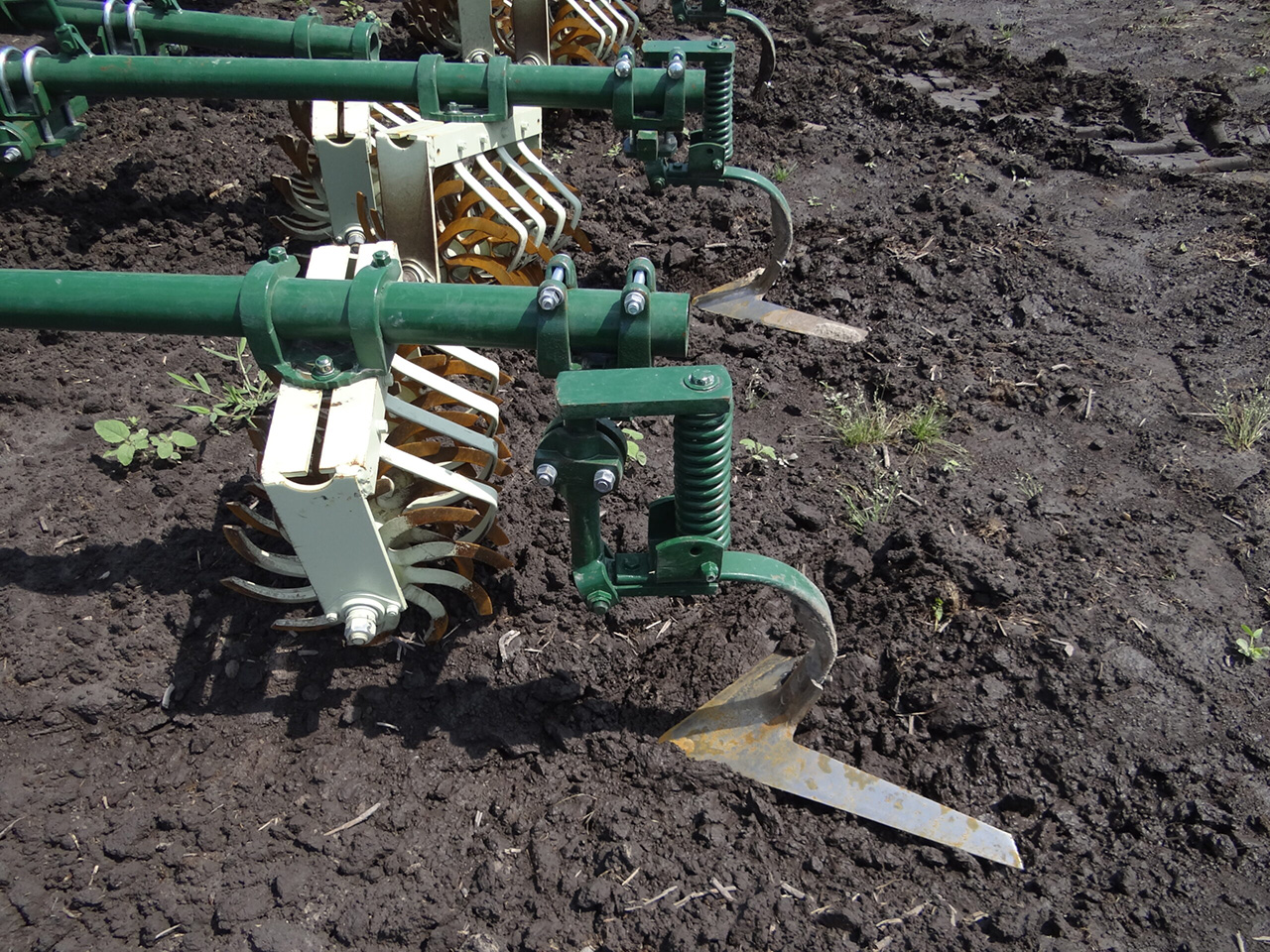

  • Rigid and Compression Spring Shanks
  • Plow Shanks

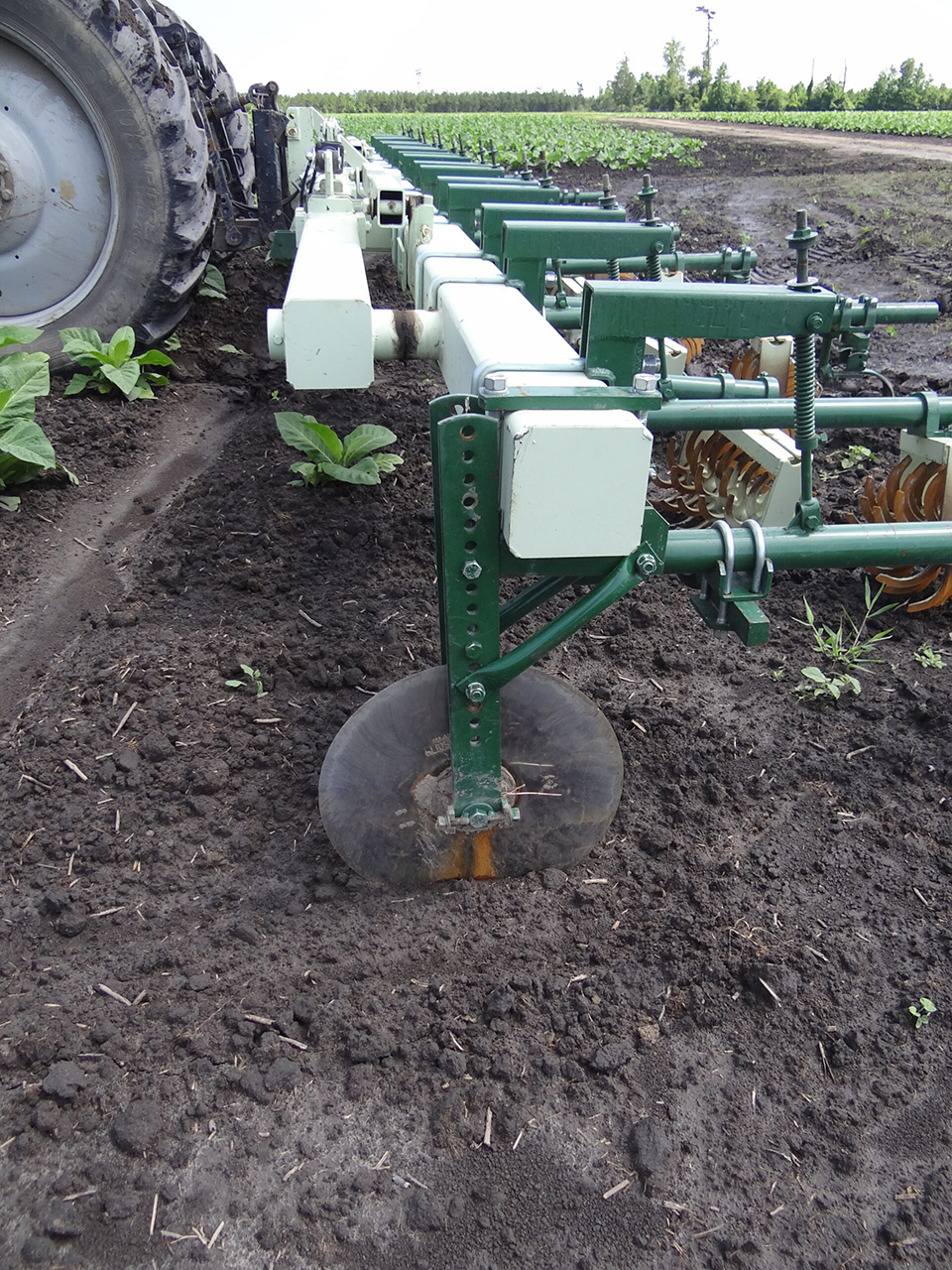

  • Rigid and Spring Loaded Stabilizer Coulters
  • Gauge Wheels

Available Models

Model #

Description

Weight (IBS)

04-104(7X4)-2

2 Row Mounted on 104" (7X4X1/4") Tool Bar with 4-Spider Rear Gangs

780

04-168(7X4)-4

4 Row Mounted on 168" (7X4X1/4") Tool Bar with 4-Spider Rear Gangs

1,382

04-208(7X4)-4

4 Row Tobacco Mounted on 205" (7X4X1/4") Tool Bar with 4-Spider Rear Gangs

1,382

04-188(7X4)-6

6 Row Mounted on 188" (7X7X1/4") Tool Bar with 4-Spider Rear Gangs (For 28"-32" Rows)

1,944

04-248(7X7)-6

6 Row Mounted on 248" (7X7X1/4") Tool Bar with 4-Spider Rear Gangs

1,944

04-248(7X7)-8

8 Row Mounted on 248" (7x7X1/4") Tool bar with 4-Spider Rear Gangs (For 28"-32")

2,607

04-328(7X7)-8

6 Row Mounted on 328" (7X7X1/4") Tool Bar with 4-Spider Rear Gangs

2,759

12-FFSW(36)-8

8 Row Cultivator Mounted on Hydraulic (7"X7") Flat-Fold Tool Bar with 171" Main Section, 77 5/8" Wings, 4-Spider Gangs 9For 38" Rows Only)

3,435

12-FFSW(36)-8

8 Row Cultivator Mounted on Hydraulic (7"X7") Flat-Fold Tool Bar with 188 1/2" Main Section, 77 5/8" Wings, 4-Spider Gangs (For 38" Rows Only)

3,678

12-FFSW(40)-8

8 Row Cultivator Mounted on Hydraulic (7"X7") Flat-Fold Tool Bar with 182" Main Section, 77 5/8" Wings, 4-Spider Gangs (For 40" Rows)

3,649

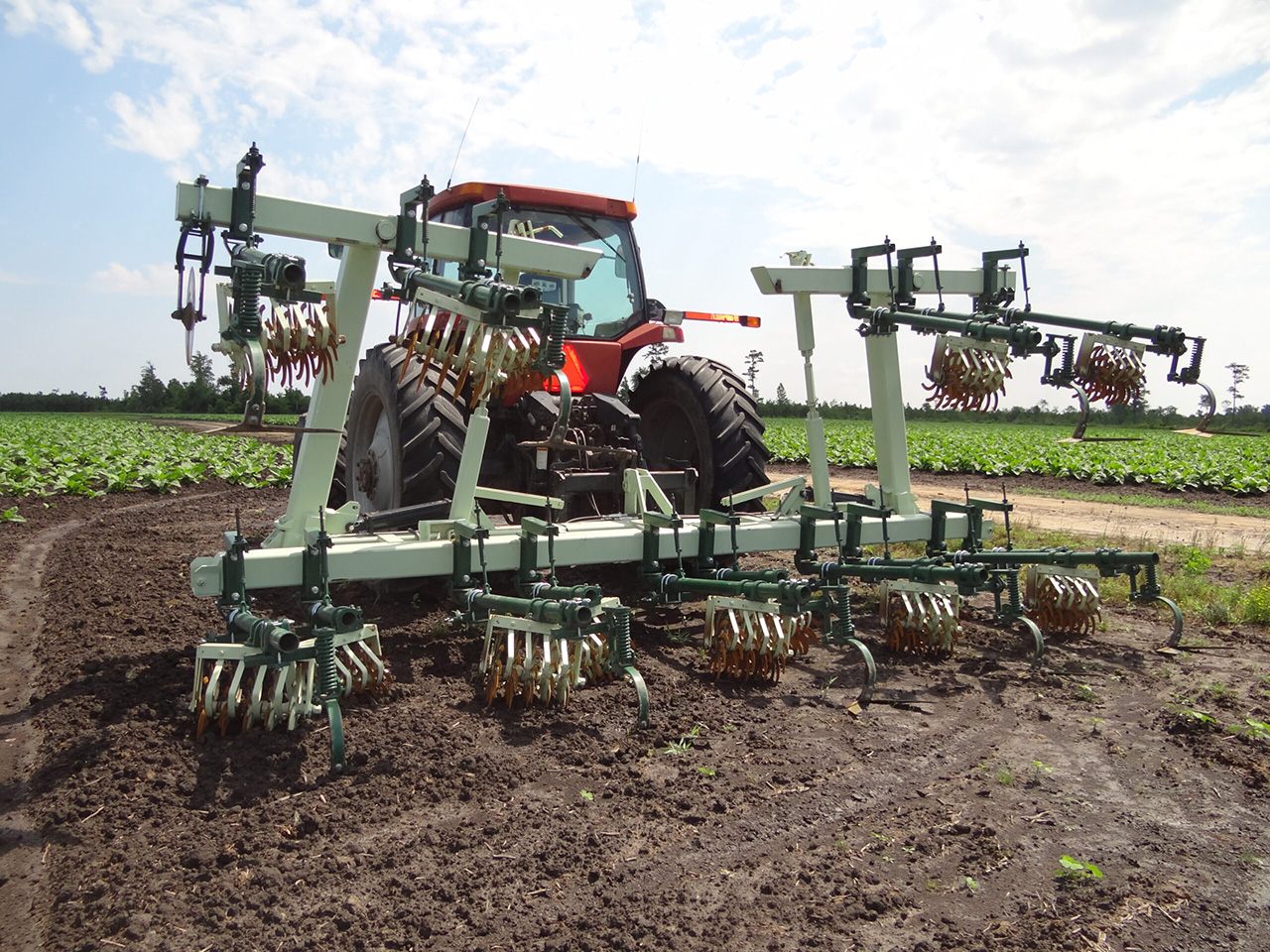

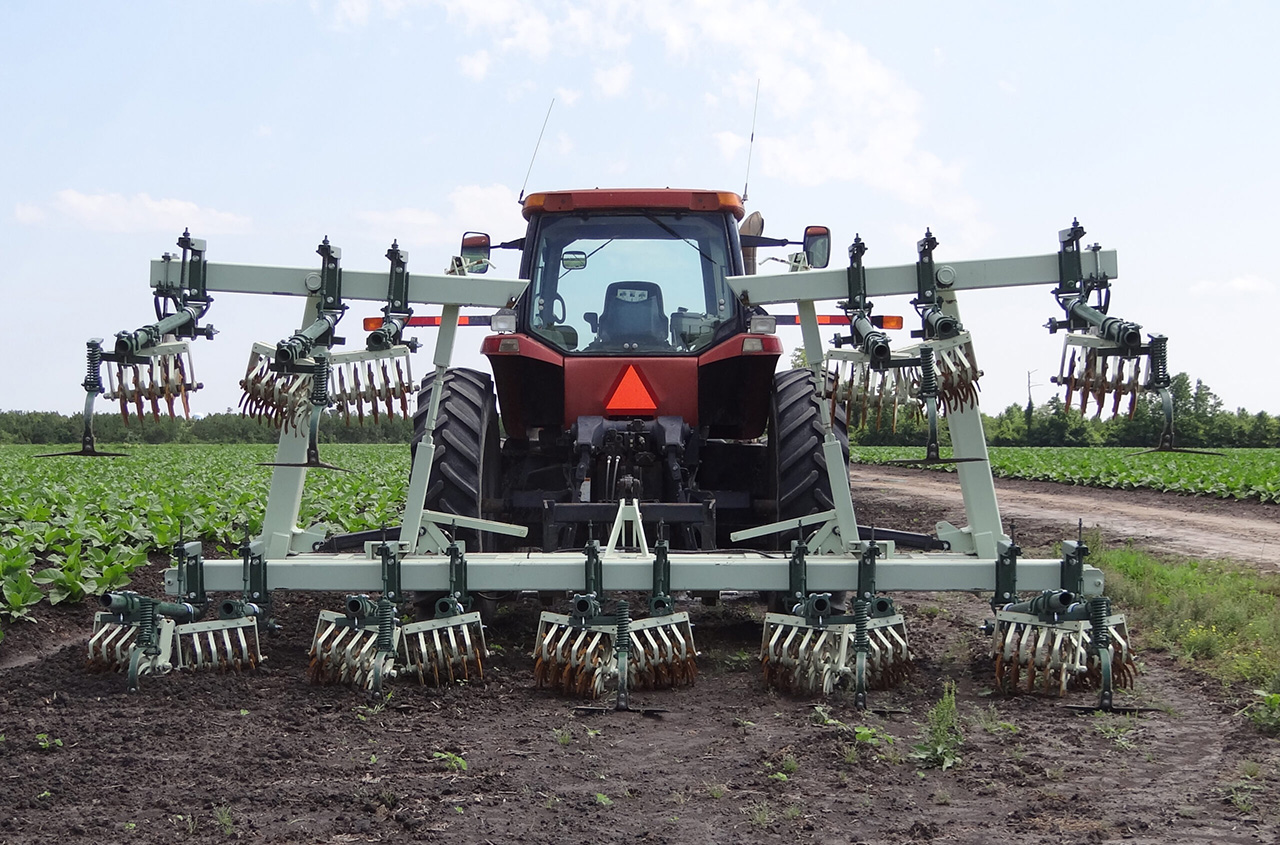

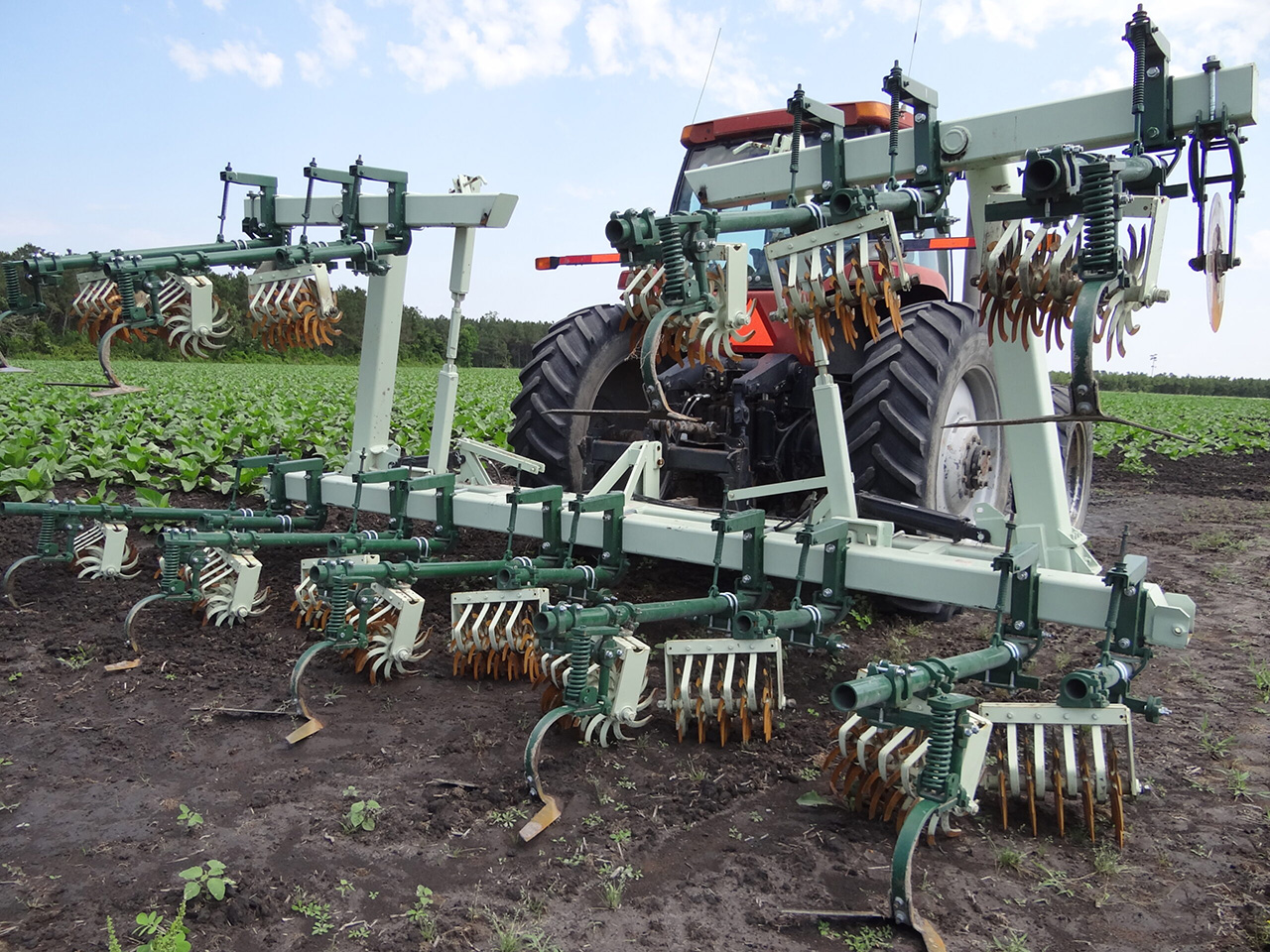

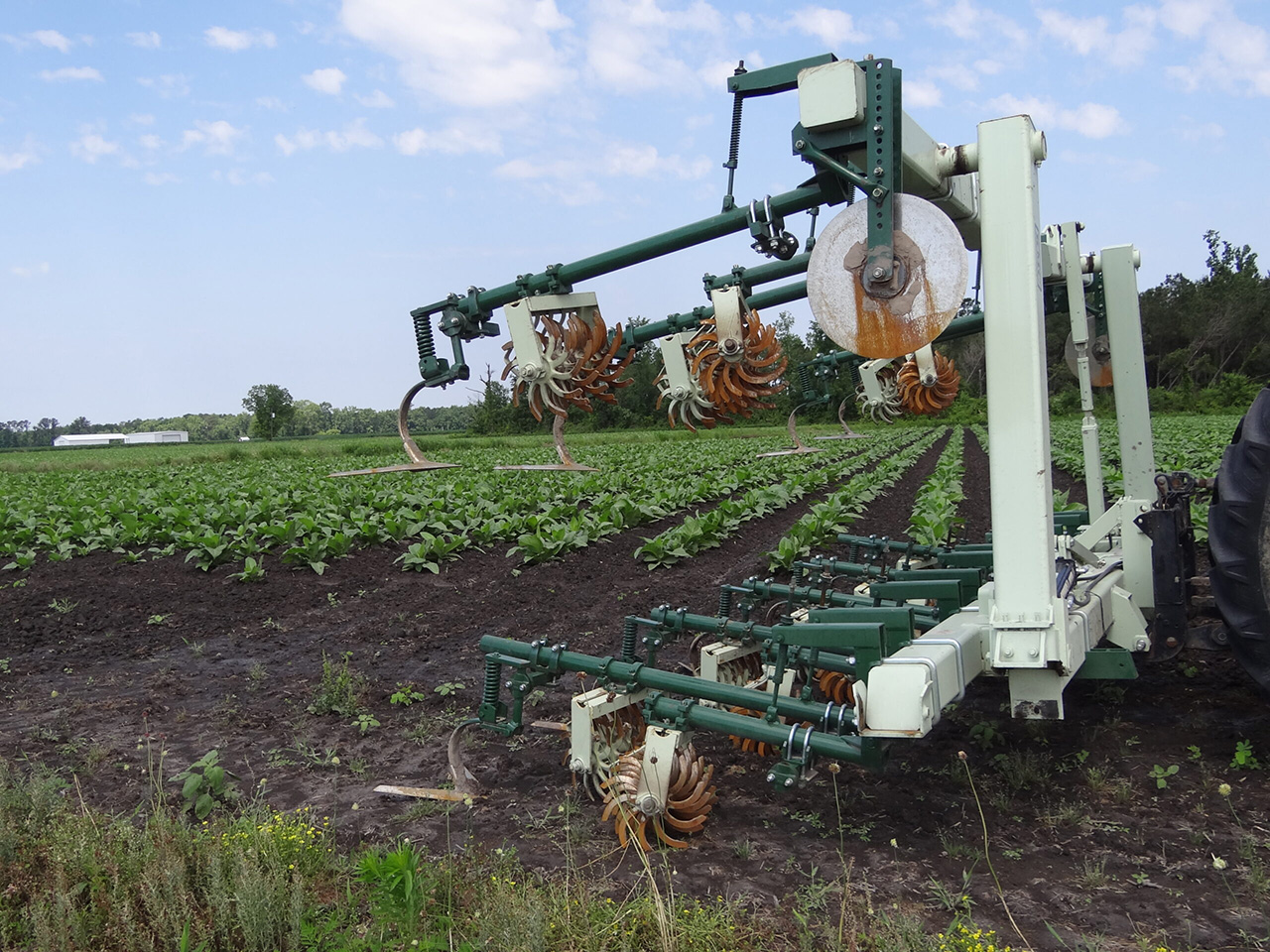

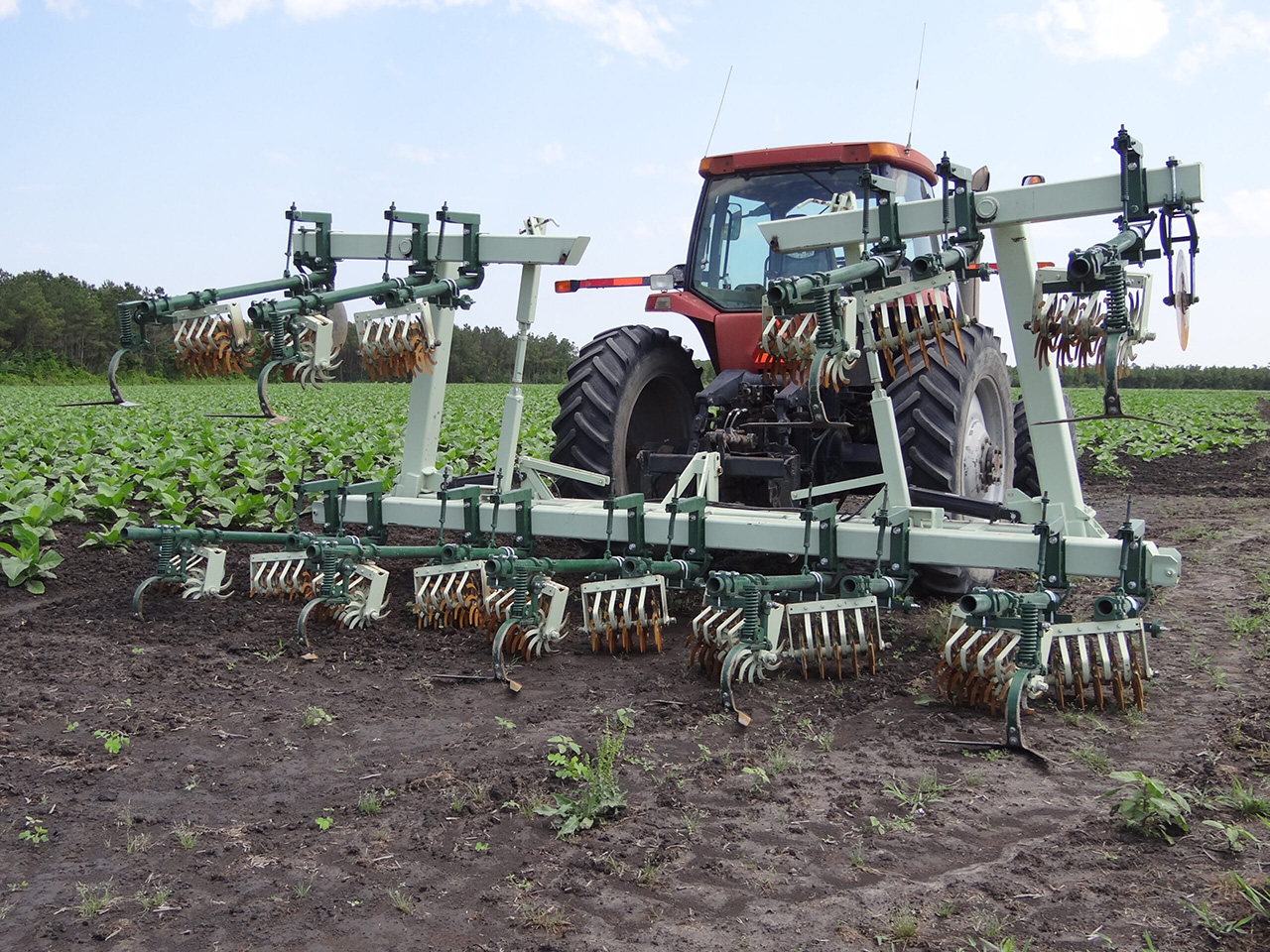

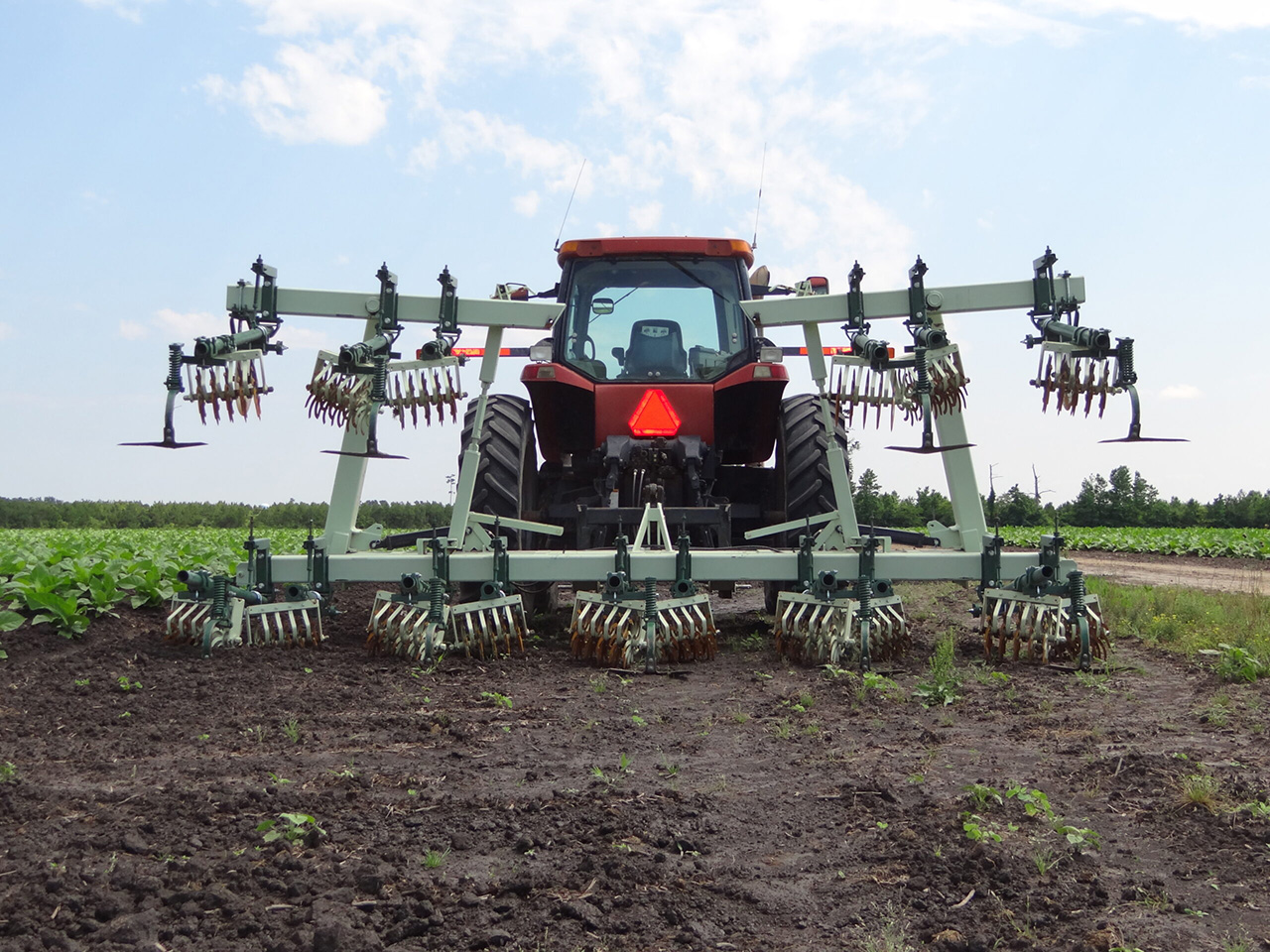

04-SFSW(40-42)-8

Row Cultivator Mounted on Hydraulic (7"X7") Stack-Fold Tool bar with 211 1/4" Main Section and 82 5/8" Wings, 4-Spider Gangs (For 40"-42" Rows)

4,614

04-SFSW(44-48)-8

Row Cultivator Mounted on Hydraulic (7"X7") Stack-Fold Tool Bar with 211 1/4" Main Section and 82 5/8" Wings, 4-Spider Gangs.

5,208

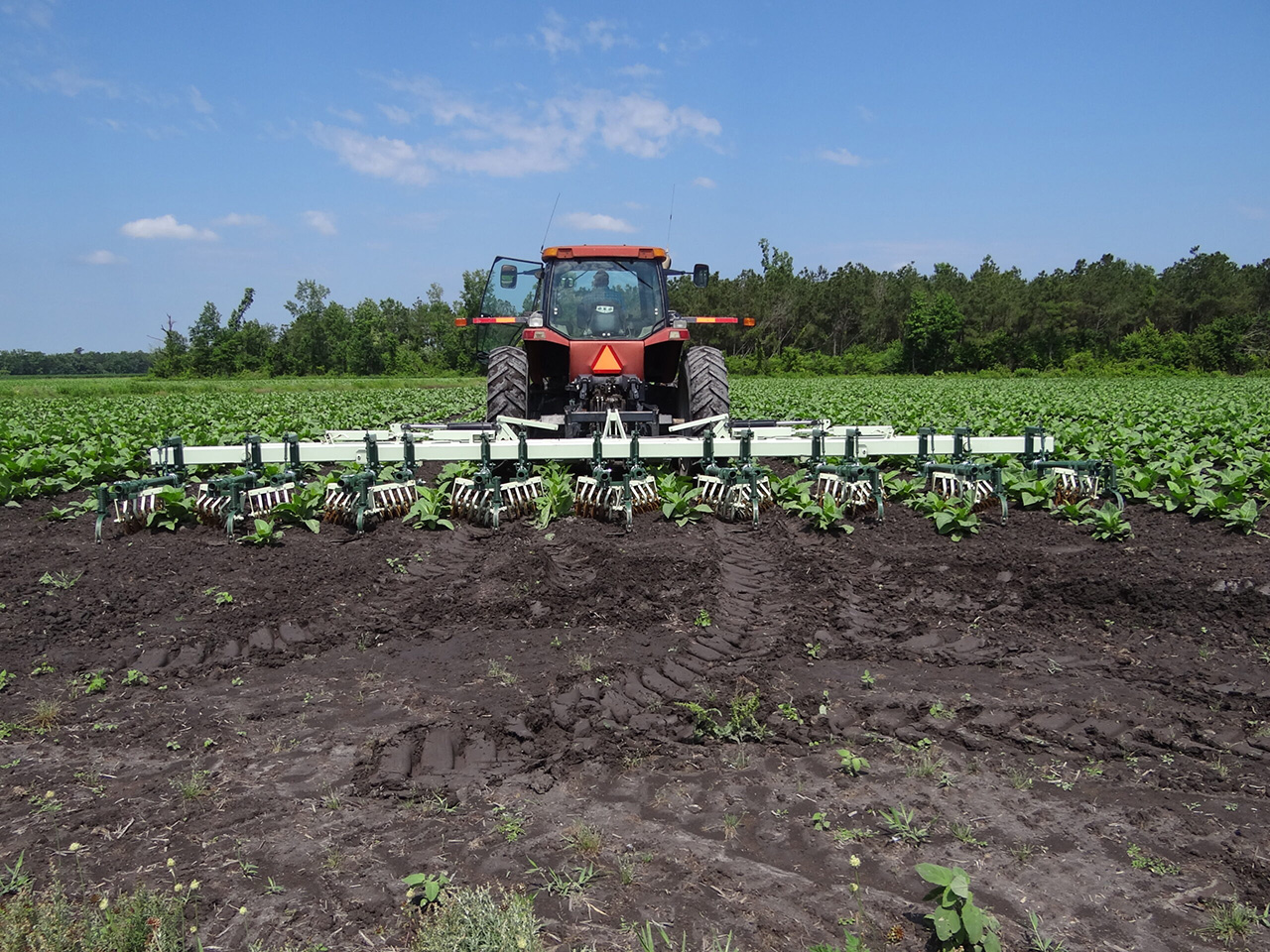

12-FFSW(30)-12

12 Row Cultivator Mounted on Hydraulic (7"X7") Flat-Fold Tool Bar with 200" Main Section and 77 5/8" Wings, 3-Spider Gangs (For 30" Rows)

4,660

12-FFSW(36)-12

12 Row Cultivator Mounted on Hydraulic (7"X7") Flat-Fold Tool Bar with 244" Main Section, 4-Spider Gangs (For 36" Rows)

5,845
